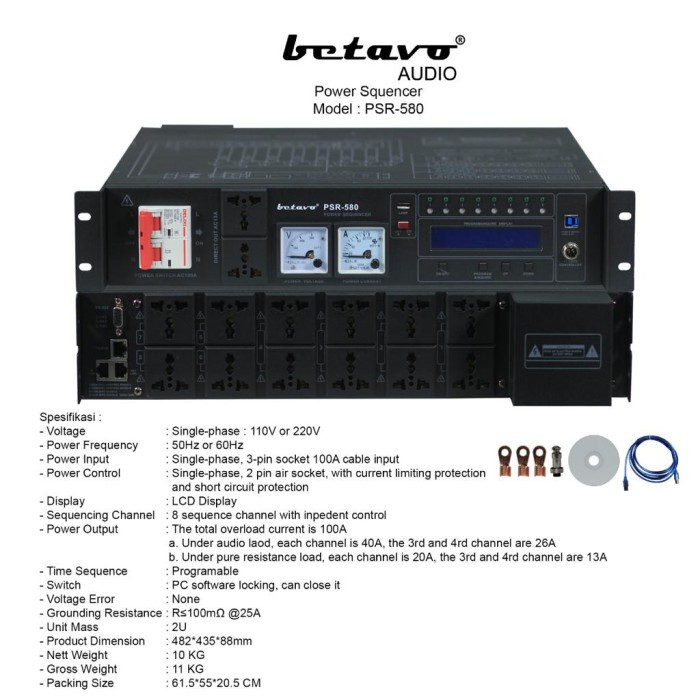

Detail Power Squencer Betavo PSR-580

Spesifikasi :
- Voltage : Single-phase : 110V or 220V
- Power Frequency : 50Hz or 60Hz
- Power Input : Single-phase, 3-pin socket 100A cable input
- Power Control : Single-phase, 2 pin air socket, with current limiting protection
and short circuit protection
- Display : LCD Display
- Sequencing Channel : 8 sequence channel with inpedent control
- Power Output : The total overload current is 100A
a. Under audio laod, each channel is 40A, the 3rd and 4rd channel are 26A
b. Under pure resistance load, each channel is 20A, the 3rd and 4rd channel are 13A
- Time Sequence : Programable
- Switch : PC software locking, can close it
- Voltage Error : None
- Grounding Resistance : R≤100mΩ @25A
- Unit Mass : 2U
- Product Dimension : 482*435*88mm
- Nett Weight : 10 KG
- Gross Weight : 11 KG
- Packing Size : 61.5*55*20.5 CM
