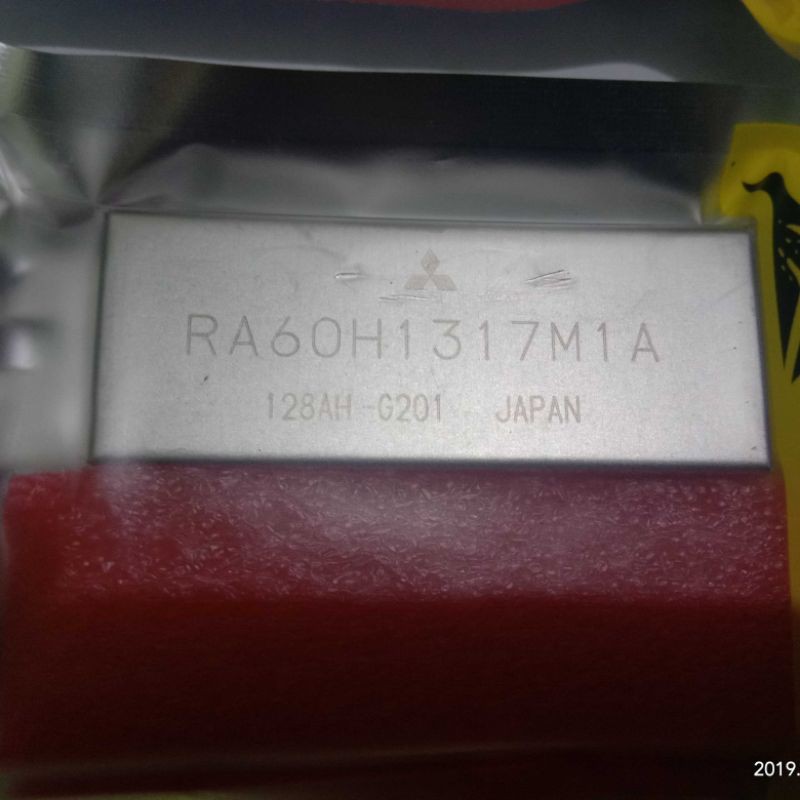

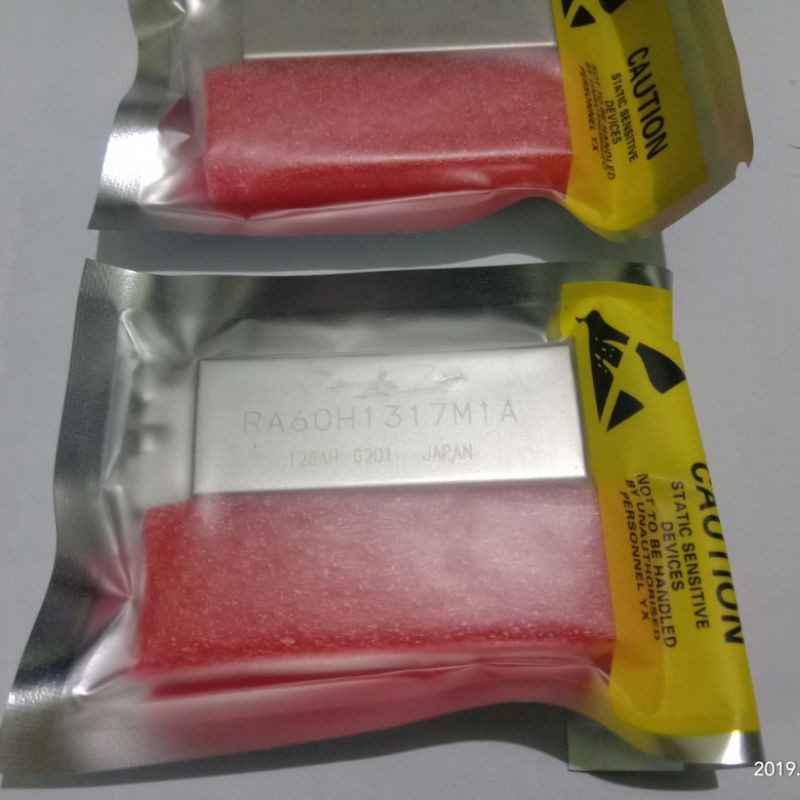

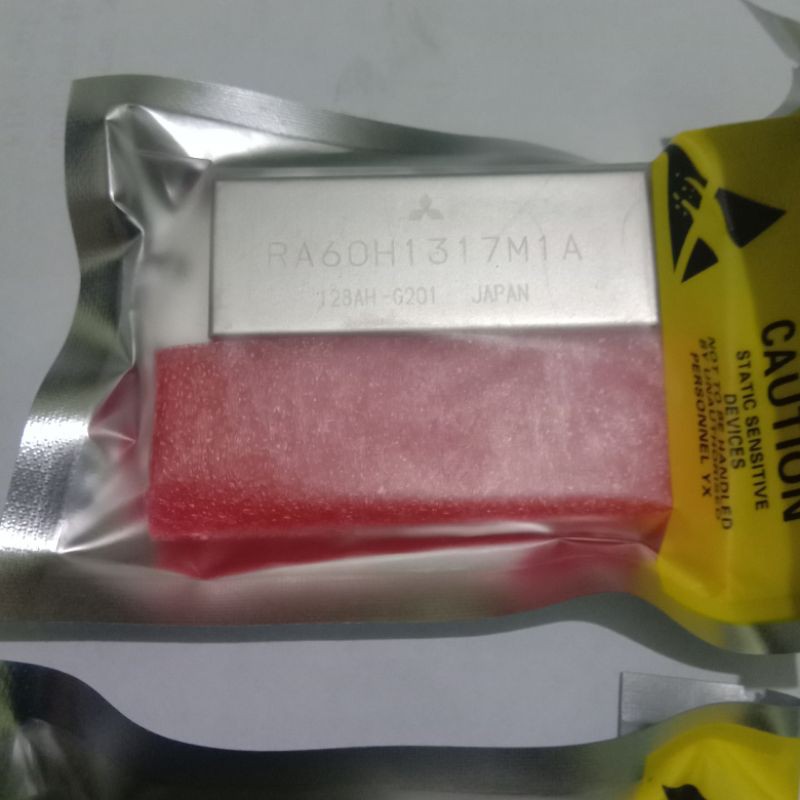

Detail Power Module RA60H1317M1A RA60H1317M1 RA60H1317M RA60 RA Final Alinco DR135 DR138 Yaesu FT-1900
DESCRIPTIONThe RA60H1317M1A is a 60-watt RF MOSFET AmplifierModule for 12.5-volt mobile radios that operate in the 136- to174-MHz range.The battery can be connected directly to the drain of theenhancement-mode MOSFET transistors. The output power anddrain current increase as the gate voltage increases. With a gatevoltage around 4V (minimum), output power and drain currentincreases substantially. The nominal output power becomesavailable at 4.5V (typical) and 5V (maximum).This module is designed for non-linear FM modulation, but mayalso be used for linear modulation by setting the drain quiescentcurrent with the gate voltage and controlling the output power withthe input power.FEATURES Enhancement-Mode MOSFET Transistors(IDD 0 @ VDD=12.5V, VGG=0V) Pout>60W, T>45% @ VDD=12.5V, VGG=5V, Pin=50mW Broadband Frequency Range: 136-174MHz Module Size: 67 x 19.4 x 9.9 mmRoHS COMPLIANCE RA60H1317M1A is a RoHS compliant prodGambar produk
