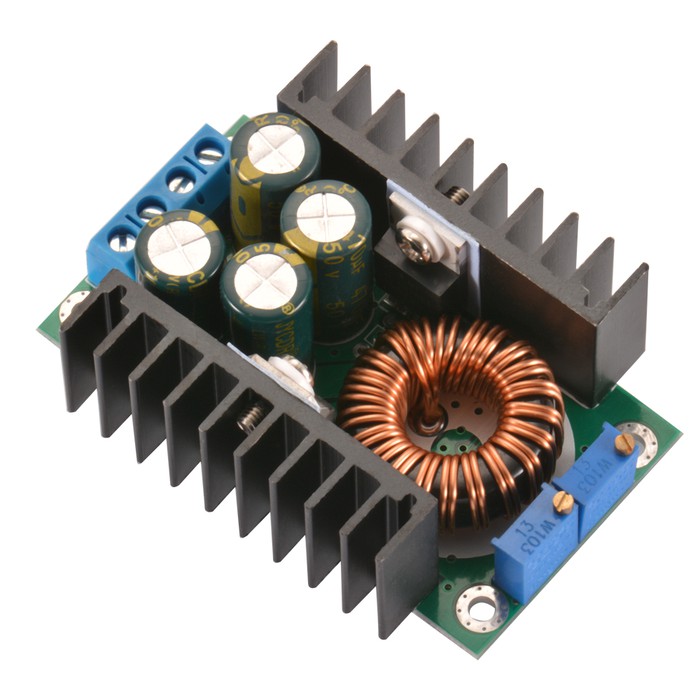

Power module DC DC 9A 300W Step Down Buck Converter 5-40V To 1.2-35V

Detail Power module DC DC 9A 300W Step Down Buck Converter 5-40V To 1.2-35V

12A 300W DC Buck Step Down Converter CC CV Driver LED charge Battery

Spesifikasi:
Input Voltage: 5-40V
Output Voltage: 1.2-35V (adjustable)
Output Current: 12A (jika suhu melebihi 65 derajat perlu tambahan fan)
Constant current range: 0.2-12A (adjustable), saran dibawah 9A
Output Power: Max 300W
Indikator merah: Status charging / CC CV
Indikator hijau: Status full charged / no load
Dimensi: 6.5cm x 4.8cm x 2.4cm

Aplikasi:
Sebagai driver LED berbagai jenis dan ukuran
Untuk ngecas AKI / Charge Battery
Sebagai power supply berbagai peralatan elektronik
Dan lain-lain

Catatan:
Jika dalam pemakaian heatsink terasa panas atau suhu sudah melebihi 65 derajat perlu ditambah FAN unit supaya module dapat bekerja normal dan tahan lama.
//////////////////////////////////////////////////////////////////////////
Features:

100% brand new and high quality
Use a dedicated benchmark IC, and high-precision current sensing resistor, can make more stable constant current
High output current, the max output current can reach 9A.
Low output ripple , high frequency capacitor reduces output ripple.
Suitable for LED driver.

Specification:

Material: PCB board and electronic component
Color: as the pic shows
Input voltage: 5-40V
Output voltage: 1.2-35V (continuously adjustable)
Output Current: 9A (power tube temperature exceeds 65C please add cooling fan)
Constant current range:0.2-9A ( adjustable )
Output Power: Maximum power is about 300W (power tube temperature exceeds 65C please add cooling fan)
Size: Approx. 2.55*1.88*0.94inch / 6.5*4.8*2.4cm(Length*width*thickness)

Package included:
1 x DC CC 9A 300W Step Down Buck Converter 5-40V To 1.2-35V Power module

Gambar produk
