Potensiometer 20K Original ALPS Electric RK09712200MT

Detail Potensiometer 20K Original ALPS Electric RK09712200MT

Deskripsi Potensiometer 20K Original ALPS Electric RK09712200MT
Harga 1 pcs

Single-shaft without switch type
Number of resistor elements Dual-unit
Mounting direction Horizontal type
Fixing method of bushing Screw
Shaft types Flat
Length of the shaft 20mm
Center detent Without
Total resistance 20kΩ
Resistance taper 15A
Operating temperature range -20℃ to +70℃
Electrical
Performance
Total resistance
tolerance
±20%
Rated power 0.05W
Maximum operating
voltage
50V AC, 10V DC
Residual resistance 30Ω max.
Gang error -40dB to 0dB 3dB max.
Insulation resistance 100MΩ min. 250V DC
Voltage proof 300V AC for 1 minute
Mechanical
Performance
Total rotational
angle
300°±5°
Rotational torque 2 to 25mN·m
Stopper strength 0.5N·m
Push-pull strength 100N max.
Vibration 10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the
frequencies, in the 3 direction of X, Y and Z and for 2 hours

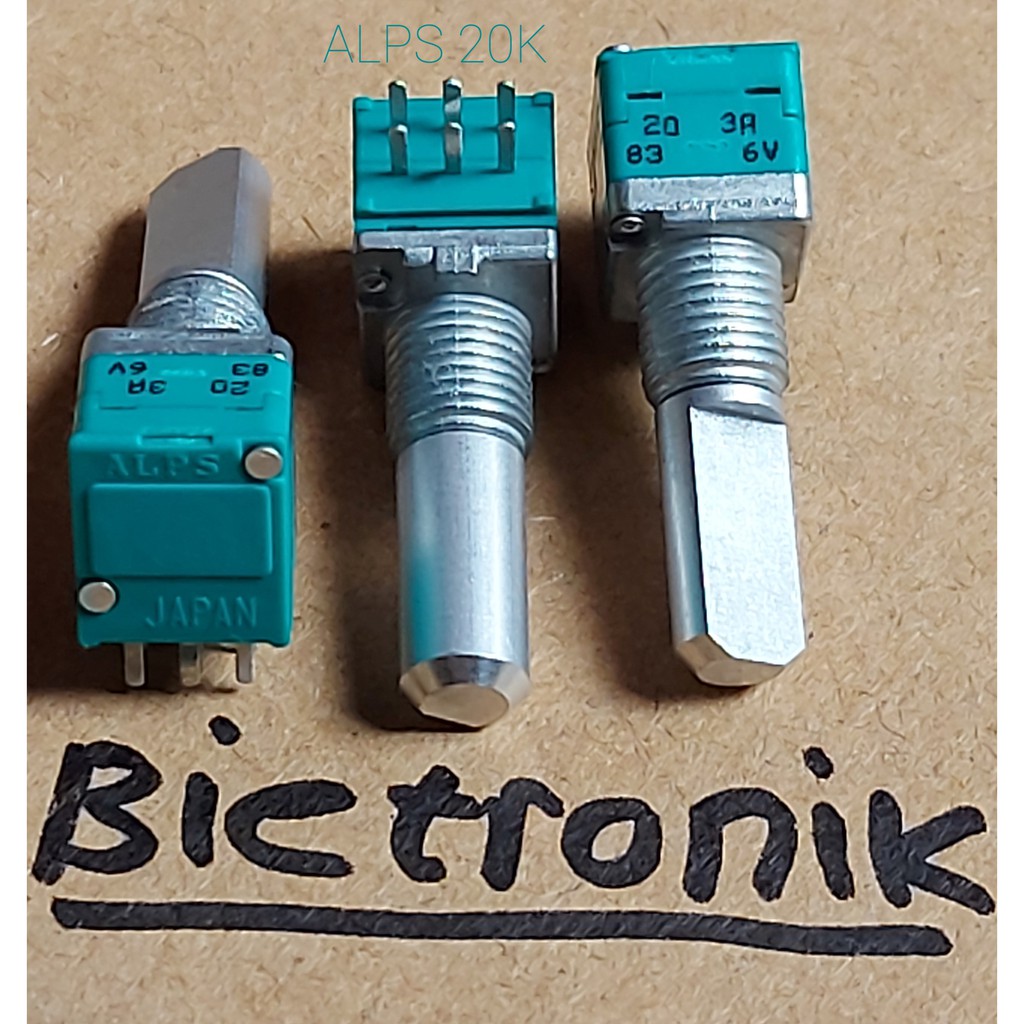

Gambar produk
