POE INJECTOR - SPLITTER KIT ADAPTER SET

Detail POE INJECTOR - SPLITTER KIT ADAPTER SET

JUAL : POE INJECTOR - SPLITTER KIT ADAPTER SET

Passive Power over Ethernet Injector & Splitter POE Kit

The complete Passive Power over Ethernet SET contains two pieces - INJECTOR and SPLITTER

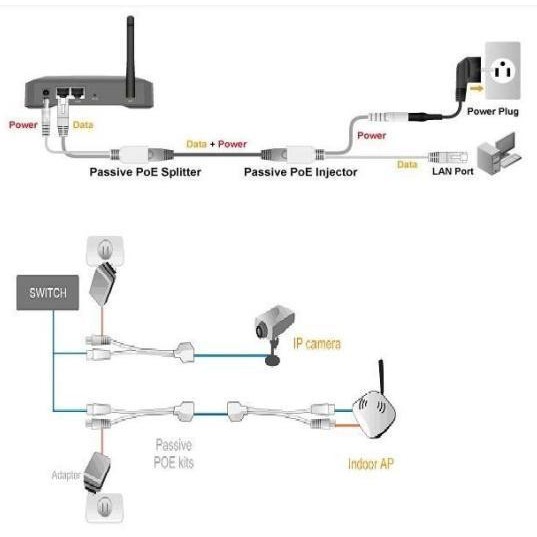

Allows you to send power to a device on the receiving end through the unused wires in a cat5 cable.
Great for applications where you need to install a wireless access point, but a power plug is unavailable or very far away from where the wireless access point needs to be installed.

Easily extend the range of the ethernet devices without a separate power cable.

Suitable for all types of different devices such as IP telephones, IP cameras, wireless LAN access points, Routers modems, switches, embedded computers or other network devices.
The devices can be supplied standardly up to 50V. (The power adapter is not included - it is possible to use the power adapter of the powered device as access point, IP camera etc.) Passive PoE`s range is normally form 30-40 metres/100-130 ft (the real distance depends on the power supply, type of cable and powered device).

Specs:

Injector Plug : 5.5mm x 2.1mm
Splitter Jack : 5.5mm x 2.1mm
Overall Length : 19 cm (7.5 inches).
Network Type : 10BASE-T, 100BASE-T
Data Pins : 1&2 and 3&6
Power Pins : 4&5 and 7&8 I
nput Voltage Max : Up to 50VDC
Output Voltage Max : Up to 50VDC
Operating Temperature : -40C ~ 60C (-40F ~ 140F)

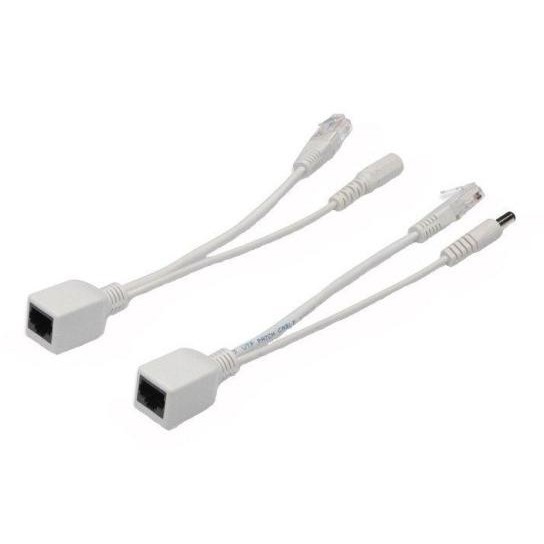

Package of Contents :

1 x POE INJECTOR
1 x POE SPLITTER


Berat sebelum di bungkus menjadi paket : 80 gram


Gambar, Spesifikasi & Harga bisa berubah sewaktu-waktu tanpa pemberitahuan

Gambar produk
