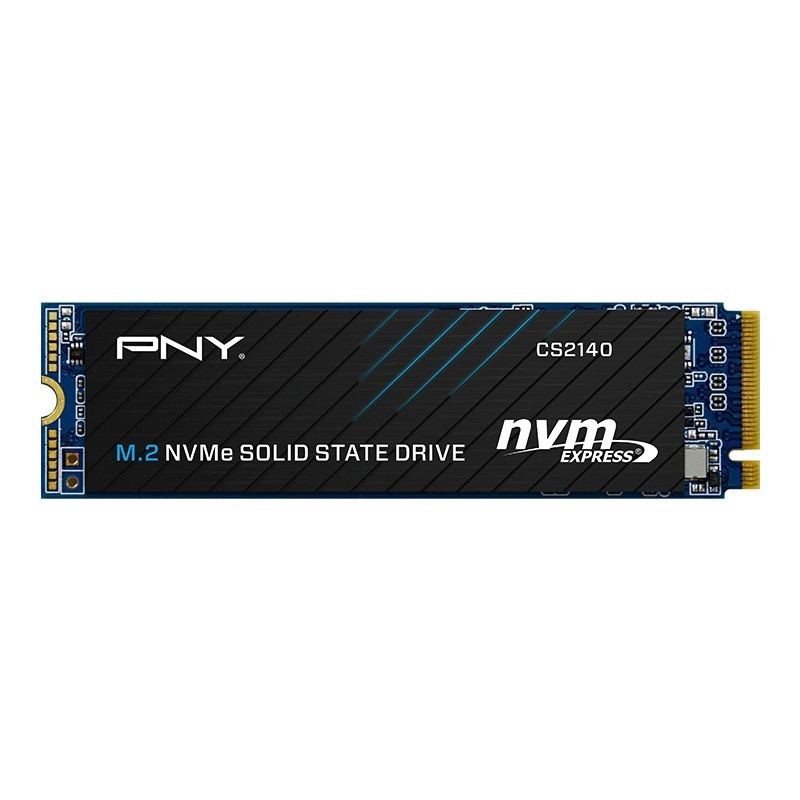

PNY SSD NVME 1TB CS2140 PCIE Gen 4x4 3x4 M.2 2280 HIGH SPEED

Detail PNY SSD NVME 1TB CS2140 PCIE Gen 4x4 3x4 M.2 2280 HIGH SPEED

CS2140 M.2 2280 NVMe Gen4x4 SSD

NVMe Gen4 upgrade from a SATA based SSD in an NVMe enabled computerHigh performance SSD with up to double the performance as compared to entry Gen3 x4 based SSDsTransfer speed up to 3,600 MB/sFaster boot-up and quicker application launchBetter overall system performance, reliable storageLow power consumption, cool and quiet operation

Specification

Usable Capacities 1TB

NAND Components 3D NAND Flash Memory

Interface PCIe Gen4x4 NVMe 1.4

Form Factor M.2 2280

Package Dimensions (L×W×H) 123 x 85 x 4.3 mm

Product Dimensions (L×W×H) 22 x 80 x 4 mm (Max)

Weight 6.6g

Max Sequential Read* Up to 3,600MB/s

Max Sequential Write* 500GB: up to 2,300MB/s
1TB - 2TB: up to 3,200MB/s

TBW 500GB: 200, 1TB: 400, 2TB: 800

PCIe Link Power Management APST, ASPM, L1.2

Operating Temperature 0°C to 70°C

Storage Temperature -40°C to 85°C

MTBF 1,500,000 Hours

Secure Erase Standard, Enhanced Secure Erase

Product Health Monitoring Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T)

Full End-to-End Data path protection Supported

Performance Optimization HMB (Host Memory Buffer)

Warranty 5-year Limited Warranty
Warranty void if used for crypto mining / farming (Chia etc.)
