PLC SPLITTER MODULE 1x8 SC UPC FIBER ISI 2

Merek: HSAIRPO | Lihat selengkapnya produk Komputer & Aksesoris dari HSAIRPO
Komputer & Aksesoris > Komponen Network > Kabel Network & Konektor > PLC SPLITTER MODULE 1x8 SC UPC FIBER ISI 2
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:Langitnet NetworkLihat semua produk Komputer & Aksesoris oleh Langitnet Network
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail PLC SPLITTER MODULE 1x8 SC UPC FIBER ISI 2

ISI 2

FEATURES :
- Low Insertion loss
- Good channel-to-channel uniformity
- High Reliability and Stability
- Excellent Environmental Stability and Widely Used

Applications :
- FTTx Deployments(GPON/BPON/EPON)
- Cable television (CATV)
- Local area networks (LAN)
- Test equipment
- Passive optical networks(PON)

Spesifikasi
Length 1m
Working wavelength 1260 ~ 1650 nm
Insert loss 10.5 Db
Return loss 50 Db
Wide Operating Temperature from -40C to 85CF


1X18 SINGLE MODE PLC SPLITTER TEST REPORT
S/N: 2112140001 Operating Wavelength(nm) 1260-1650
Input Fiber Length(m) 1.0 Output Fiber Length(m) 1.0
Package Dimension 100*80*10 Fiber Type G657A
Connector Type SC/UPC Date 2022-4-18
Cable(nm) 2.0 QC: Approved
Item IL(dB)
1310nm 1490nm 1510nm
CH1 9.98 10.21 9.91
CH2 9.93 9.91 10.25
CH3 10.17 10.13 9.98
CH4 10.22 10.03 10.09
CH5 9.99 10.30 9.96
CH6 9.96 10.21 10.17
CH7 10.15 10.00 10.21
CH8 10.27 9.90 9.95
Uniformity(dB)@1310nm 0.34 PDL(dB) <0.2
Uniformity(dB)@1490nm 0.39 Directivity(dB) >55
Uniformity(dB)@1550nm 0.33 Return Loss(dB) >55

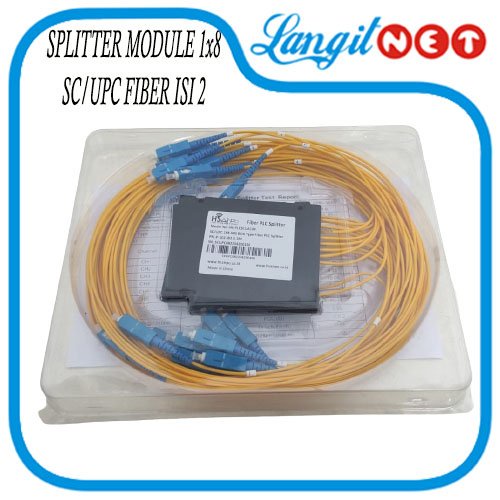

Gambar produk

PLC SPLITTER MODULE 1x8 SC UPC FIBER ISI 2
PLC SPLITTER MODULE 1x8 SC UPC FIBER ISI 2
