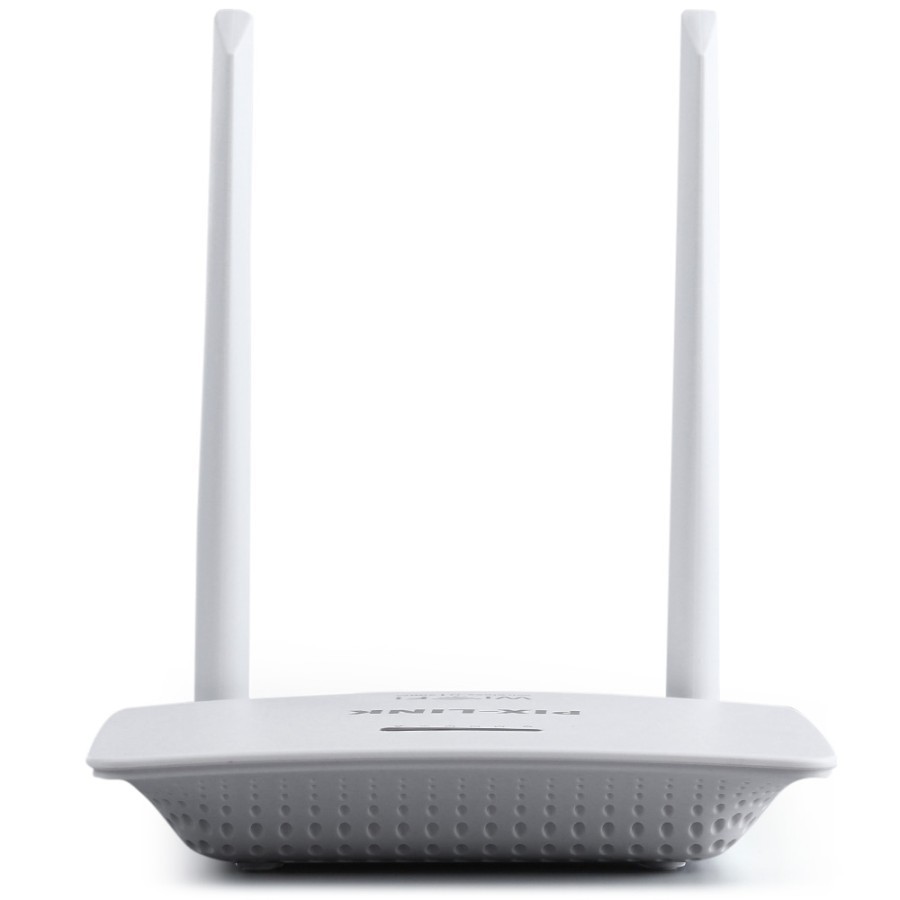

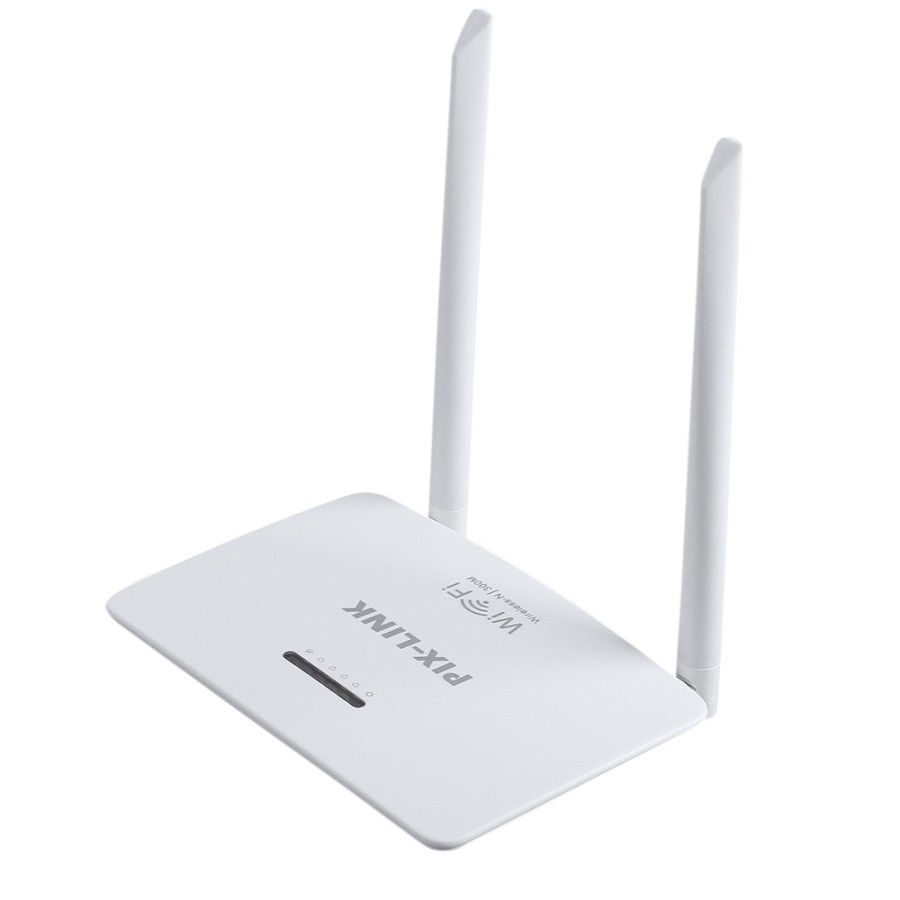

PIX-LINK LV-WR07 300Mbps Wireless-N Router

Detail PIX-LINK LV-WR07 300Mbps Wireless-N Router

300Mbps Wi-Fi Router
Model Number: LV-WR07

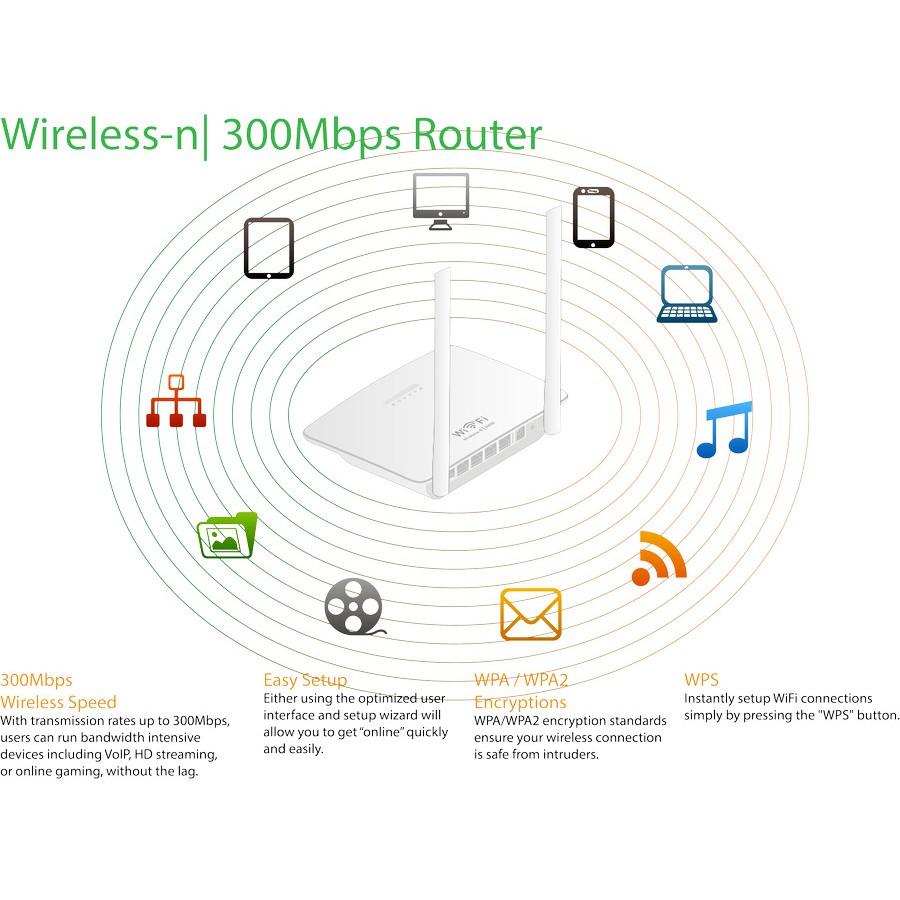

• 300Mbps wireless speed ideal for interruption sensitive applications.
• Easy setup and enjoy a security wireless network in a minute.
• Wireless security encryption easily at a push of WPS button.
• Work as client to connect ISP network and share the Internet.

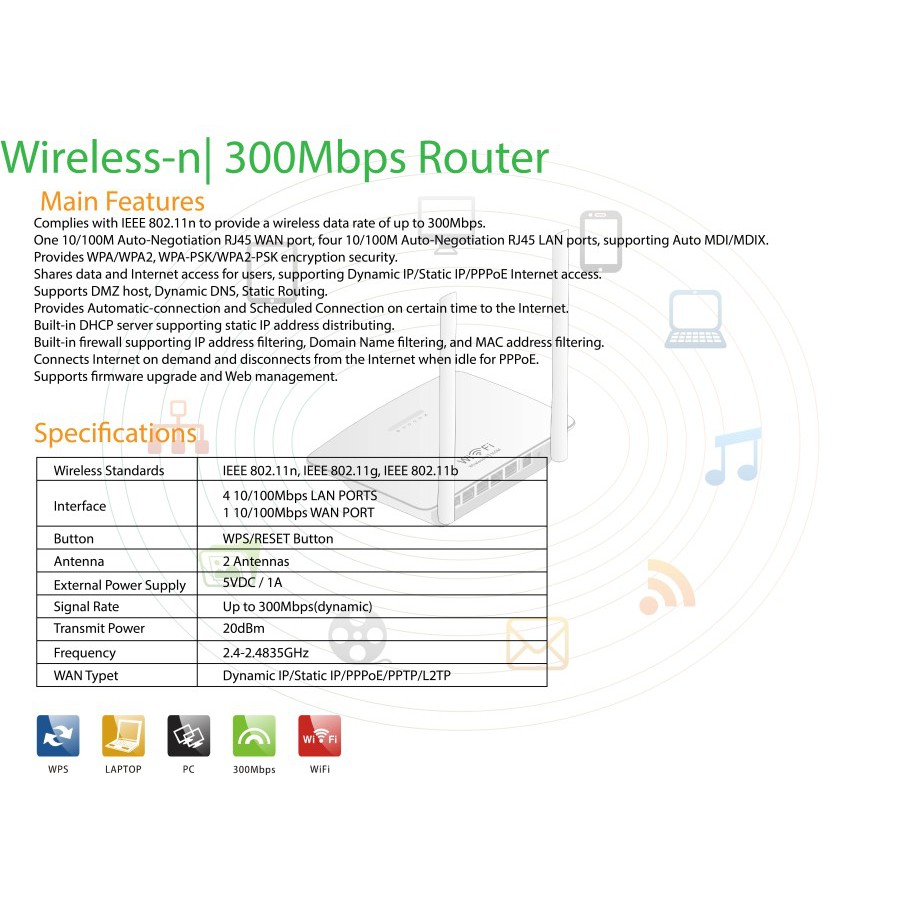

HARDWARE FEATURES

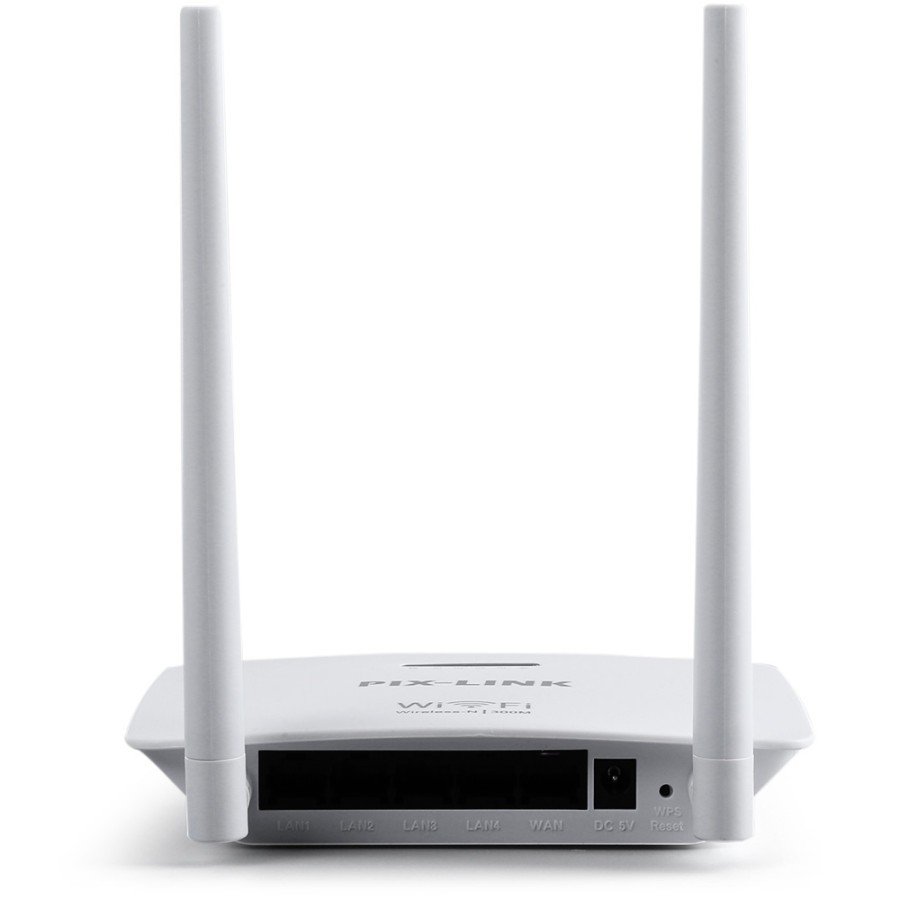

Interface : 4x10/100Mbps LAN PORTS, 1x10/100Mbps WAN PORT
Button : WPS/Reset Button
Antenna : 2*5dBi Fixed Omni Directional Antenna
External Power Supply : 5VDC / 1A
Wireless Standards : IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) : 154.0 x 108.0 x 30.3 mm

WIRELESS FEATURES
Frequency : 2.4-2.4835GHz
Signal Rate : Up to 300Mbps(dynamic)
Reception Sensitivity : 270M: -70dBm@10% PER
Transmit Power : <20dBm
Wireless Functions : Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security : 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK

SOFTWARE FEATURES
Quality of Service : WMM, Bandwidth Control
WAN Type : Dynamic IP/Static IP/PPPoE/PPTP/L2TP/BigPond
DHCP : Server, Client, DHCP Client List
Port Forwarding : Virtual Server,Port Triggering, UPnP, DMZ
VPN Pass-Through : PPTP, L2TP, IPSec (ESP Head)
Firewall Security : DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter : IP and MAC Address Binding

Package Contents :
1xWireless-N Rotuer
1xPower Adapter
1xEthernet Cable
1xQuick Installation Guide

Environment :
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
