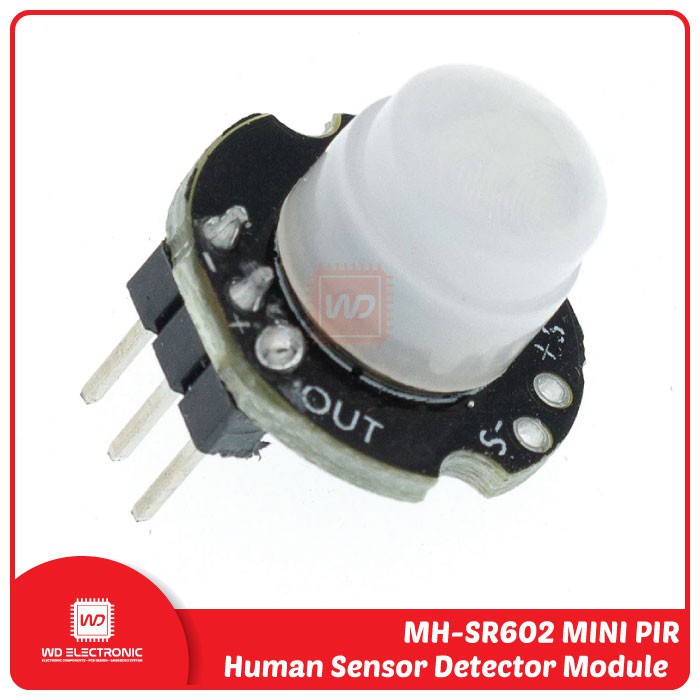

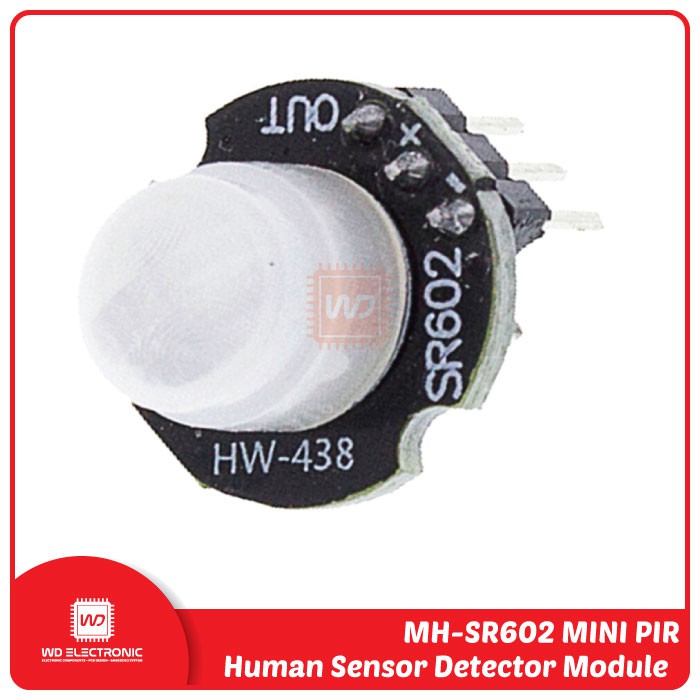

Detail PIR MH-SR602 MINI Motion Sensor Detector Module SR602
Hi #RekanEasyWare ... EasyWare Part#: EP000681
Features : - This module has high sensitivity, fast response, small static power consumption, small size, easy to install, and is installed. - The lens, the pin header has been soldered, and the power supply is provided without debugging. - Can be used for body sensor lights, alarms, security, - Access control on-demand imaging, automatic equipment for agriculture, forestry and mining.
Parameters : - Pyroelectric human body infrared sensor module, model: SR-602 - Sensing distance: up to 5 meters; recommended 0-3.5M. - Output: high level, H=3.3V, L=0V - Power supply DC: 3.3V-15V - Quiescent current: 20uA
Package : - 1x MH-SR602 MINI Motion Sensor Detector module
