Detail Piezoelectric Ceramic Vibration Block Sensor button for arduino

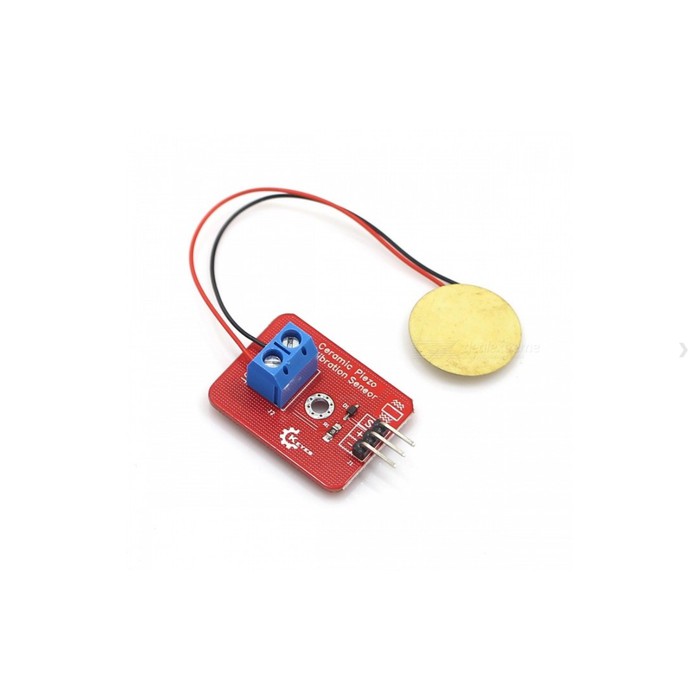

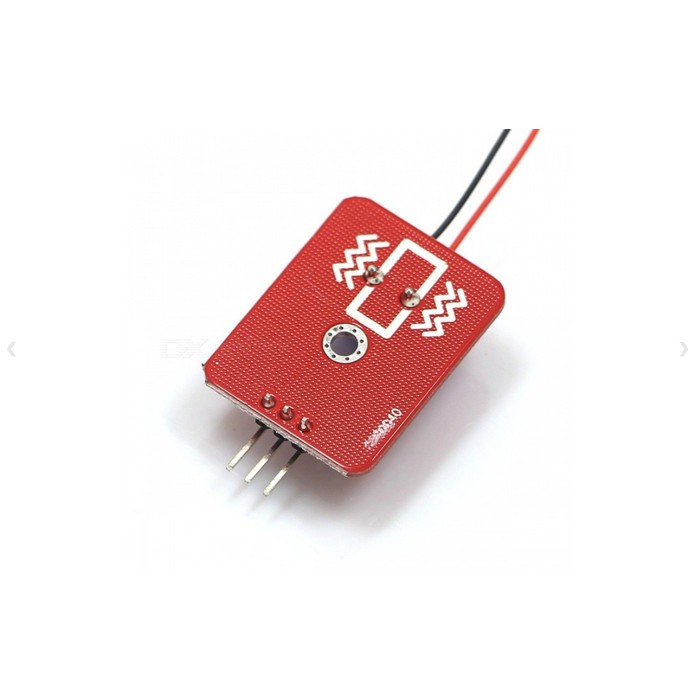

Analog Piezoelectric Ceramic Vibration Block Sensor for Arduino


Description:

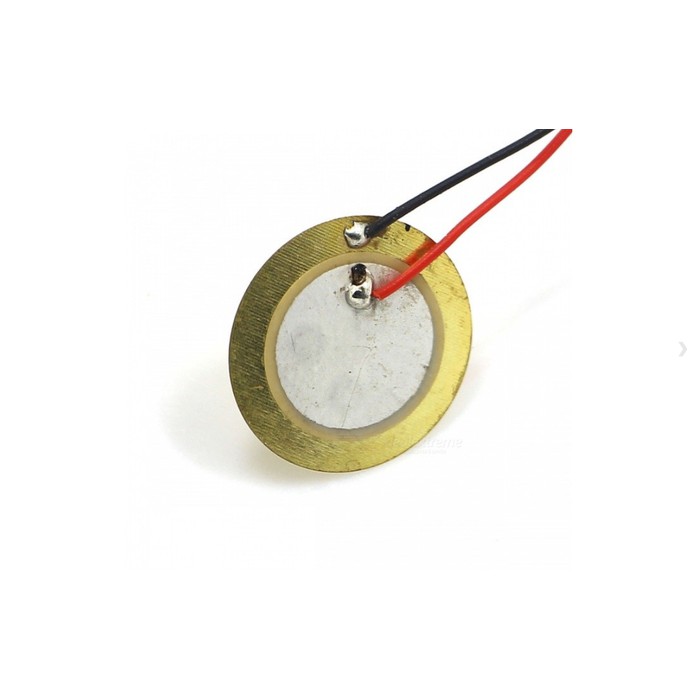

Based on piezoelectric ceramic ship, the analog vibration sensor is a procedure of inverse transform, using the ship to produce vibration to electrical signal.
The ship vibrating, the signal comes about. This sensor is combined with Arduino sensor, Arduino interface can sense slight vibration signal, which can realize interactive works related to vibration,like electronic drum.
Connect this sensor to the analog interface A0 of Arduino UNO controller, and different vibration produces different output value of the analog interface, and then realize interactive works related to vibration.

Working voltage ：3.3V or 5V
Working current ：<1mA
Range of working temperature：－10℃～＋70℃
Interface type：analog signal output
Pin definition：S signal output、+ power supply(VCC)、- ground (GND)

Gambar produk

Piezoelectric Ceramic Vibration Block Sensor button for arduino
Piezoelectric Ceramic Vibration Block Sensor button for arduino
Piezoelectric Ceramic Vibration Block Sensor button for arduino
Piezoelectric Ceramic Vibration Block Sensor button for arduino
Piezoelectric Ceramic Vibration Block Sensor button for arduino
Piezoelectric Ceramic Vibration Block Sensor button for arduino
Piezoelectric Ceramic Vibration Block Sensor button for arduino
Piezoelectric Ceramic Vibration Block Sensor button for arduino
