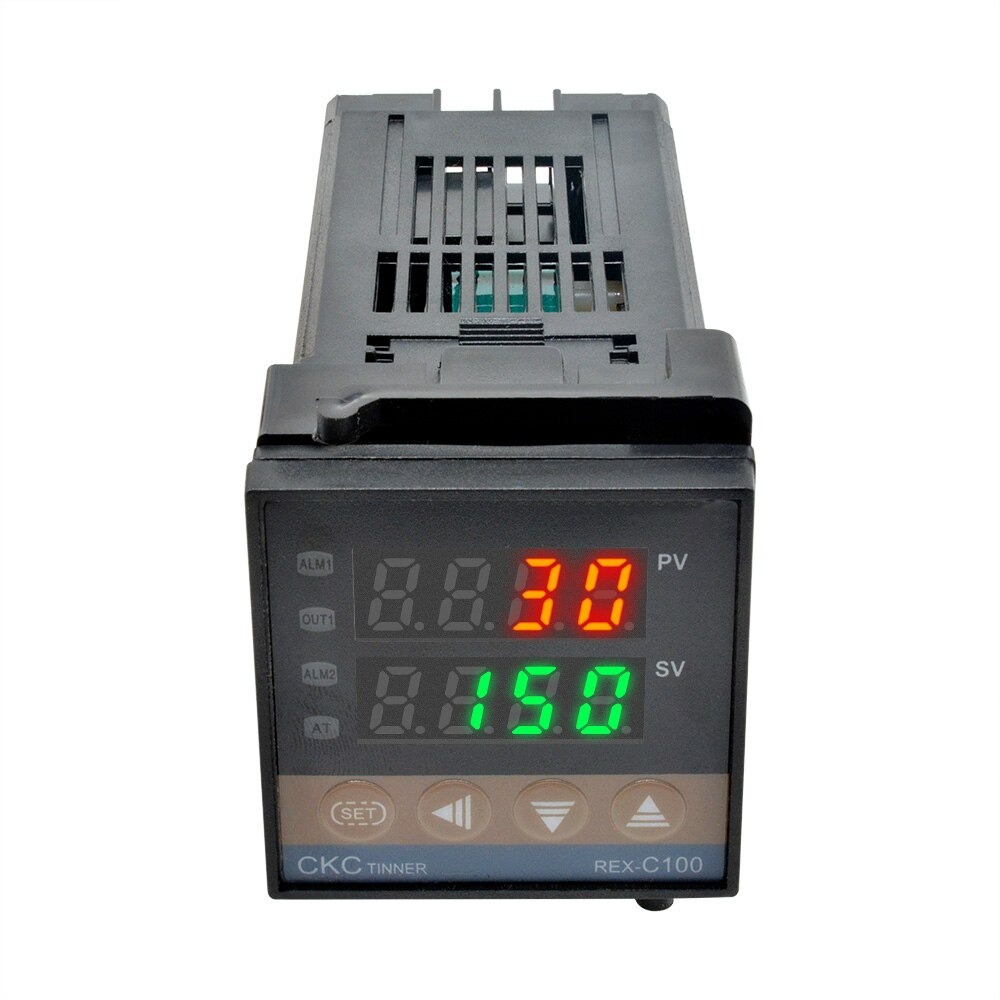

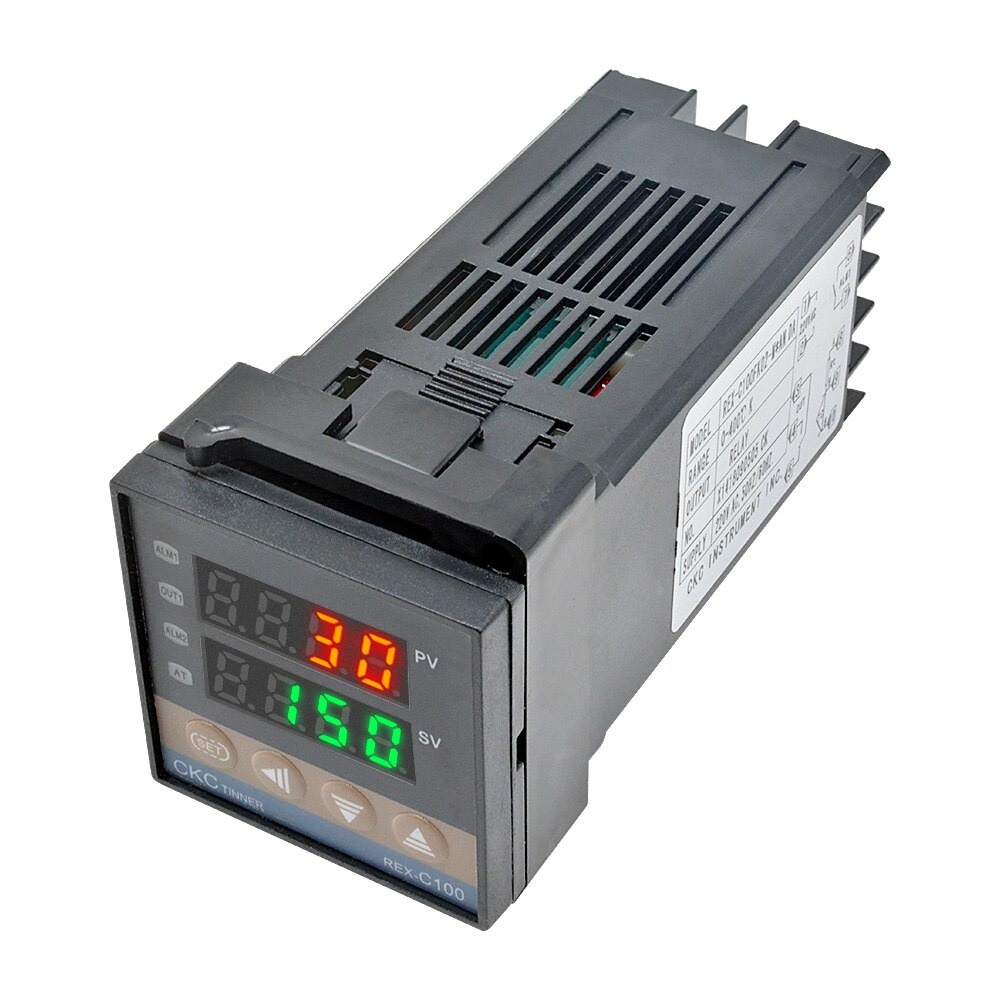

Detail PID Rex C100 Rex-C100 Temperatur Temperature Controller Output Relay
Ready merk CKC Tinner REX-C100 FK02-M*AN DASpecifications:
Display: Dual display for Celsius (°C)
Range: 0-400°C (Only when with the factory K type thermocouple)
Thermocouple: Type K
Main Output: Relay
PID cooling/heating control
1 RELAY alarm: Normal open, capacity 250V/3A AC or 30V/3A DC
6 different Dual Output combinations with: high / low / high deviation / low deviation /interval / out of interval.
Accuracy: 0.5%
Input: Type K
Dimension: DIN: 1/16 (48mm x 48mm x 108mm/1.89"x1.89"x4.25")
Individually programmable PID control parameters.
P, I, d, controlling period, digital filter coefficient, and more
Relay control ready to connect
Compact design:
DIN 1/8 great form-factor to be included/build-in to your product.
Input: Type K
Control output: RELAY
- Hanya unit controller nya
