PHOTON PTF3004S EPON OLT L2 4PON 4SFP PLUS 2RJ45 PX20xxx

Detail PHOTON PTF3004S EPON OLT L2 4PON 4SFP PLUS 2RJ45 PX20xxx

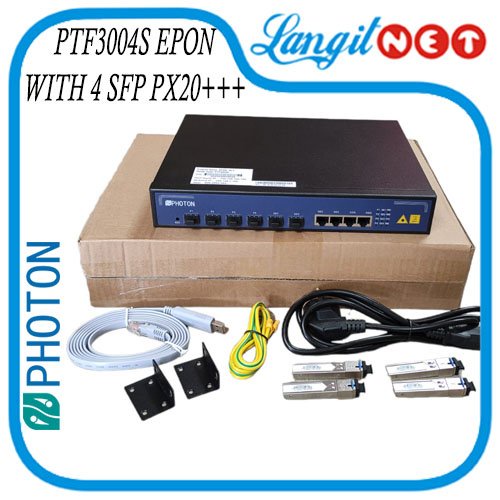

PAKET BERISI :
- 1 OLTPTF3004S
- 4 SFP PX20+++
- 2 KUPINGAN RACKMOUNT + 8 BAUT
- 1KABEL POWER C13
- 1 KABEL GROUNDING
- 1KABEL USB TO RJ45
- 1 CD
- 1 DUS
4 PON Ports EPON OLT

PTF3004S
PTF3004Shas 4 PON ports,4uplink ports (2*GEcopper RJ45Ethernet ports, 2*GE(SFP)).Eachof PON portsupports up to64ONUs, the whole device supports up to256ONUs. Smallsize OLT, easy toinstall,convenient, flexibleandeasy to deployhigh performancebroadband access network. It is appropriate to be deployed in compact room environment. The OLT canalsobe used for Triple-Play applications.

Features
- 1U boxEPON OLT with 4 PON ports
- Compliant with IEEE802.3ahYD/T1475-2006EPON and China Telecom EPON Technical Requirements
- Support PON line AES and triple churing encryption
- Support Dynamic Bandwidth Allocation (DBA)
- Support ONU auto-MAC binding and filtering, support the ONU offline business configuration and automatically configure, manual/auto authentication
- Support the use of the ACL rules for packet filtering
- Support SNMP, telnet, CLI, OAM and Web management
- Provide logs, alarms and performance statistics
- Support remote software upgrade

Items Unit Specifications
PONstandard : EPON IEEE802.3ah
PONinterface :
4*EPONSFP Ports (PX20+), Receiving sensitivity:-30dBm(Saturation Optical -6dBm).Power,Transmitting optical power: +2~+7dBmTransmission distance: 20KM.Max splitting ratio1:64

Speed :
- Upstream 1.25G
- Downstream 1.25G
Wavelength : nm : Tx1490, Rx 1310
Uplink :
- GE : 2*copperEthernetports10/100/1000Mauto-negotiation
- SFP : 2*GE SFP
Management Ports : 1*10/100BASE-T out-band port, 1*CONSOLE port
Backplane Gbps : 16
MAC table K : 32
Operating condition : Operating temp: -5 ~ +55
Storing condition : Storing temp: -40 ~ +85
Humidity : 5~90(non-condensing)
Power consumption W : 30
Dimension mm : 323mm239mm44mm(LWH)
