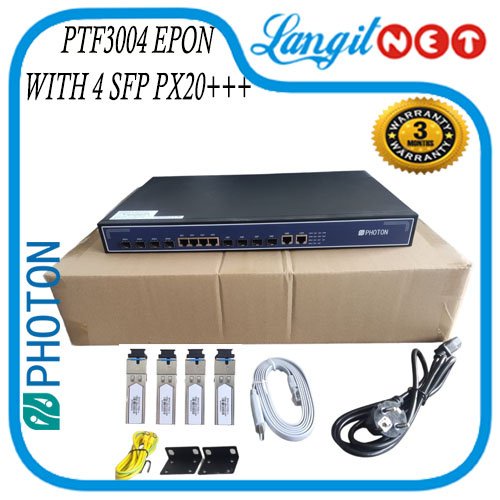

PHOTON PTF3004 EPON OLT L3 4PON 4RJ45 4 SFP PX20xxx

Detail PHOTON PTF3004 EPON OLT L3 4PON 4RJ45 4 SFP PX20xxx

4 PON Ports EPON OLT
PTF3004
PTF3004 has 4 PON ports, 8 uplink ports (4*GE copper RJ45 ethernet ports, 4*SFP(GE)). Each of PON port supports up to 64 ONUs, the whole device supports up to 256 ONUs. Small size OLT, easy to install, convenient, flexible and easy to deploy high performance broadband access network. It is appropriate to be deployed in compact room environment. The OLTs can also be used forTriple-Playapplications.

Features:
- 1U 19 inch standard box EPON OLT with 4 PON ports
- Compliant with IEEE802.3ah YD/T1475-2006EPON and China Telecom EPON Technical Requirements
- QoS based on port, VID, TOS and MAC address(32K Mac address)
- Support priority queue scheduling, support SP, WRR or SP + WRR scheduling algorithm
- Support 4096 VLAN, transparent transmission and conversion, support VLAN stacking (QinQ)
- Support 32K MACs line speed learning and aging, support MAC address restriction

PON standard : EPON IEEE802.3ah
PON interface : 4*EPON SFP Ports (PX20+), Receiving sensitivity: -30dB (Saturation Optical -6dBm). Power,
PON Interface :
- Transmitting optical power: +2~+7dBm
- Transmission distance: 20KM. Max splitting ratio1:64
Speed : Upstream 1.25G Downstream 1.25G
Wavelength : nm : Tx1490, Rx 1310
Uplink :
GE : 4*copper ethernet ports 10/100/1000M auto-negotiation
SFP : 4*GE SFP
Management Ports :1*10/100BASE-T out-band port, 1*CONSOLE port
Backplane : Gbps : 128
MAC table : K : 32
Spanning Tree protocol : Support IEEE 802.1d (STP), 802.1w (RSTP) spanning tree protocols
QoS :
- Support 802.1p priority queue scheduling
- Support SPWRR and SP+WRR scheduling algorithms
Operating condition : Operating temp: -5 ~ +55
Storing condition : Storing temp: -40 ~ +85
Humidity : 5~90(non-condensing)
Power consumption : 30
