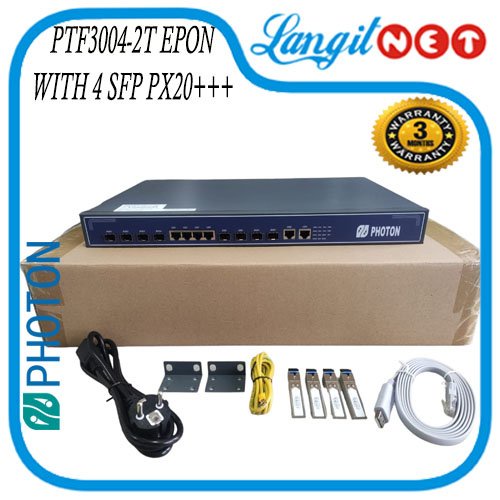

PHOTON PTF3004 2T L3 EPON OLT 4PON 10GE 4RJ45 4SFP PX20xxx

Detail PHOTON PTF3004 2T L3 EPON OLT 4PON 10GE 4RJ45 4SFP PX20xxx

4 Ports 10GE EPON OLT
PTF3004-2T

Features:
- 1U 19 inch standard boxEPON OLT with 4 PON ports
- Compliant with IEEE802.3ahYD/T1475-2006EPON and China Telecom EPON Technical Requirements
- QoS based on port, VID, TOS and MAC address(32K Mac address)
- Support priority queue scheduling, support SP, WRR or SP + WRR scheduling algorithm
- Support 4096VLAN, transparent transmission and conversion, support VLAN stacking (QinQ)
- Support 32K MACs line speed learning and aging, support MAC address restriction
- Support IEEE 802.1d (STP), 802.1w (RSTP) and MSTP Spanning Tree Protocol
- Support multicast Groups, IGMPv1/v2snooping and IGMP Proxy
- Support port-based rate limitation and bandwidth control
- Support PON line AES and triple churing encryption
- Support Dynamic Bandwidth Allocation (DBA)

PONstandard : EPON IEEE802.3ah
PONinterface : 4*EPONSFP Ports (PX20+), Receiving sensitivity:-30dBm(Saturation Optical -6dBm).Power,Transmitting optical power: +2~+7dBmTransmission distance: 20KM.Max splitting ratio1:64
Speed : Upstream 1.25G Downstream 1.25G
Wavelength : nm Tx1490, Rx 1310
Uplink :
GE : 4*copper ethernetports10/100/1000Mauto-negotiation
SFP : 2*10GE+2GE/4*GE SFP
Management Ports : 1*10/100BASE-T out-band port, 1*CONSOLE port
Backplane : Gbps 128
MAC table : K 32
Spanning Tree protocol : Support IEEE 802.1d (STP), 802.1w (RSTP) spanning tree protocols
QoS :
- Support 802.1p priority queue scheduling
- Support SPWRR and SP+WRR scheduling algorithms
Operating condition : Operating temp: -5 ~ +55
Storing condition : Storing temp: -40 ~ +85
Humidity : 5~90(non-condensing)
Power consumption : 30

Gambar produk
