PHILIPS LAMPU PJU LED BRP131 LED100/NW-CW 100W 220-240V DM / DM GM

Detail PHILIPS LAMPU PJU LED BRP131 LED100/NW-CW 100W 220-240V DM / DM GM

PHILIPS LAMPU PJU LED BRP131 LED100/NW-CW 100W 220-240V DM / DM GM

Cool White / Netral White

General Information

Lamp colour code : 857 daylight
Light source replaceable : No
Number of gear units : 1 unit
Driver included : Yes
Protection class IEC : Safety class I (I)
CE mark : CE mark
Warranty period : 1 years
Constant light output : No
Number of products on MCB : 26
RoHS mark : RoHS mark
LED engine type : LED

Operating and Electrical

Input voltage : 220 to 240 V
Input frequency : 50 to 60 Hz
Initial CLO power consumption : NO W
Inrush current : 9,7 A
Inrush time : 0.065 ms
Power factor (min.) : 0,9

Controls and Dimming

Dimmable : No

Mechanical and Housing

Housing material : Aluminum die-cast
Optic material : Polycarbonate
Optical cover/lens material : Polycarbonate
Fixation material : Aluminum
Overall length : 453.8 mm
Overall width : 277.2 mm
Overall height : 85 mm
Effective projected area : 0.11 m²

Approval and Application

Ingress protection code : IP66 [ Dust penetration-protected, jet-proof]
Mech. impact protection code : IK08 [ 5 J vandal-protected]

Initial Performance (IEC Compliant)

Initial luminous flux : 10000 lm
Luminous flux tolerance : +/-10%
Initial LED luminaire efficacy : 100 lm/W
Colour Rendering Index : 70
Initial chromaticity : SDCM>6
Initial input power : 100 W
Power consumption tolerance : +/-10%

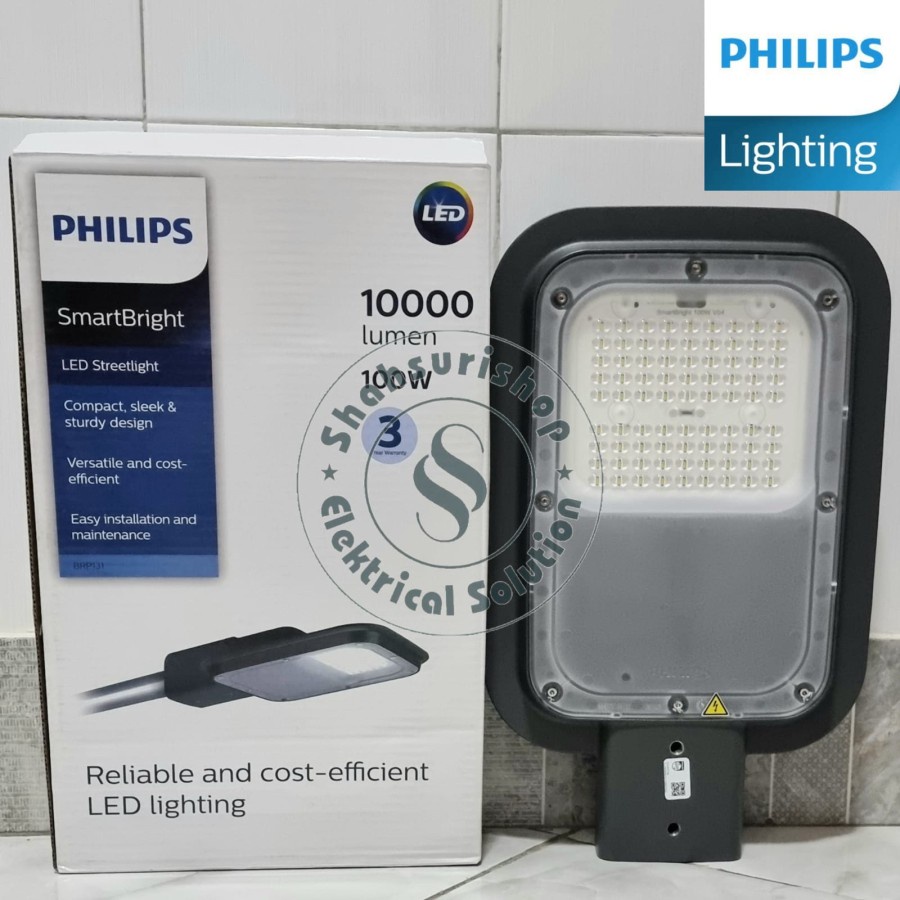

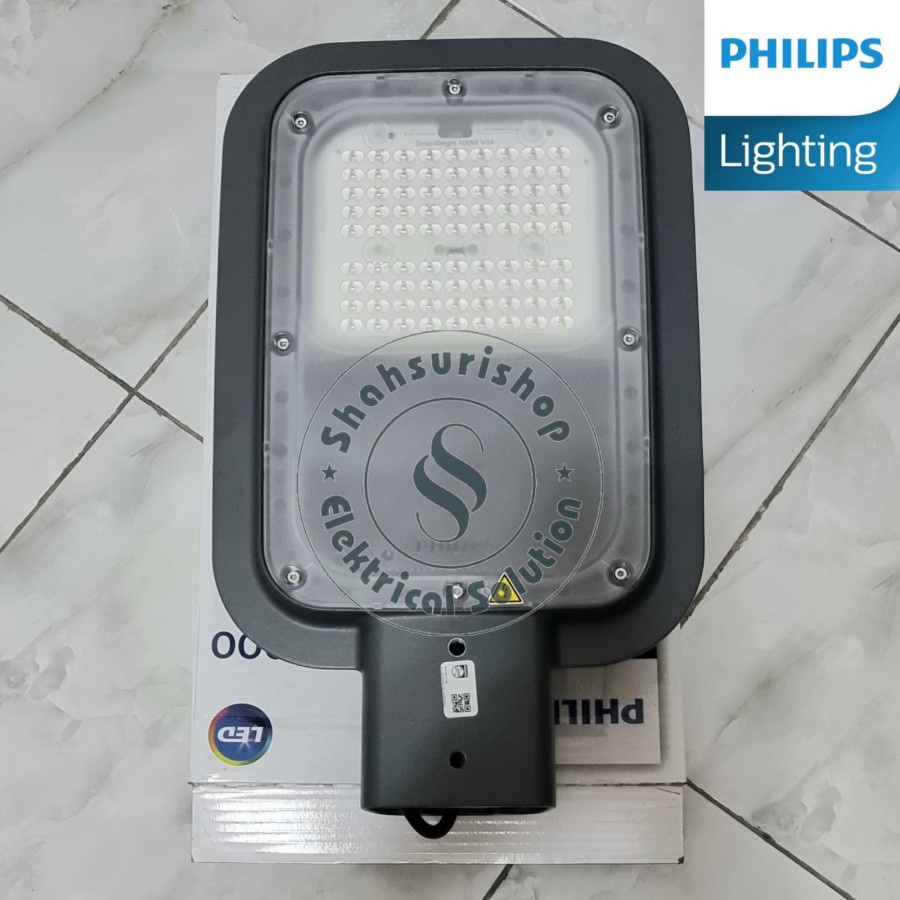

Gambar produk
