(PETI KAYU) speaker komponen 15 inch FANE COLOSSUS PRIME 15XS / 15 XS original

Detail (PETI KAYU) speaker komponen 15 inch FANE COLOSSUS PRIME 15XS / 15 XS original

Barang 100% Original fane

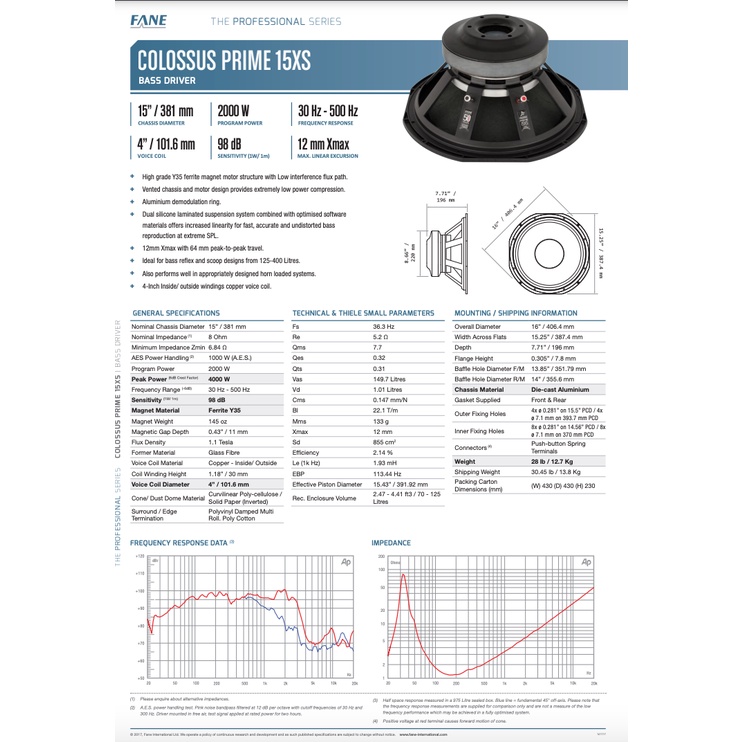

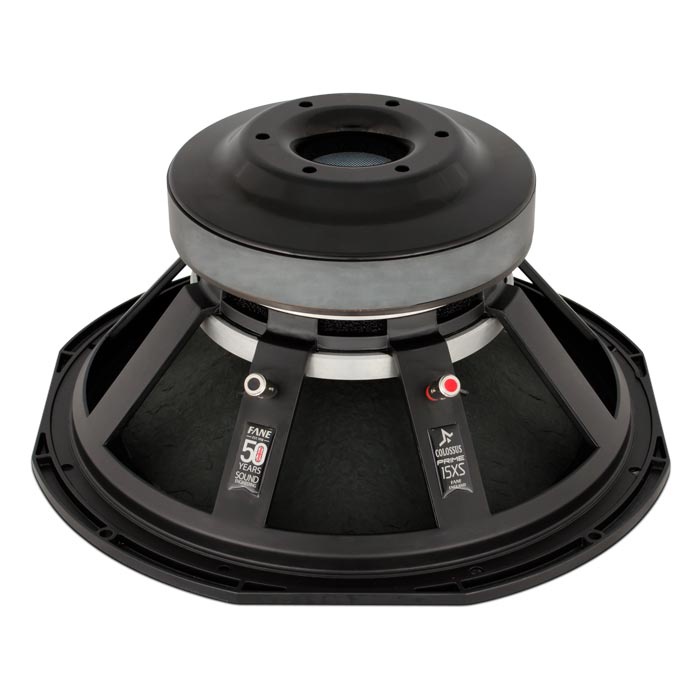

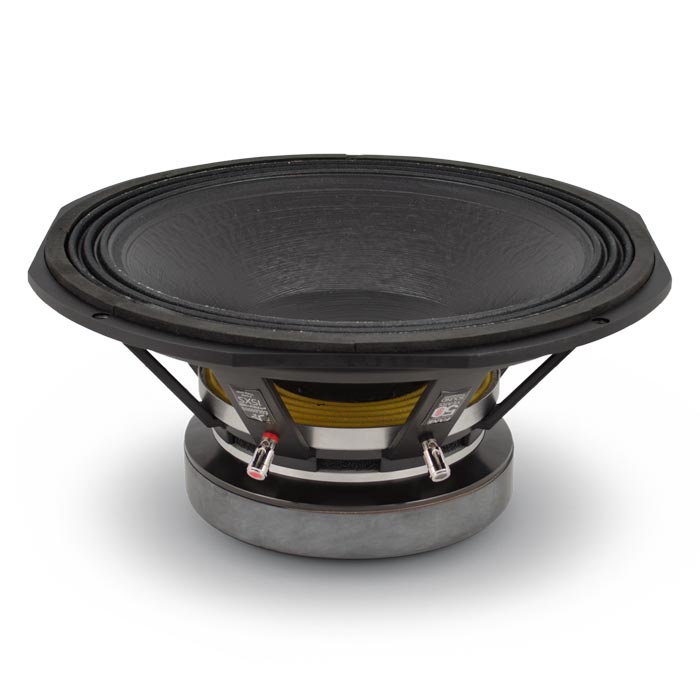

Fane Colossus Prime 15XS
Electro Acoustic Specifications
Nominal Chassis Diameter15 / 381 mm
Impedance4 /8 /16
Power Handling1000 W (A.E.S.)
Peak Power (6dB Crest Factor)4000 W (A.E.S.)
Usable Frequency Range (-6dB)30 Hz 500 Hz
Sensitivity (1W 1m)98 dB
Moving Mass (inc. Air Load)133 grams
Minimum Impedance (Zmin)6.84
Effective Piston Diameter15.43 / 391.92 mm
Magnet Weight145 oz
Magnetic Gap Depth0.43 / 11 mm
Flux Density1.1 Tesla
Coil Winding Height1.18 / 30 mm
Voice Coil Diameter4.0 / 101.6 mm
Speaker TypeBass Driver


2000 W Program Power.
98 dB Sensitivity (1W/1m).
High grade Y35 ferrite magnet motor structure with Low interference flux path.
Vented chassis and motor design provides extremely low power compression.
Aluminium demodulation ring.
Dual silicone laminated suspension system combined with optimised software materials offers increased linearity for fast, accurate and undistorted bass reproduction at extreme SPL.
12mm Xmax with 64 mm peak-to-peak travel.
Fibre loaded, UK manufactured cone offers increased strength, durability and performance.
Ideal for bass reflex and scoop designs from 125-400 Litres.
Also performs well in appropriately designed horn loaded systems.
4-inch Inside/ outside windings copper voice coil.
