(PETI KAYU) Komponen Speaker 18 Inch FANE Collosus Prime 18XB FANE 18XB 18 XB Original

Detail (PETI KAYU) Komponen Speaker 18 Inch FANE Collosus Prime 18XB FANE 18XB 18 XB Original

FANE COLOSSUS 18XB
SUB BASS DRIVER

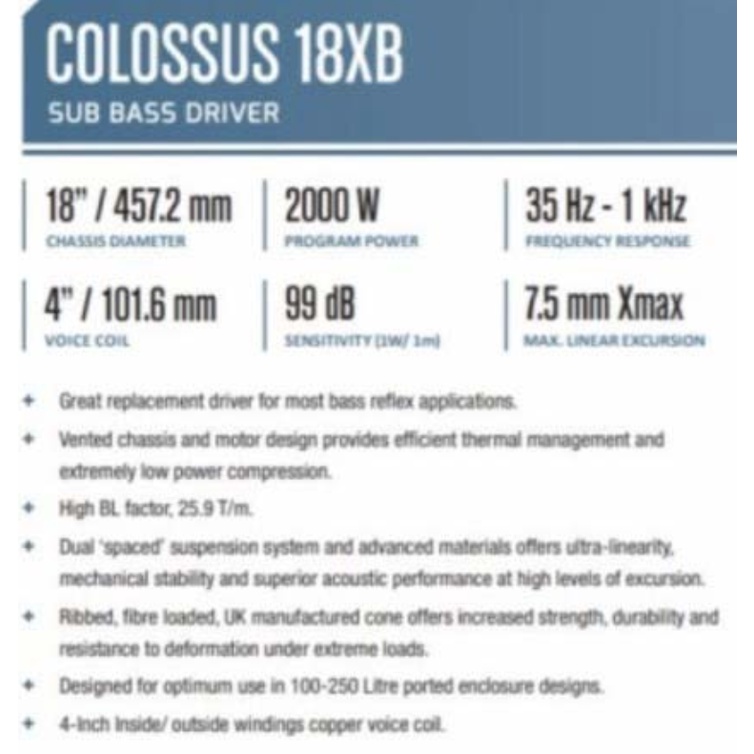

Features :
2000 W Program Power.
99 dB Sensitivity (1W/1m).
Great replacement driver for most bass reflex applications.
Vented chassis and motor design provides efficient thermal management and extremely low power compression.
High BL factor, 25.9 T/m.
Dual 'spaced' suspension system and advanced materials offers ultra-linearity, mechanical stability and superior acoustic performance at high levels of excursion.
Ribbed, fibre loaded, UK manufactured cone offers increased strength, durability and resistance to deformation under extreme loads.
Designed for optimum use in 100-250 Litre ported enclosure designs.
4-inch Inside/ outside windings copper voice coil.

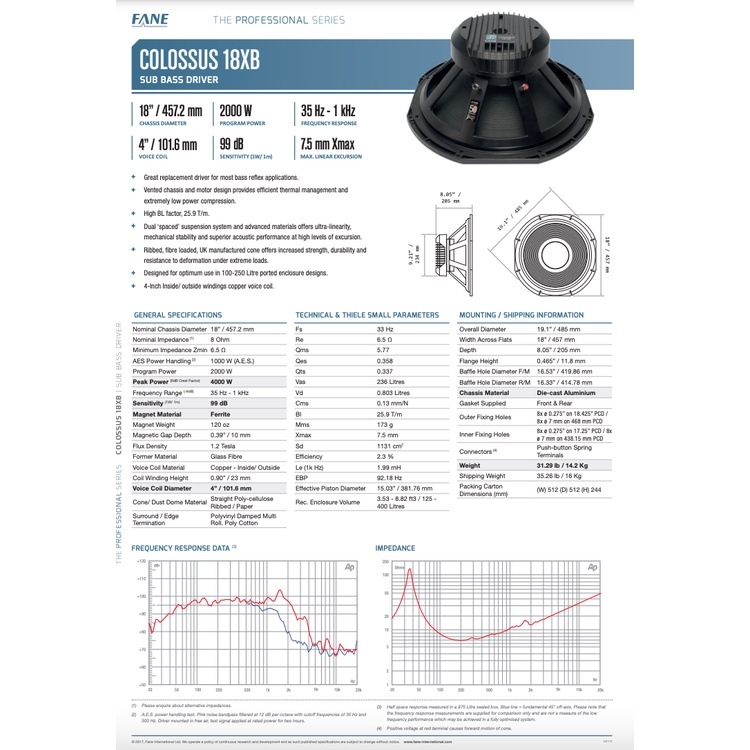

Electro Acoustic Specifications
Nominal Chassis Diameter 18" / 457.2 mm
Impedance 4 /8 /16 Ω
Power Handling 1000 W (A.E.S.)
Peak Power (6dB Crest Factor) 4000 W (A.E.S.)
Usable Frequency Range (-6dB) 35 Hz - 1 kHz
Sensitivity (1W - 1m) Wideband 99 dB
Moving Mass (inc. Air Load) 173 grams
Minimum Impedance (Zmin) 6.5 Ω
Effective Piston Diameter 15.03" / 381.76 mm
Magnet Weight 120 oz
Magnetic Gap Depth 0.39" / 10 mm
Flux Density 1.2 Tesla
Coil Winding Height 0.90" / 23 mm
Voice Coil Diameter 4.0" / 101.6 mm
Speaker Type Sub Bass Driver
Speaker Series The Professional Series
Program Power 2000 W (A.E.S.)
Sensitivity (1W / 1m) Working band
