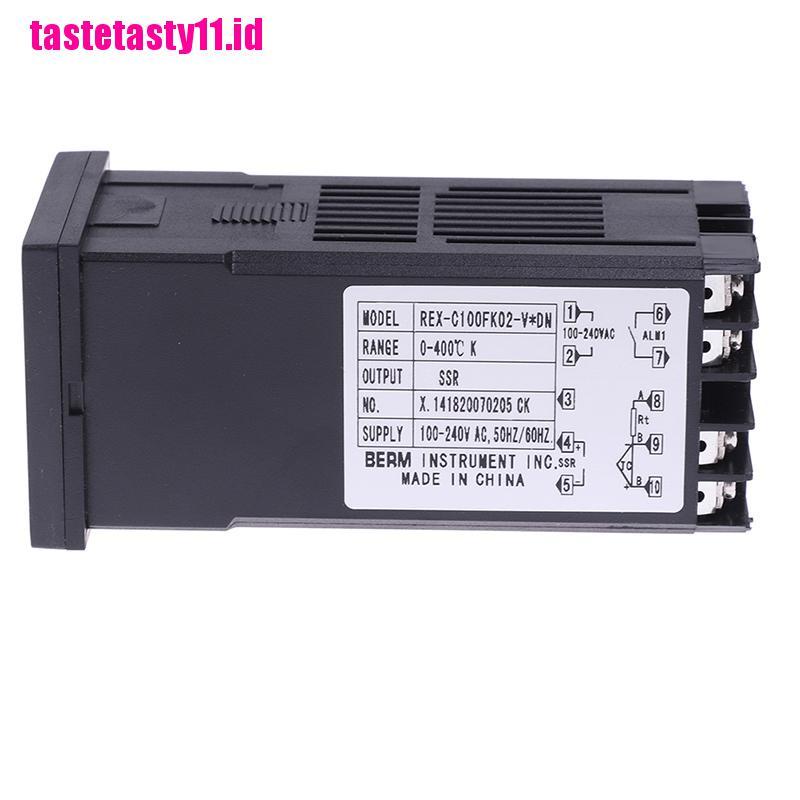

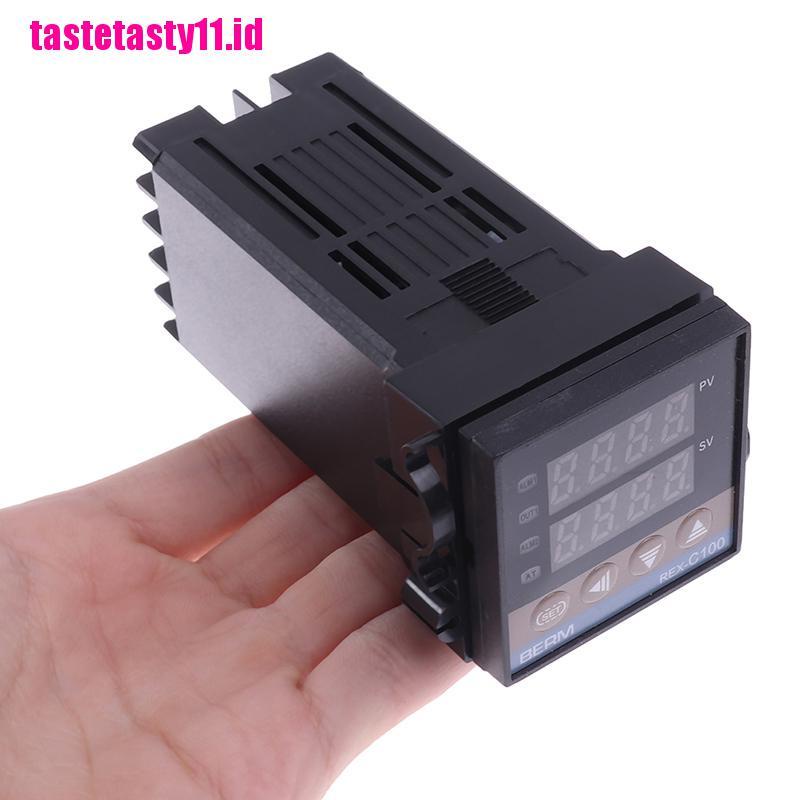

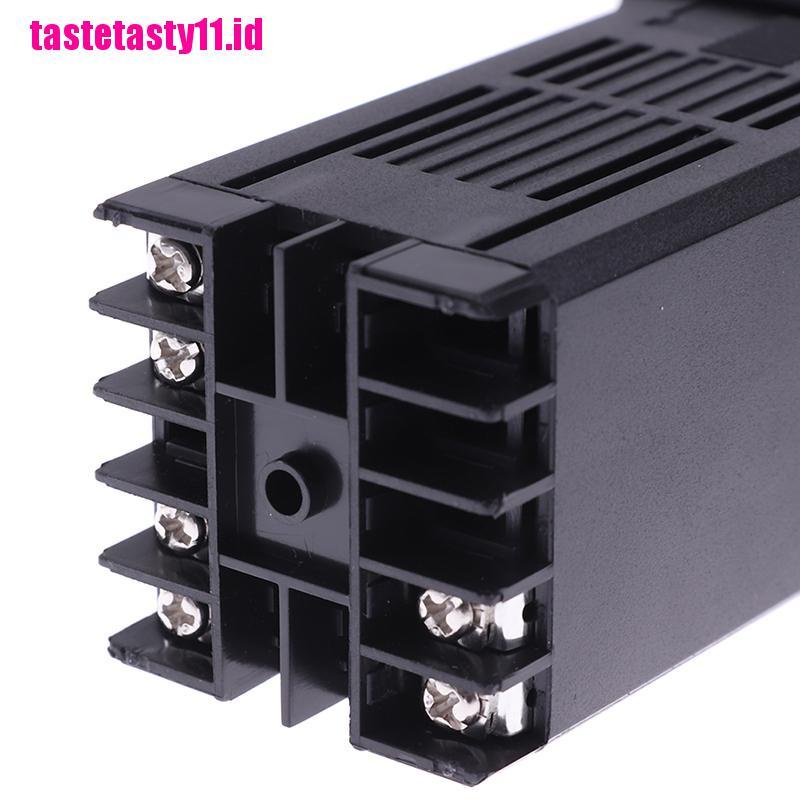

Pengontrol Suhu 100-240VAC PID REX-C100 SSR-40A

Detail Pengontrol Suhu 100-240VAC PID REX-C100 SSR-40A

Measuring accuracy: +/-0.5%FS
Cold-end compensation tolerance: +/-2 Celsius(can be modified by software in 0~50 Celsius)
Resolution: 14 bit
Sampling cycle: 0.5 Sec
Power : AC 100-240V 50/60HZ
Process value (PV), Setting value (SV)
PIN control (including ON/OFF, step-type PID and continuous PID)
Self-tuning control
Relay output: contact capacity 250V AC 3A (resistive load)
Proportional band (P): 0~full range (ON/OFF control when set to 0)
Detective temperature range: 0 to 900 Celsius
Insulation resistance: more than the 50M ohm(500V DC)
Insulation resistance : 1500V AC/min
Insulation resistance : Power Consumption Less than 10 VA
Service environment: 0~50 Celsius
Environment with no corrosive gas 30~85% RH
Aluminum Alloy Heat Sink
Specification:
Materail: Aluminium alloy.
Size:Roof:50mmX60mm.Foot:80mmX50mm.
Height:43mm.
Compatible with:Designed specially for single phase solid state relay.
Color :Silver
Max.40A SSR
Output Current:40A
Input Voltage:DC 3-32V
Output Voltage:24-380V AC
Output Voltage Range:Standard Type
Package Included:
1 x PID Temperature Controller
OR
1 x PID Temperature Controller
1 x K Type Probe Sensor
1 x Max.40A SSR

Gambar produk
