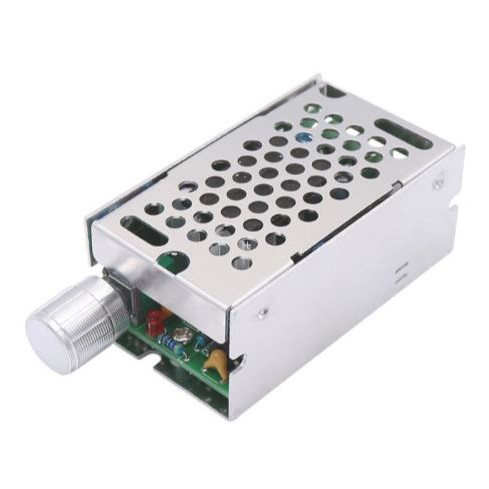

Detail Pengatur Kecepatan PWM for MOTOR 775 dan 795 (12V24V 10A) (545)

Potentiometer: resistance value B100K, opening 8mm
Working voltage: 10V－60VDC
Control power: 12V=72W, 24V=192W
Over current: within 10A
Speed regulation range: 0-100 (for example, the motor speed is 6000 rpm, and the speed regulation range is linear and smooth speed regulation between 0-6000 rpm)
PWM frequency: 21KHZ
Size description
Size: Length and width 73mm*39mm height about 31mm
Net weight: 61g

If the forward and reverse function is needed, the customer can connect the positive and negative switch by himself (connected to the line from the governor to the motor, not to the line from the power source to the governor).
