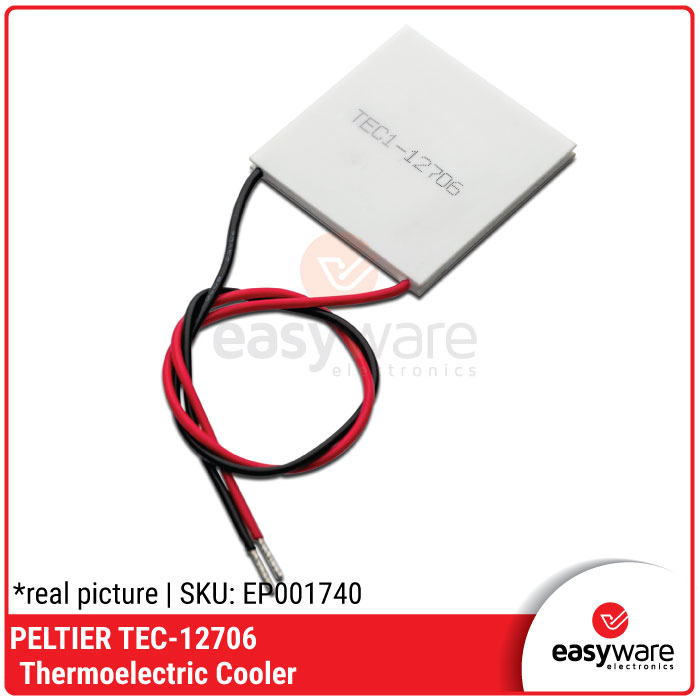

PELTIER TEC-12706 Thermoelectric Cooler

Detail PELTIER TEC-12706 Thermoelectric Cooler

Hi #RekanEasyWare ...
EasyWare Part#: EP001740

Catatan:
- Foto real stok EasyWare Electronics.
- Panjang kabel sekitar 20cm

FITUR :
- Get ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications from CPU coolers to alternate power sources, or even for your own custom car drink warmer/cooler.
- Since they consit primarily of semiconductor material sandwiched between ceramic plates and have no moving parts
- These devices must be used in conjunction with a heat sink to avoid burned
- Each device is full inspected and tested
- Fitted with 6-inch insulated leads

SPESIFIKASI :

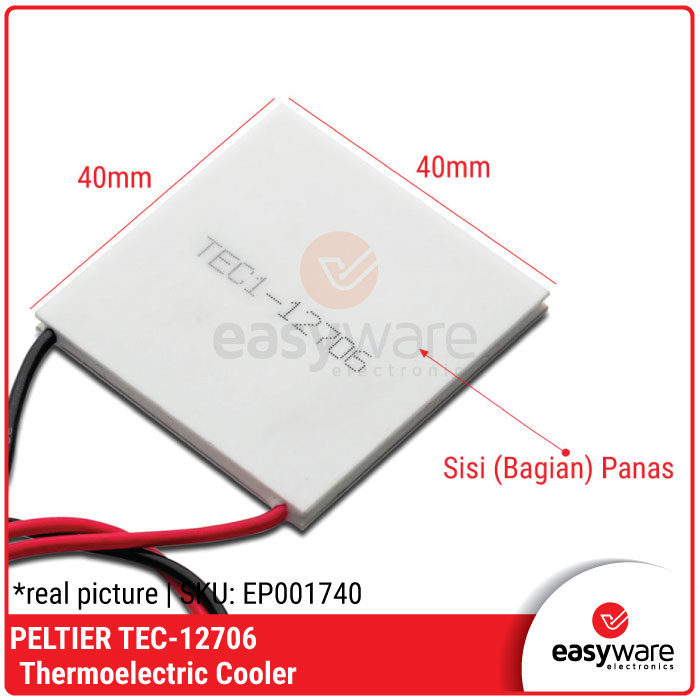

- External dimensions: 40 * 40 * 3.75mm
- Internal resistance: 2.1 ~ 2.4Ω (ambient temperature of 23 ± 1 'C, 1kHZ Ac test)
- The maximum temperature difference: Tmax (Qc = 0) above 59 'C.
- Working current: Imax = 4.3-4.6A (rated at 12V)
- Rated voltage: 12V (Vmax: 15V starting current 5.8A)
- Cooling power: Qcmax 55W
- Working environment: temperature range -55 'C ~ 83'C (high ambient temperature drop directly affect the cooling efficiency)

KELENGKAPAN :
- 1pcs Thermoelectric Cooler Peltier TEC1-12706
