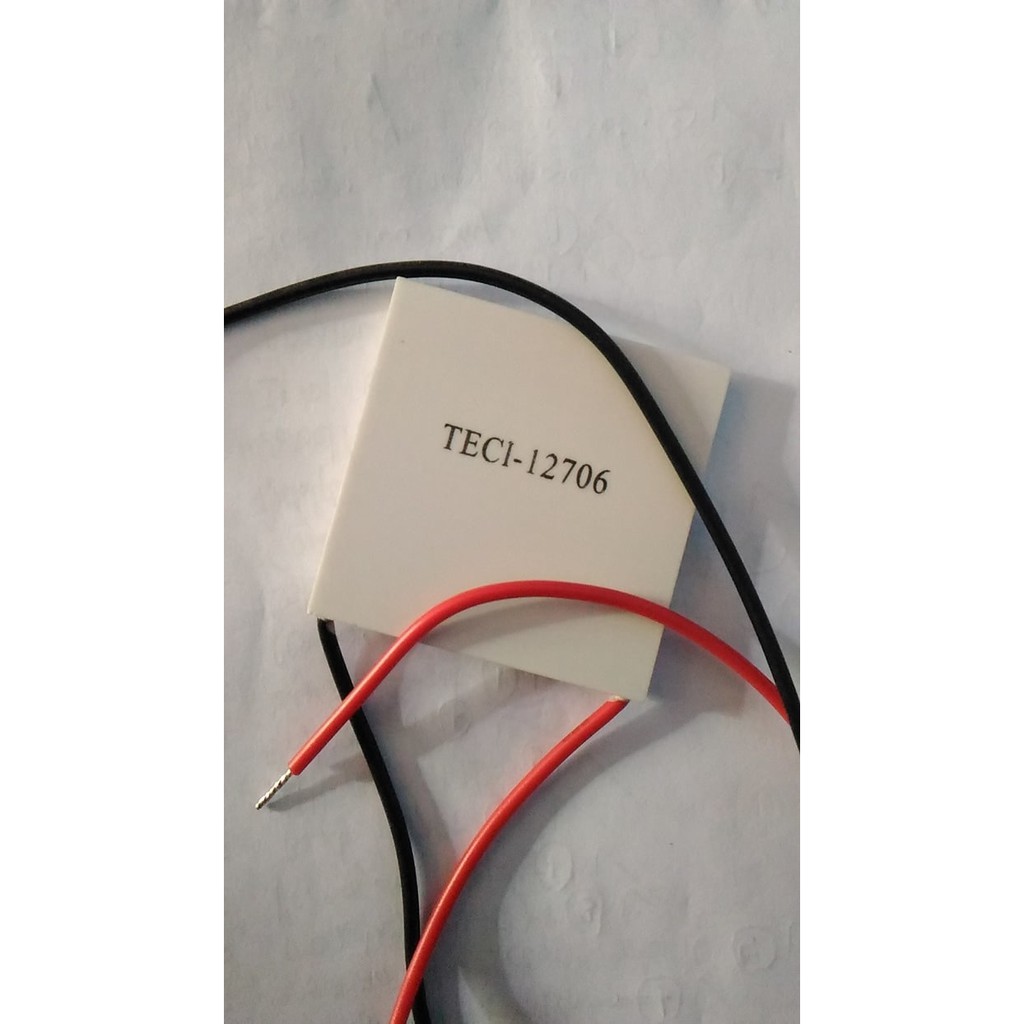

Detail peltier peltir TEC1-12706 supports multi-stage cooling original
ukuran 40mm x 40mm
Dimensions: 40 * 40 * 3.8mm Number of Pairs 127 Conductor Size: Lead Length 100 5mm RV Standard Lead 5mm 5mm Tin Internal Resistance: 2.4 ~ 2.7 (Ambient Temperature 23 1 , 1kHZ Ac test) The maximum temperature difference: Tmax (Qc = 0) 61 above. Operating current: Imax = 5 (rated voltage at startup) Rated voltage: DC12V (V max : 15.5V)Cooling power: Qcmax 45W Mounting pressure: 85N / cm2 Working environment: Temperature range -55 ~ 83 Temperature will directly affect the cooling efficiency) Package process: around the standard 704 silicone rubber seal. Packaging standards: foam box, storage conditions Ambient temperature -10 ~ 40 Storage conditions: -40 ~ 60
Gambar produk
peltier peltir TEC1-12706 supports multi-stage cooling original
