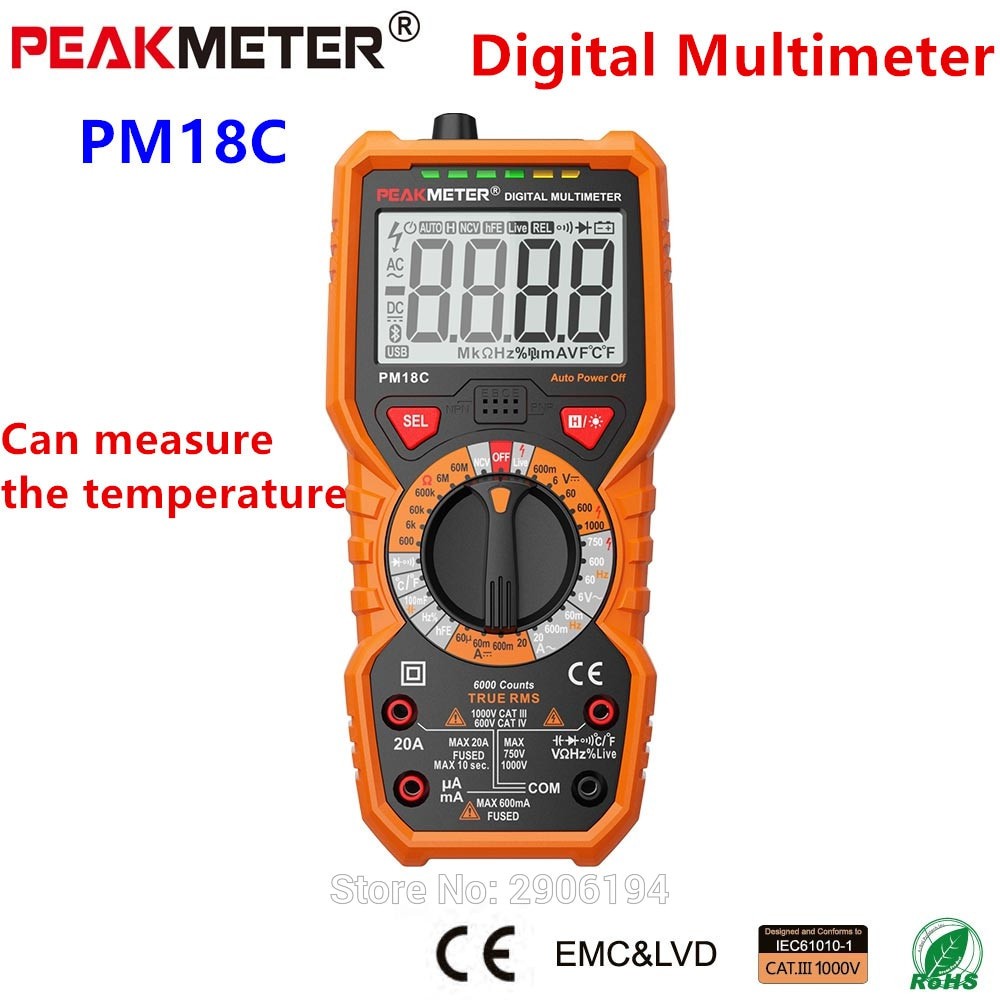

PEAKMETER PM18C DIGITAL MULTIMETER

Detail PEAKMETER PM18C DIGITAL MULTIMETER

Products Properties:
Brand: Peakmeter
Display Type:Digital Display
DIY Supplies:Electrical
Model: PM18/PM18C
Power by: 4*1.5V AA battery
DC voltage measurement: 600mV / 6V / 60V / 600V / 1000V ± (0.5% + 2)
AC voltage measurement: 6V / 60V / 600V ± (0.8% + 3) 750V ± (1.0% + 10)
DC current measurement: 60μA / 60mA / 600mA ± (0.8% + 3) 20A ± (1.2% + 3)
AC current measurement: 60mA / 600mA ± (1.0% + 3)
20A ± (1.5% + 3)
Capacitance measurement: 6nF/ 60nF / 600nF / 6uF / 60uF / 600uF / 6000uF/100mF (Max 100000uF)

Resistance Measurement: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ ± (0.8% + 3) 60MΩ ± (1.2% + 3)
Frequency Measurement(PM18): 10Hz ~ 10MHz ± (1.0% + 3)
Duty cycle measurements: 1% ~ 99% ± (2.0% + 2)
Temperature Measurement(PM18C): -20 C -1000C± (1.0% + 3), -4 F -1832 F ± (1.0% + 3)
Display: 6000 count

Package included:
1 x Multimeter
2 x test probs

1 x thermocouple (just for PM18C)
1 x user manual

Features:
- Overload protection and battery voltage indication
- Ideal for professions, factories, schools, amateur and home use
- Manual range, data hold, non-contact detector, diode test, transistor and continuity
- Inbuilt flashlight, convenient lighting tool
- Powered by 4 x 1.5V AA batteries ( not included )

• MAJOR FUNCTION - The meter comes with a K-Type thermocouple for temperature measurement up to 1000 degree Celsius, without the probe connected it will measure the ambient temperature. With the comprehensive set of features, you can measure AC/DC Voltage, AC/DC Current, Resistance, Live Line testing, Diode, Capacitance, Frequency and more.

• CUSTOMER SATISFACTION - CE, ROHS, EN61010-1-2-030 CAT III 1000V CAT IV 600V EN61010-2-033 certified
