PCIE SATA III 2 Port Adapter Card With Low Profile

Detail PCIE SATA III 2 Port Adapter Card With Low Profile

Features & details

PCIe 2.0 X1 to 2 SATA 3.0 6Gbps interface, backwards compatible with SATA II/I.Work with SATA HDD, SSD, Optical Drive and Blu-Ray Drive. Support OS booting from sata drive (AHCI Boot), but can not support booting from RAID drive.

PCIe 2.0 X1 bandwidth, PCIe X1/X4/X8/X16 lane for installation, rugular and low-profile bracket include for 4U/2U frame. Up to 400MB/s per port under PCIe 2.0 condition.

ASM1061 Chipset, Port Multiplier FIS-based and Command-based switching supported.Hot plug and Hot swap SATA ports. Support Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.

Software RAID Supported, not hardware RAID. If your motherboard has RAID function, you could make a RAID with this SATA Card.

Compatible with Windows XP/7/8/10/MAC/NAS/Linux OS. No driver installation is required. Support install Windows OS from Win10 PE.

Features:

ports: 2*SATA 3.0(Max 6.0 Gbps)

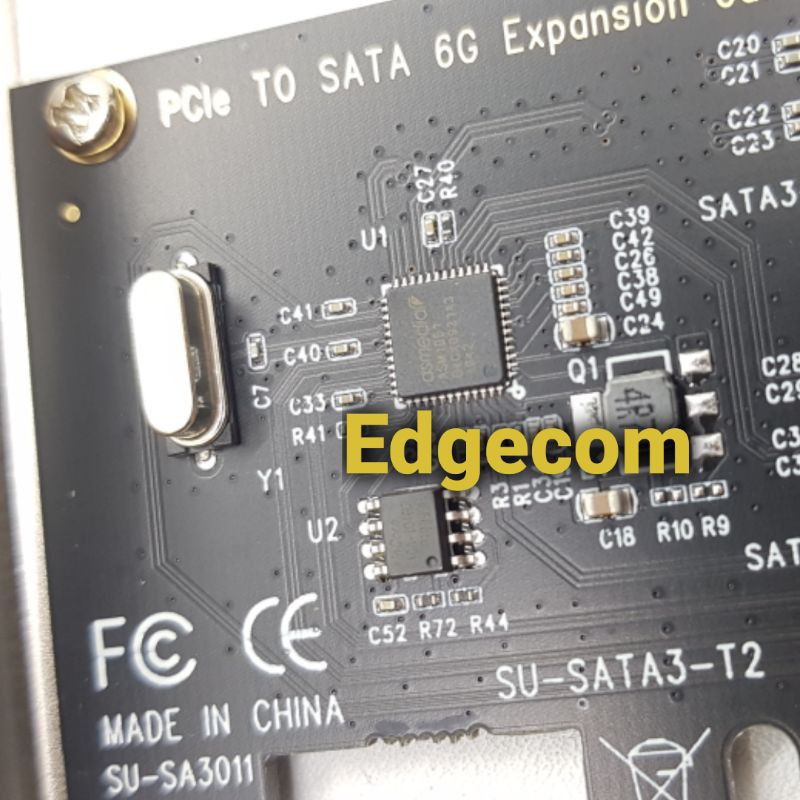

chipset: ASMedia ASM1061

support 12T hard drive for each port

Installation: PCI-E X1, compatible with PCIe X1/X4/X8/X16

Frame: 2U and 4U

O/S Support: Windows XP/2003/Vista/win7/win8/win10(32/64 bit)/MAC/NAS/Linux

Note:Nonsupport hardware RAID mode.

Package including:

1 x PCIe 2.0 X1 to SATA III 2 Ports Adapter Card

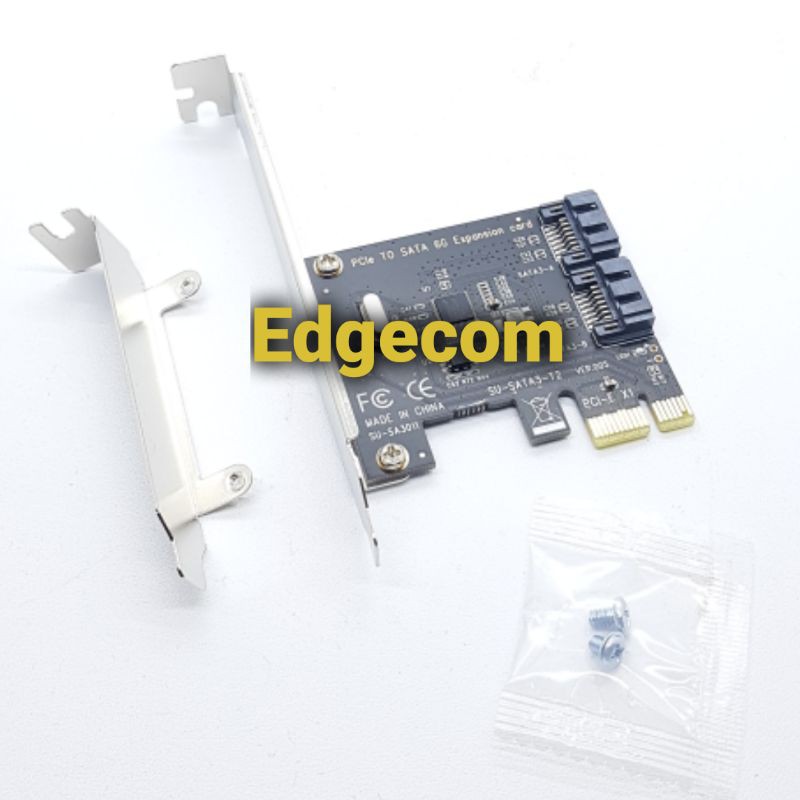

1 x low profile Bracket

Please be Kindly Noted： Our SATA-T2 is a very mature solution, the products are very stable, and some customers encounter unrecognized problems. Please use the CD-ROM to install the driver, or mail us for technical support. We promise to solve your problem, of course, if it is not recognized because of the extremely individual motherboard, this is not a product issue, we will give you a free return and full amount refund. thank you!
