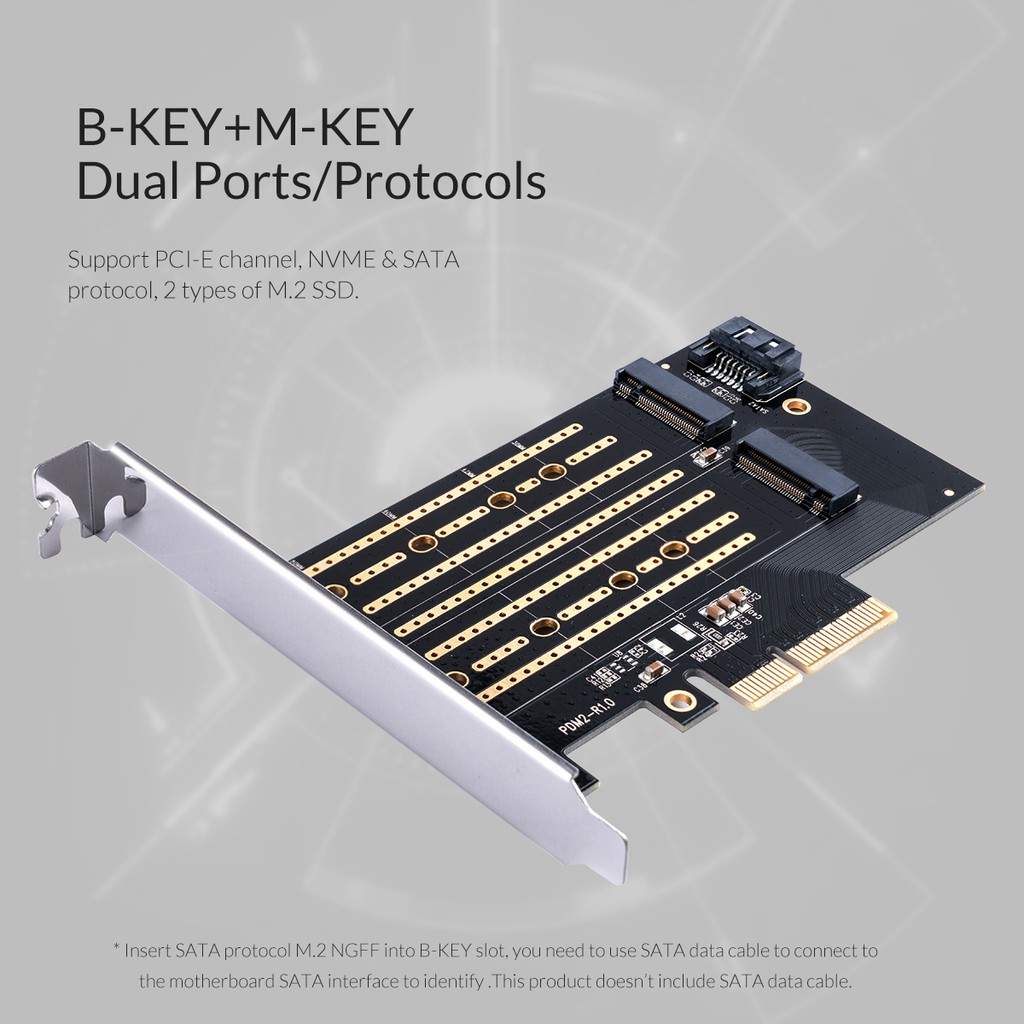

Note : B key SSD requires SATA 7 pin cable connected to motherboard to function. Note : M.2 PCIe-NVMe mode SSD requires the use of Intel® 9 series (Z97 H97 Z170 X99) or higher version chipset motherboard with Windows 8 or higher version operating system. Note : If your operating system is incompatible with the expansion cards, such that your device can not be detected or recognized, please update your motherboard’s driver or BIOS to the latest version. You may also try executing compatible mode in your operating system and select previous versions of operation system to install driver required by the expansion cards.
If you wish to boot off using M.2 SSD, your motherboard needs to support it. Due to BIOS limitations, not all motherboards support booting off M.2 SSD so please consult your motherboard manual or vendor for more details on how to enable this function.

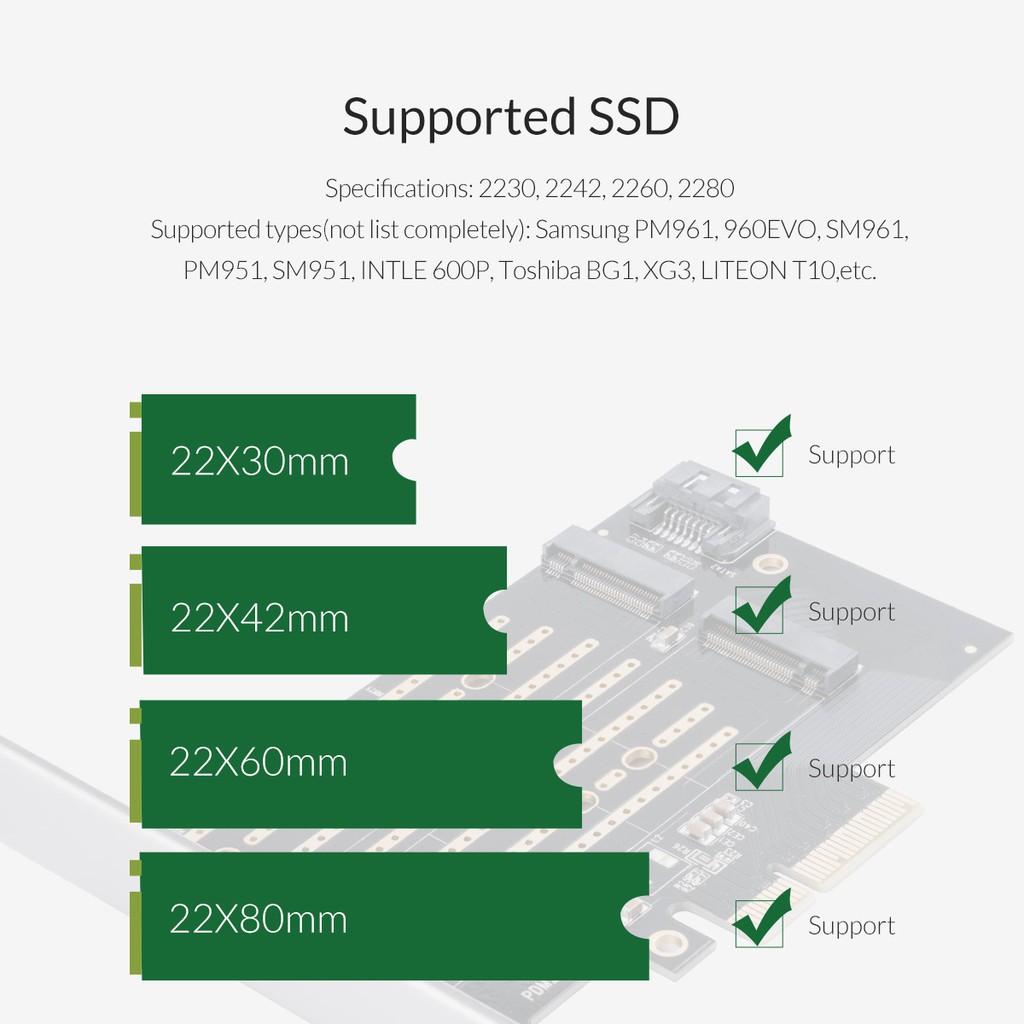

M.2 SSD Size - Type 2230 = P: 30mm x L: 22mm - Type 2242 = P: 42mm x L: 22mm - Type 2260 = P: 60mm x L: 22mm - Type 2280 = P: 80mm x L: 22mm

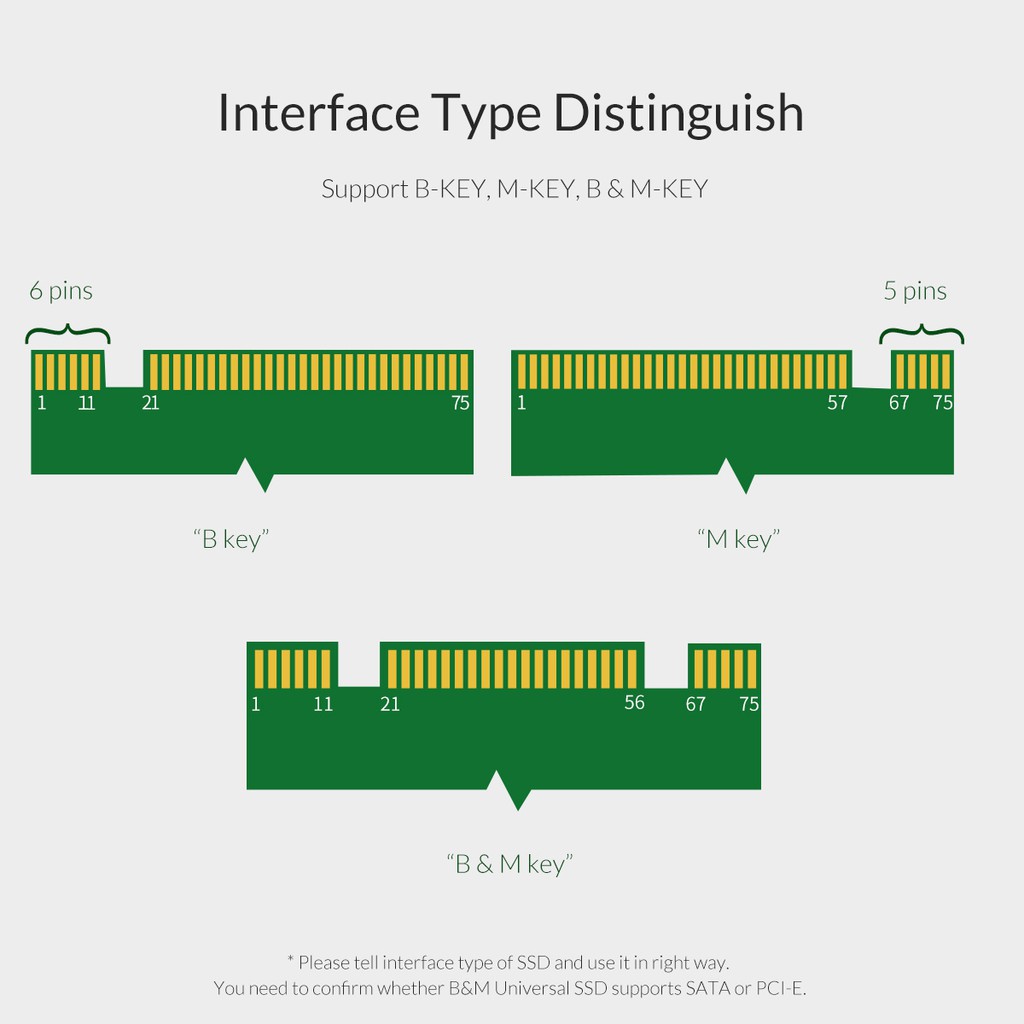

( SUPPORT FOR SSD M.2 B-KEY SATA / NGFF and M.2 M-KEY NVME )
