PCI Express Sound Card 5.1 CMI 8738 PCI E

Detail PCI Express Sound Card 5.1 CMI 8738 PCI E

Features :

Enjoy compelling 3D audio and 4-channel sound on multiple speaker series
HRTF-base 3D positional audio, supporting DirectSound 3D, EAX and A3D interfaces
Supports multi-speaker output to 4/6 speakers
Supports EAX, karaoke key, and Echo sound effects
Complies with Microsoft PC99 specification
Wave table synthesizer: DLS-base Wavetable music synthesizer
Software compatibility: fully Sound Blaster, Sound Blaster Pro and DirectSound compatible
External connector: Front OUT, Rear OUT, BASS, Line-in, MIC-in
Ordinary sound card sound card categories


Specifications :

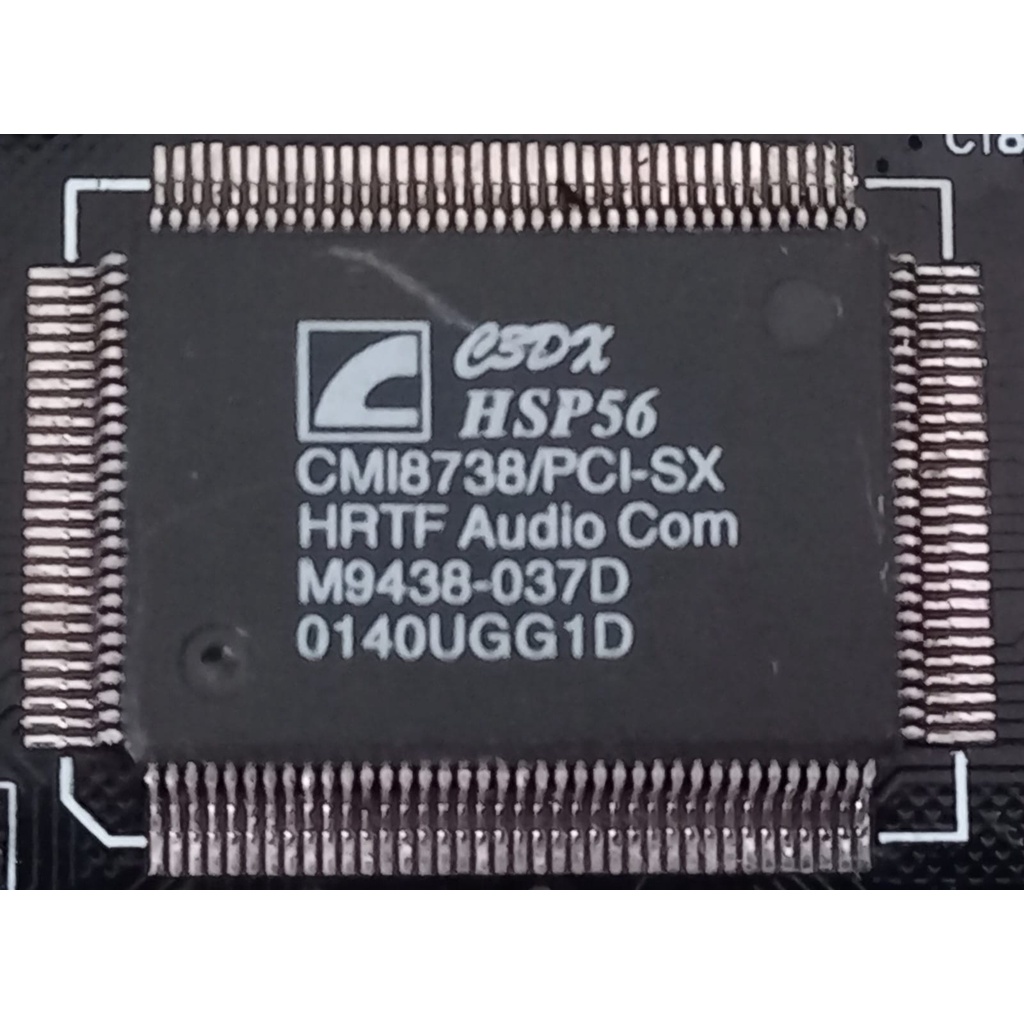

Chipset: CMI8738-SX
World only single chip solution with embedded codec saving customer total BOM cost
32-bit PCI 2.1 compatible bus master.
8738-SX supports 4CH DAC surround output for movies and 3D games.
Built-in 32ohm earphone buffer.
Built-in 2CH 16bit ADC.
Supports full-duplex 44.1K/48KHz sample rate playback and recording at 16bit.
Supports analog mixer for Line-in, Mic-in, Aux, CD inputs.
Built-in Microphone pre-amplifier (+20dB).
MIDI MPU-401 port/ game port.
Built-in ZV port.
Legacy audio SBPRO compatible.
External E2PROM interface for custom Sub-VID/PID.
Digital power +3.3V, analog power +5V.
Industrial 128-pin QFP package

Support : Win XP , Win 7 , Win 8 , win 10
