Detail Pci express Ngff-Nvme ssd m.2 2 port x4 adapter - Pci-e m2 M-key B-key

Ready Stock !!

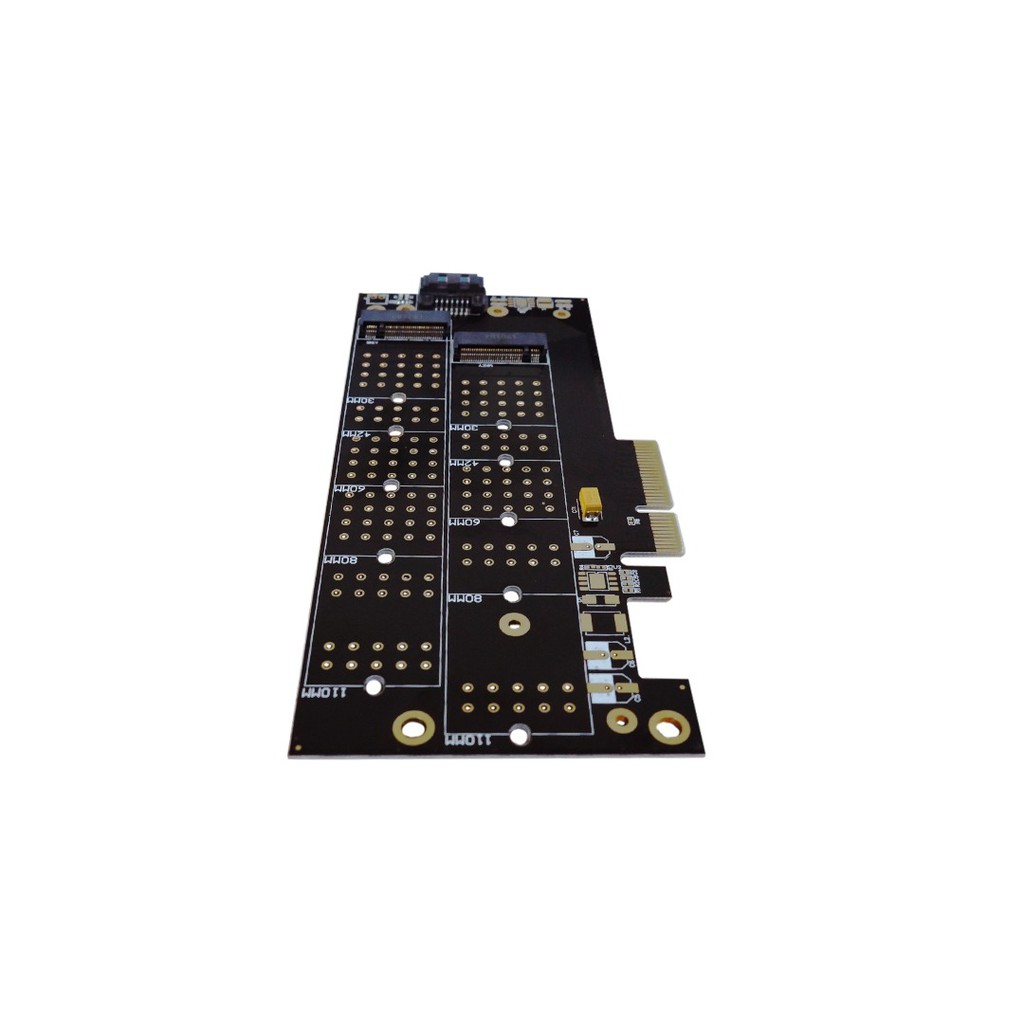

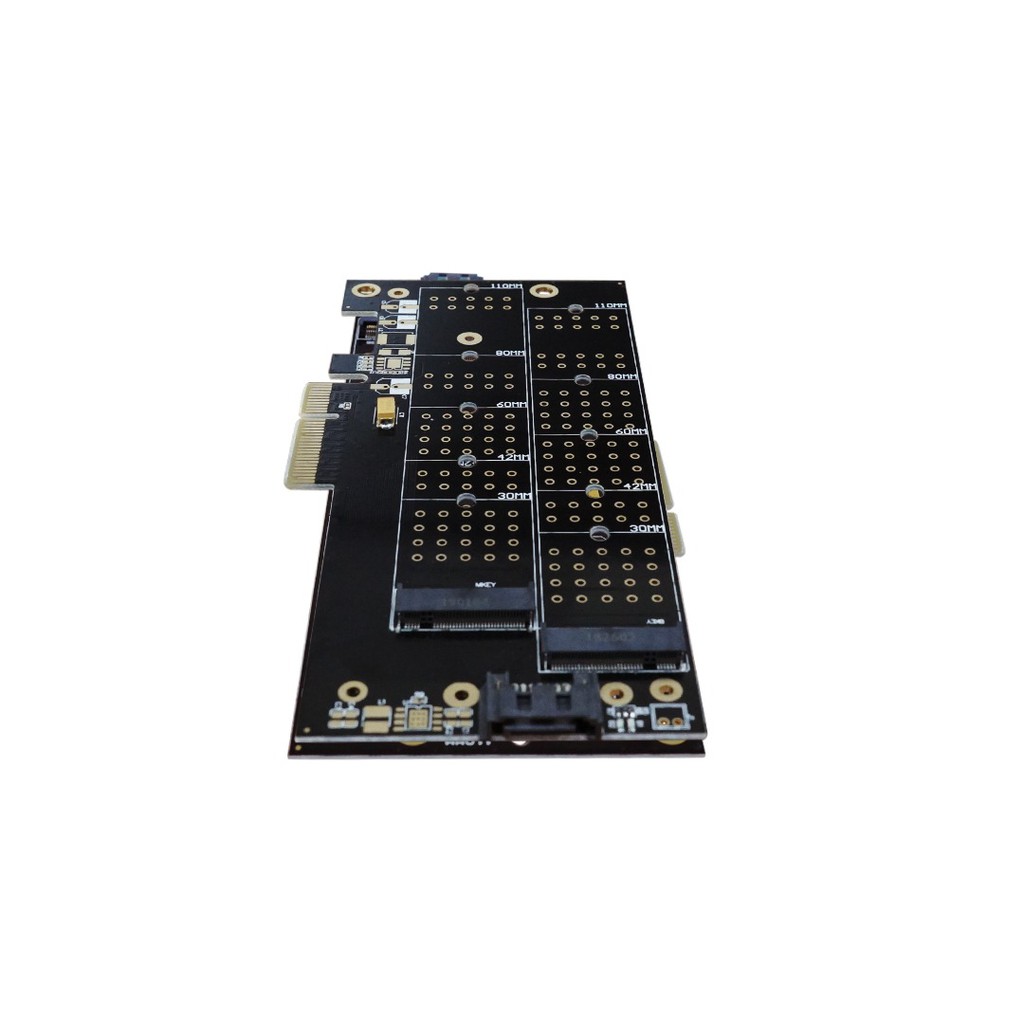

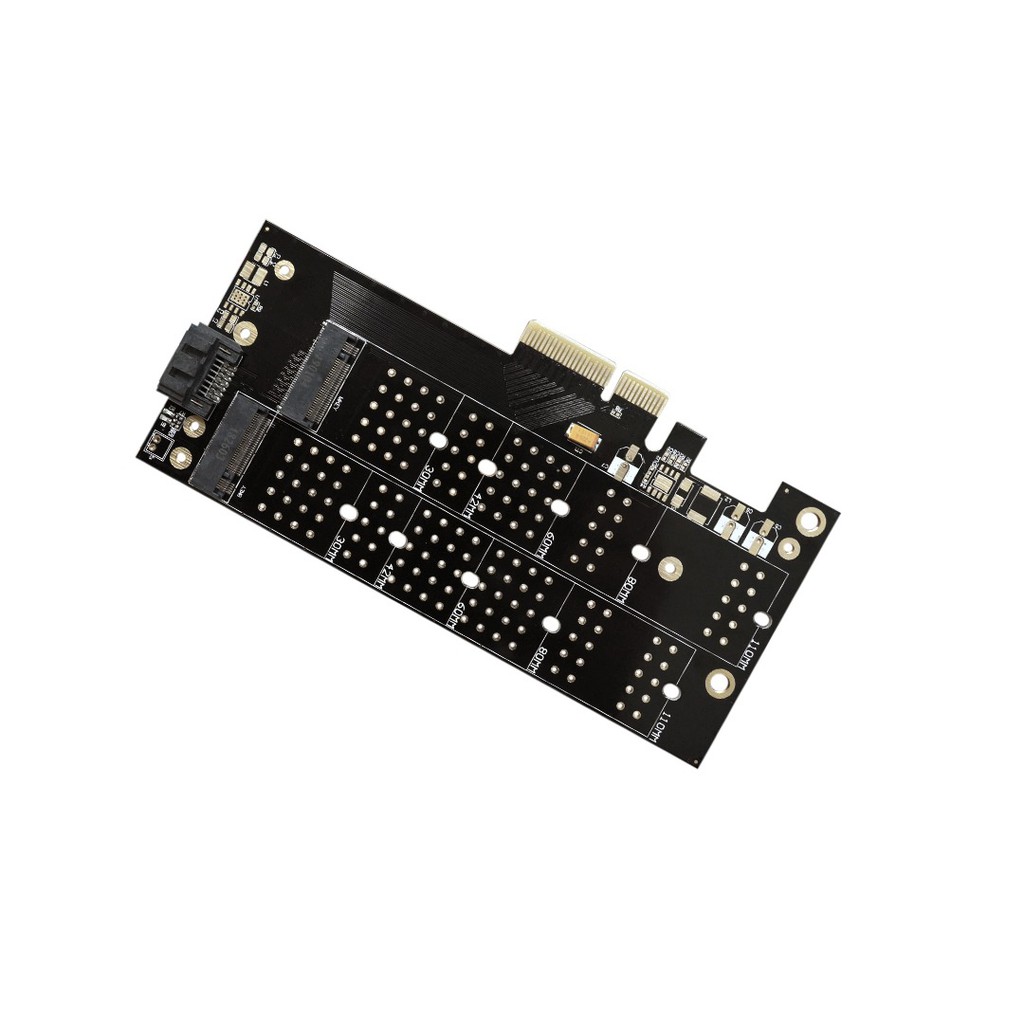

2 Slots Adapter Card of M key (NVMe) and B Key (SATA) M.2 NGFF SSD

Features:
1. M key M.2 NGFF SSD to PCI-E X4 adapter or B key M.2 NGFF SSD to SATA adapter.
2. The speed and other properties is not changed, only change the interface type and without any software or drivers.
3. Support size: 22*30mm, 22*42mm, 22*60mm, 22*80, 20*110
4. Macth with two kinds of Metal sheet (length:8 cm, 12 cm)

Package content (wtih retail box):

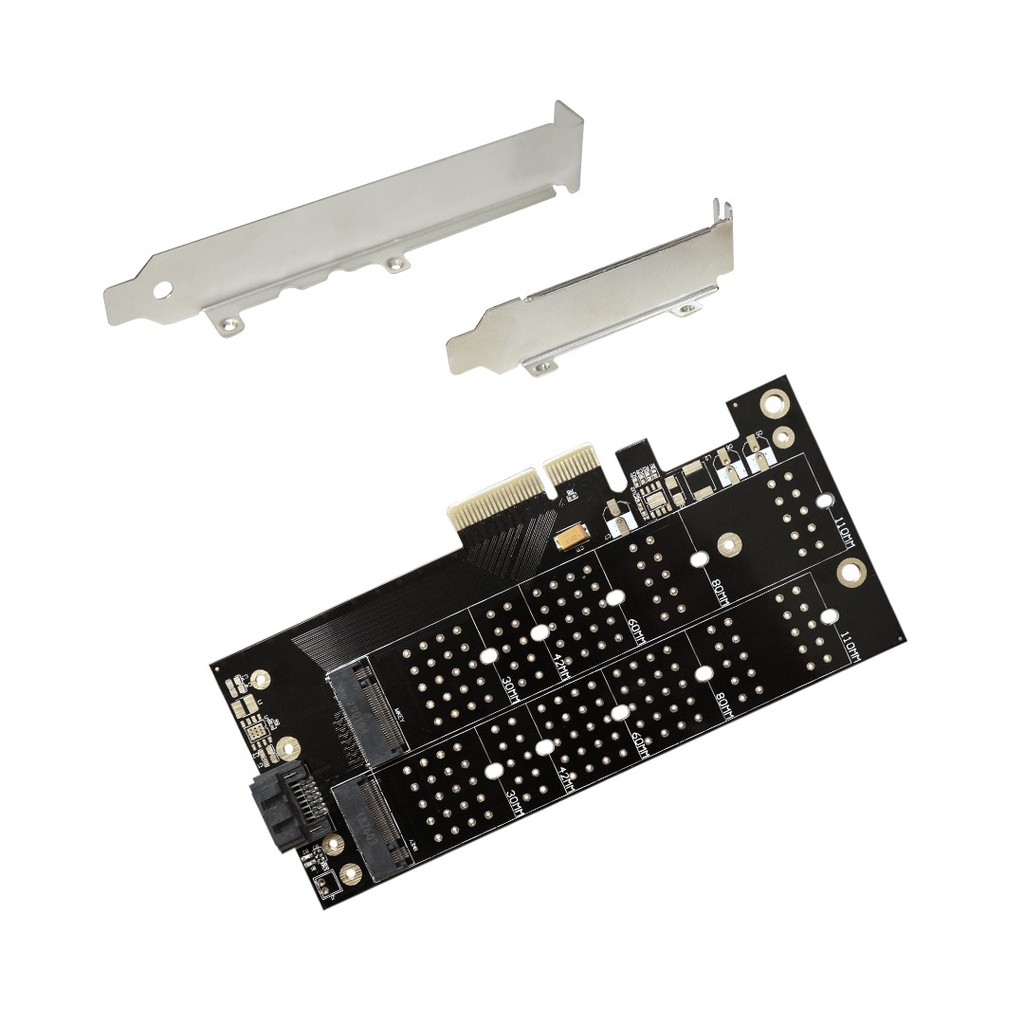

1 X 2 slots adapter Card for M.2 SSD
2 X Metal sheet (High and Low Profile)

Catatan (utk motherboard mainstream):
1. Apabila M.2 NVMe digunakan sbg boot OS (primary drive) maka M.2 SATA di slot B key akan terbaca sbg secondary drive.
2. Apabila M.2 SATA digunakan sbg boot OS (primary drive) maka M.2 NVMe di slot M key TIDAK akan terbaca di Windows (Kesimpulan: NVMe tidak bisa sbg secondary drive di adapter).
3. Kabel data SATA hanya perlu dipasang di slot SATA MB bila ingin memakai M.2 SATA.
4. Support Windows 7/8/8.1/10
Utk dapat menginstal W7 di NVMe perlu instal driver NVMe dan driver USB 3.0 dibuat dalam 1 file ISO Windows
