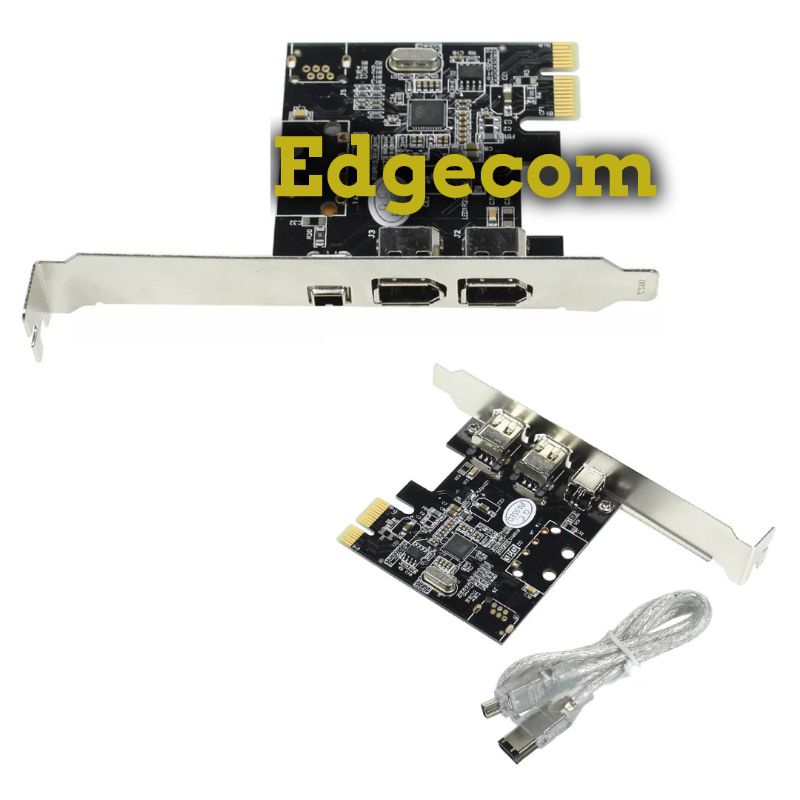

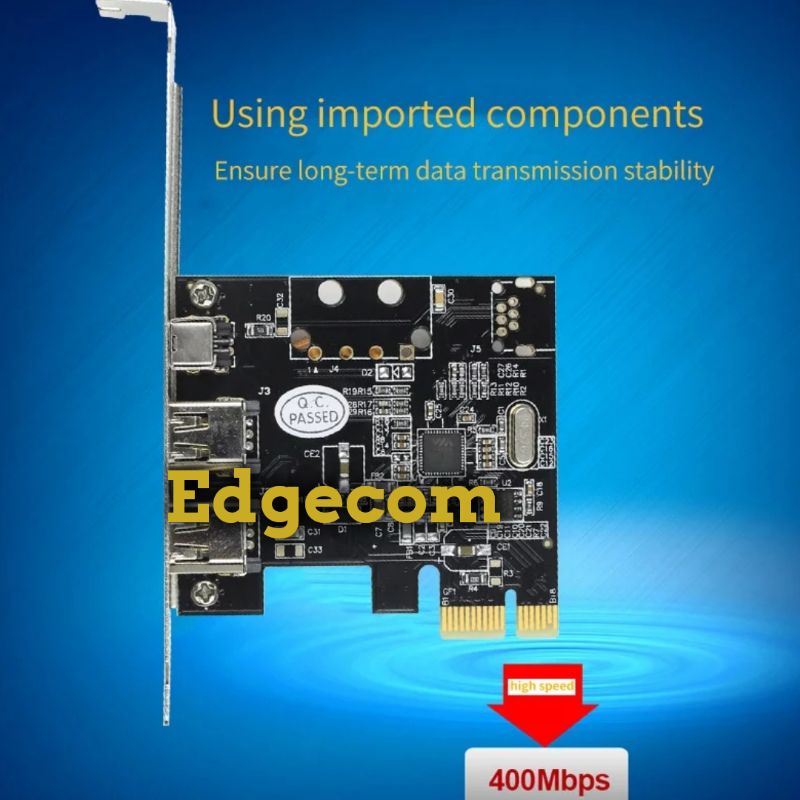

PCI Express Firewire 1394A 3 Port (2×6pin dan 1x4pin)

Detail PCI Express Firewire 1394A 3 Port (2×6pin dan 1x4pin)

Description

Please kindly know that there are some problems on the compatibility with the VIA chip and DELL brand computer

There are sometimes issues with the Firewire in Windows 7, 8, 8.1, and 10. Please send email to seller help require to get things operational. Thanks

Features:

* Support Provisions of IEEE P1394b Revision 1.33+.
* Compliant with PCI-Express Revision 1.0a.
* Compliant with IEEE 1394 OpenHCI Specifications V1.0 and V1.1.
* Compliant with IEEE 1394-1995 for a High Performance Serial Bus.
* Compliant with IEEE 1394a-2000 Standard.
* Fully Backward Compatible to 1394a Specification.
* No Driver required for windows (plug-and-play).

* Attention: Don't Support hot-plugging. Before installation, Turn off the power and then plug in the power cord.

Specification:

* Lane (x1) PCI-Express with transfer rate 2.5Gb/s full duplex channel.
* Ports: 2x 1394a (9-pin, Bi-lingual), 1x 1394a (6-pin),
* Compatibility: Windows XP/Vista/7 (32/64 bit)
* Supports Data Transfer Rates: 100Mbps/200Mbps/400Mbs
* Size: approx. 4.72"*3.93"*0.66"


Package Include:

1 x Controller Card
1 x Firewire Cable
(No CD driver)

Drivers for 1394 devices are built into Windows 98 2nd and above (included) operating systems, It does not need to download driver separately

Features & details

PCIe ieee 1394 firewire card adapter
Capture DV HDV HD Video from your camera to PC desktop
With a low profile bracket and a firewire cable, your best choice of firewire card for PC
VIA chip, Compliant with PCI-Express Revision 1.0a and IEEE 1394 OpenHCI Specifications V1.0 and V1.1.
No drive required, plug and play. Support Windows 98se/me/2000/XP/server 2003/Vista/7 32 bit /64 bit /win8/win10
