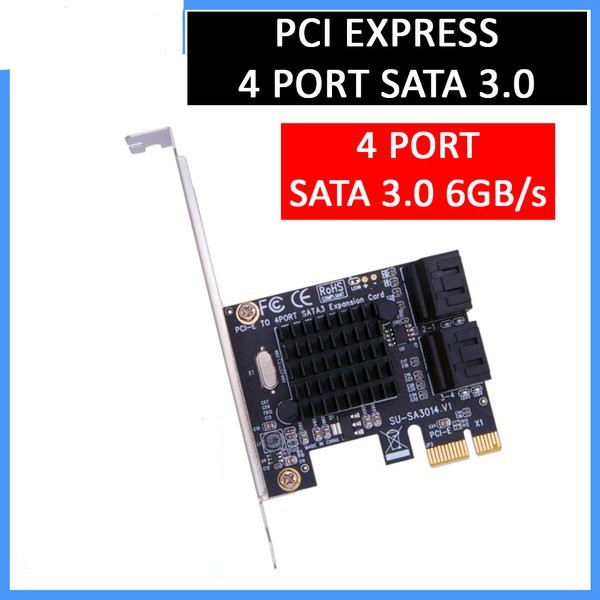

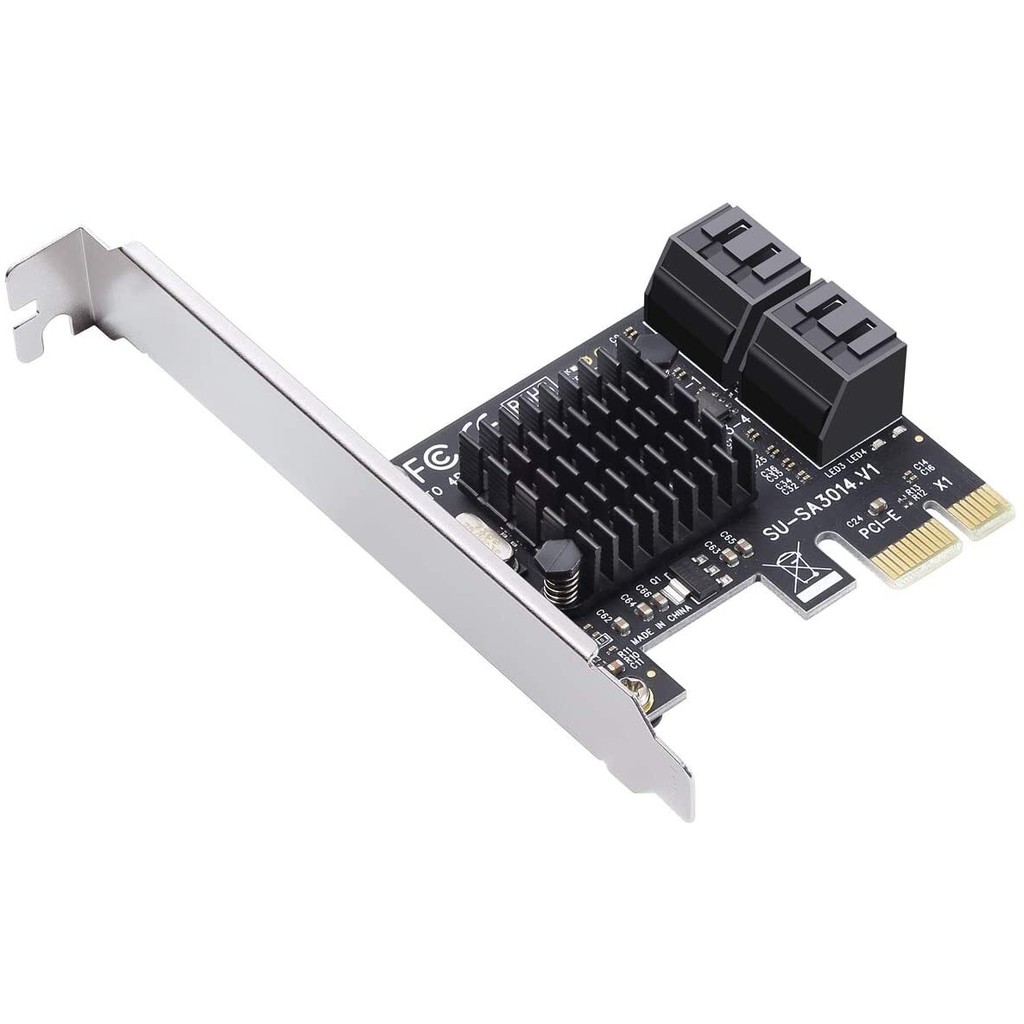

Pci express card x1 sata 3.0 4 slot 6Gbps adapter - Pcie Pci expansion sata III 7 pin 4 port

Detail Pci express card x1 sata 3.0 4 slot 6Gbps adapter - Pcie Pci expansion sata III 7 pin 4 port

Feature:
Product Name: 4-port SATA3.0 expansion card
Product model: PCE4SAT-M01
Product Master: Marvell 88SE92xx
Product packaging: cowhide box
Product Interface: PCI-E 1X 2X 4X 8X 16X
Support system: WINXP WIN7 WIN8 WIN10, LINUX, MACOS
Product specifications:
Compliant with Serial ATA 3.0 specification, backward compatible with SATA2.0 SATA1.0
Compliant with PCI-Express v2.0 specification, backward compatible with PCI-Express v1.0.
Supports communication speeds of 6.0 Gbps, 3.0 Gbps and 1.5 Gbps
Support Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.
Support 4 SATA
Support AHCI1.0 mode and IDE mode
Support for native command queue (NCQ)
Support FIS based on port multiplier switch or command switching.
Support hot swap and hot swap.
Compatible with SATA6G, 3G and 1.5G hard drives
Bus interface: PCI-Express x1 slot
Expansion interface: 4 SATA3.0 interfaces
System Requirements: One PCI Express X1 slot is available, supporting both PCI-E X2 X4 X8 X16
Operating system: Windows10/8/7 (32/64 bit) / Vista (32/64 bit) / XP/2003/2008/linux

Ready Stock !
