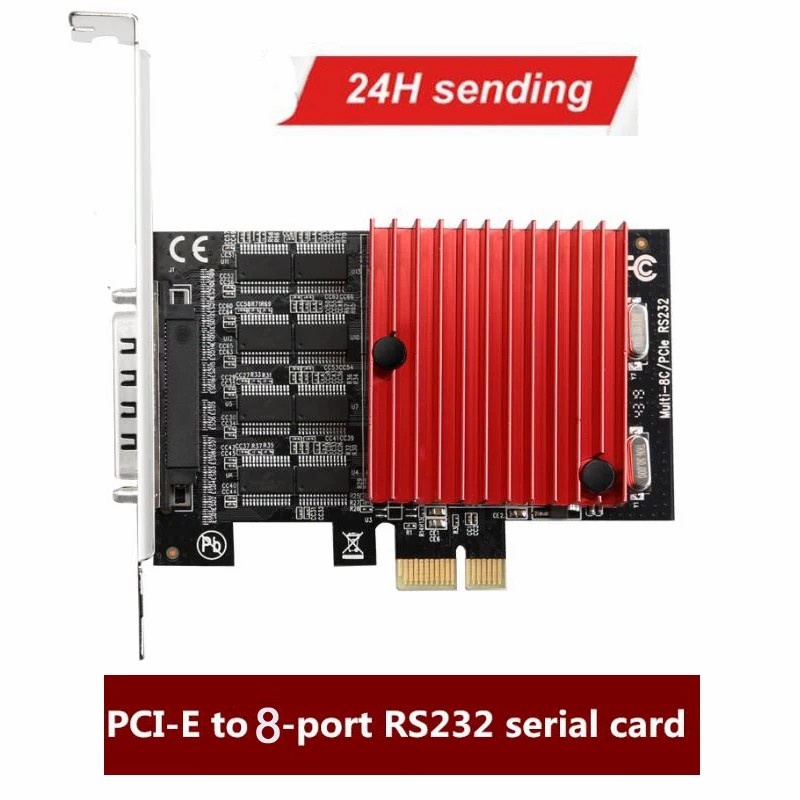

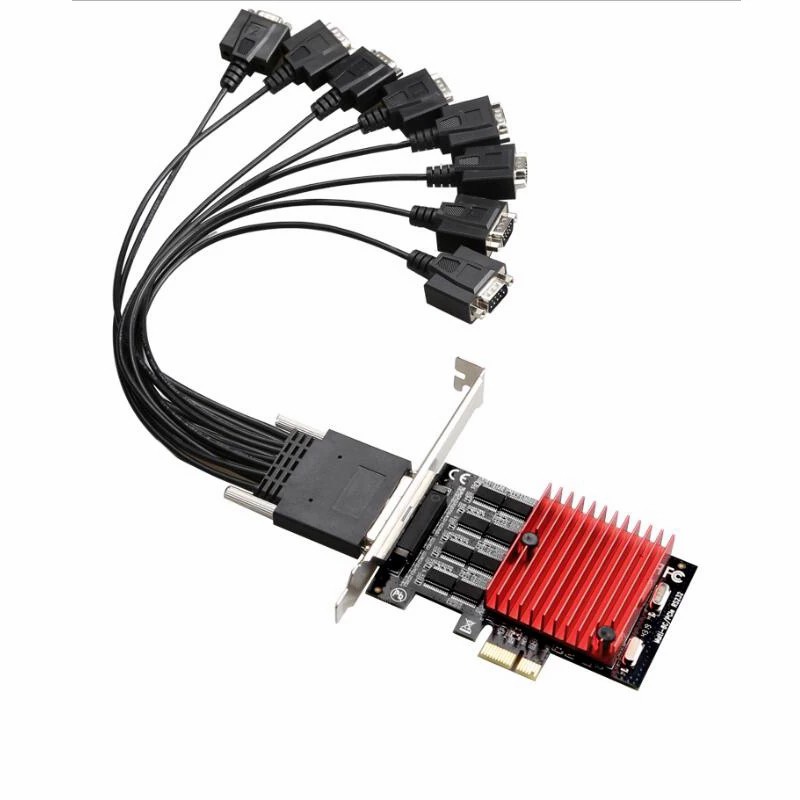

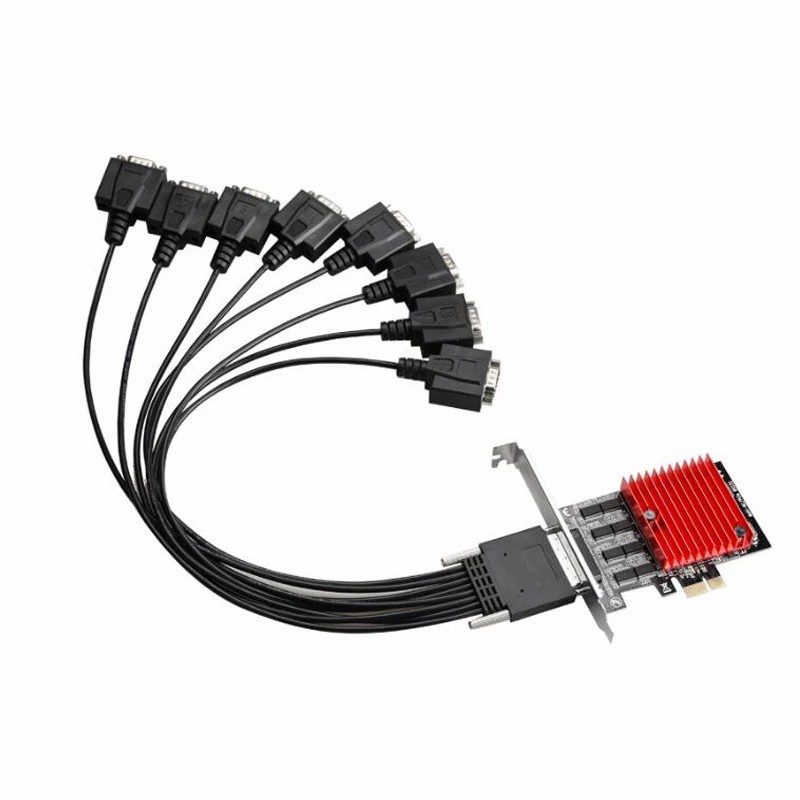

Pci express card x1 NB serial com db9 8 port asix - Pcie rs-232 rs232 db-9

Detail Pci express card x1 NB serial com db9 8 port asix - Pcie rs-232 rs232 db-9

Can be used to control touch screen, barcode
and other serial equipment.
Eight high-speed RS-232 serial ports with
data transfer rates up to 920 Kbps.
256-byte depth FIFO for each transmitter and
receiver.
Use hardware flow control Tx/Rx/RTS/CTS/DSR/
Automatic DTR/DCD/RI/GND.Supports automatic hardware flow control and
automatic software flow control to reduce
CPU load.
Complies with PCI Express version 1.1 dasar base specification
Specifications :

Product name : Adapter card
Support System: Windows 2000/ XP/Vista/Win 7/Win
8/Win 10 (32bit/64bit), Server 2003-2008 32/64-bit, Linux OS
Material: PCB
Color: Black
Size: 120x95x22mm
Cable length: 40cm

Note: -There may be a slight size error for the measurement
manual.-The color deviation may be different due to settings
different monitors, please understand.Packing list

Package includes:
1 x Adapter Card
1 x 8-port DB9 Cable

Ready Stock !
