Detail PCI Express Card M.2 NVME+NGFF M2 SATA Adapter

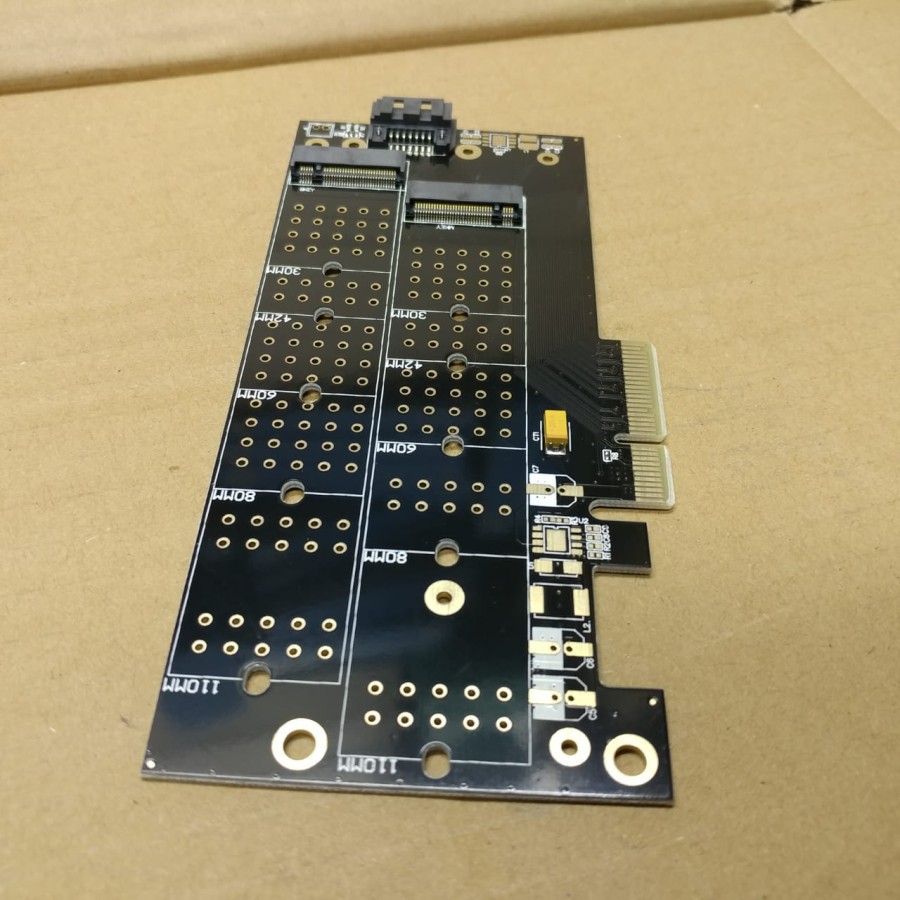

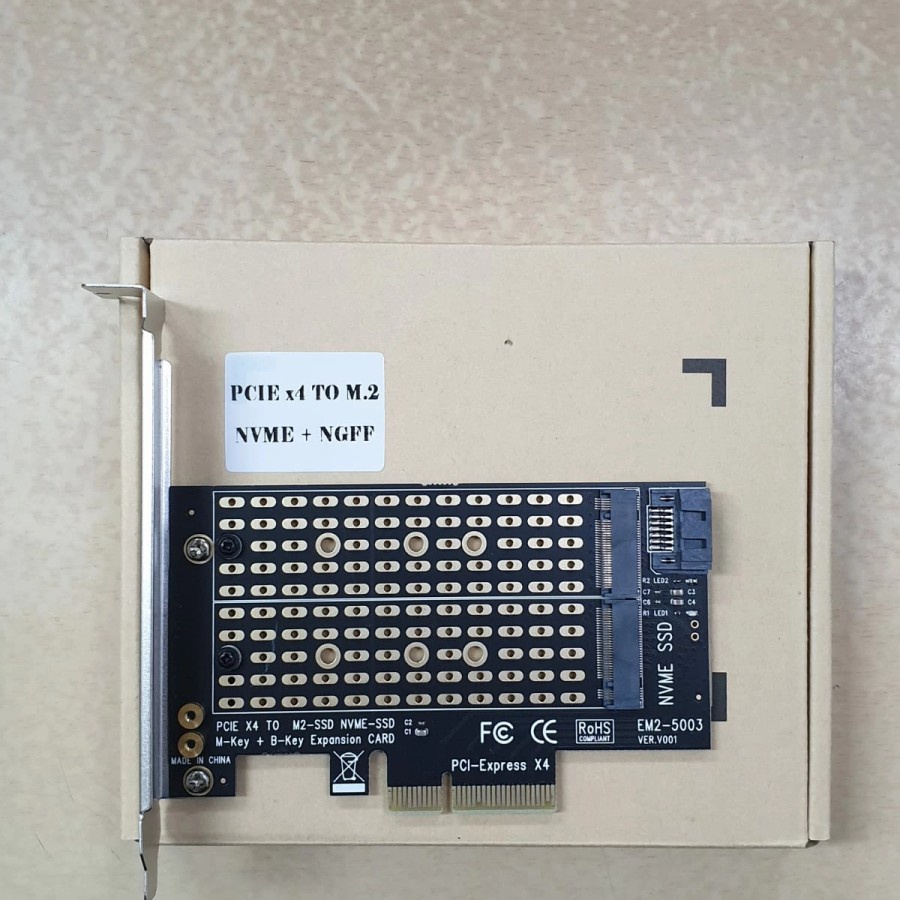

PCI Express M.2 Adapter Support NVMe and NGFF M2 SATA 2 Slots Adapter Card of M key (NVMe) and B Key (SATA) M.2 NGFF SSD
Features: 1. M key M.2 NGFF SSD to PCI-E X4 adapter or B key M.2 NGFF SSD to SATA adapter. 2. The speed and other properties is not changed, only change the interface type and without any software or drivers. 3. Support size: 22*30mm, 22*42mm, 22*60mm, 22*80, 20*110 4. Macth with two kinds of Metal sheet (length:8 cm, 12 cm)
Package content (wtih retail box): 1 X 2 slots adapter Card for M.2 NGFF SSD 2 X Metal sheet (High and Low Profile) 1 X 7pin SATA Cable
Catatan (utk motherboard mainstream): 1. Apabila M.2 NVMe digunakan sbg boot OS (primary drive) maka M.2 SATA di slot B key akan terbaca sbg secondary drive. 2. Apabila M.2 SATA digunakan sbg boot OS (primary drive) maka M.2 NVMe di slot M key TIDAK akan terbaca di Windows (Kesimpulan: NVMe tidak bisa sbg secondary drive di adapter). 3. Kabel data SATA hanya perlu dipasang di slot SATA MB bila ingin memakai M.2 SATA. 4. Support Windows 7/8/8.1/10 Utk dapat menginstal W7 di NVMe perlu instal driver NVMe dan driver USB 3.0 dibuat dalam 1 file ISO Windows.
