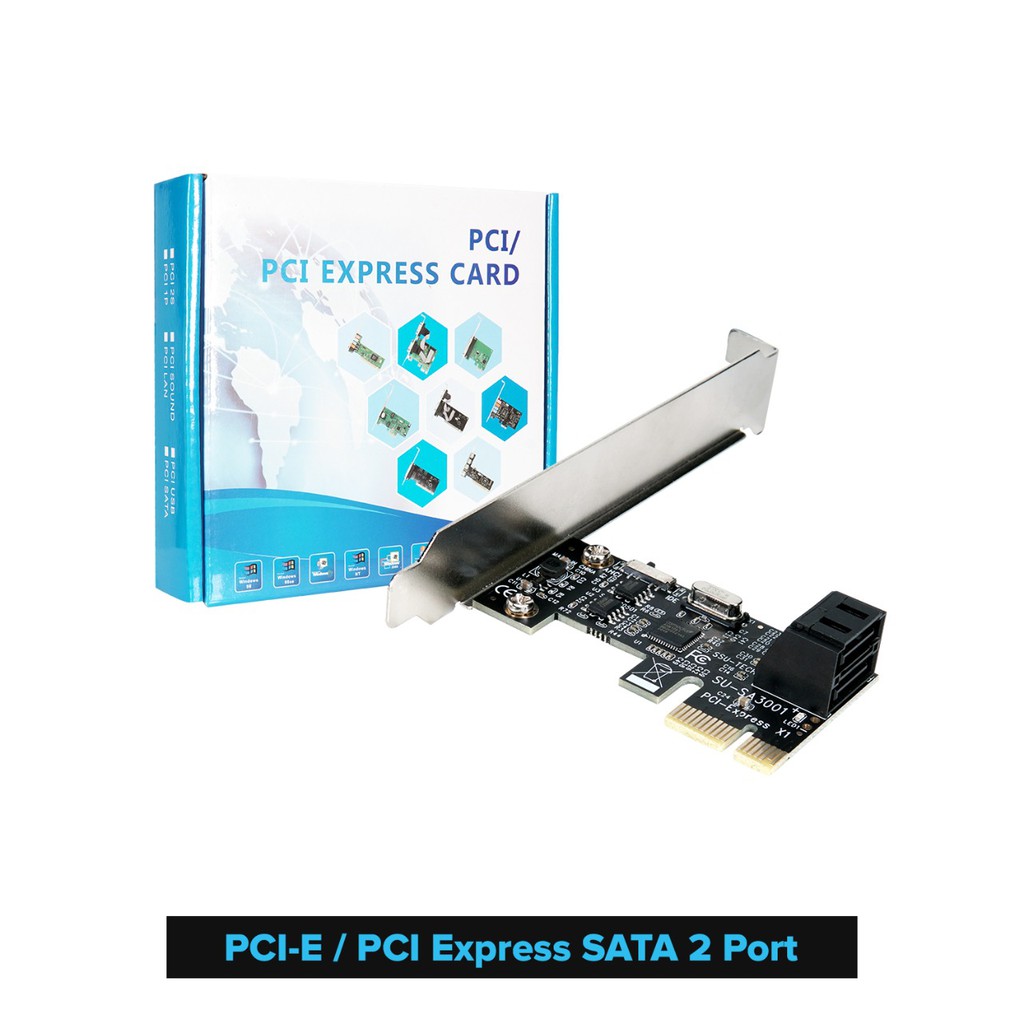

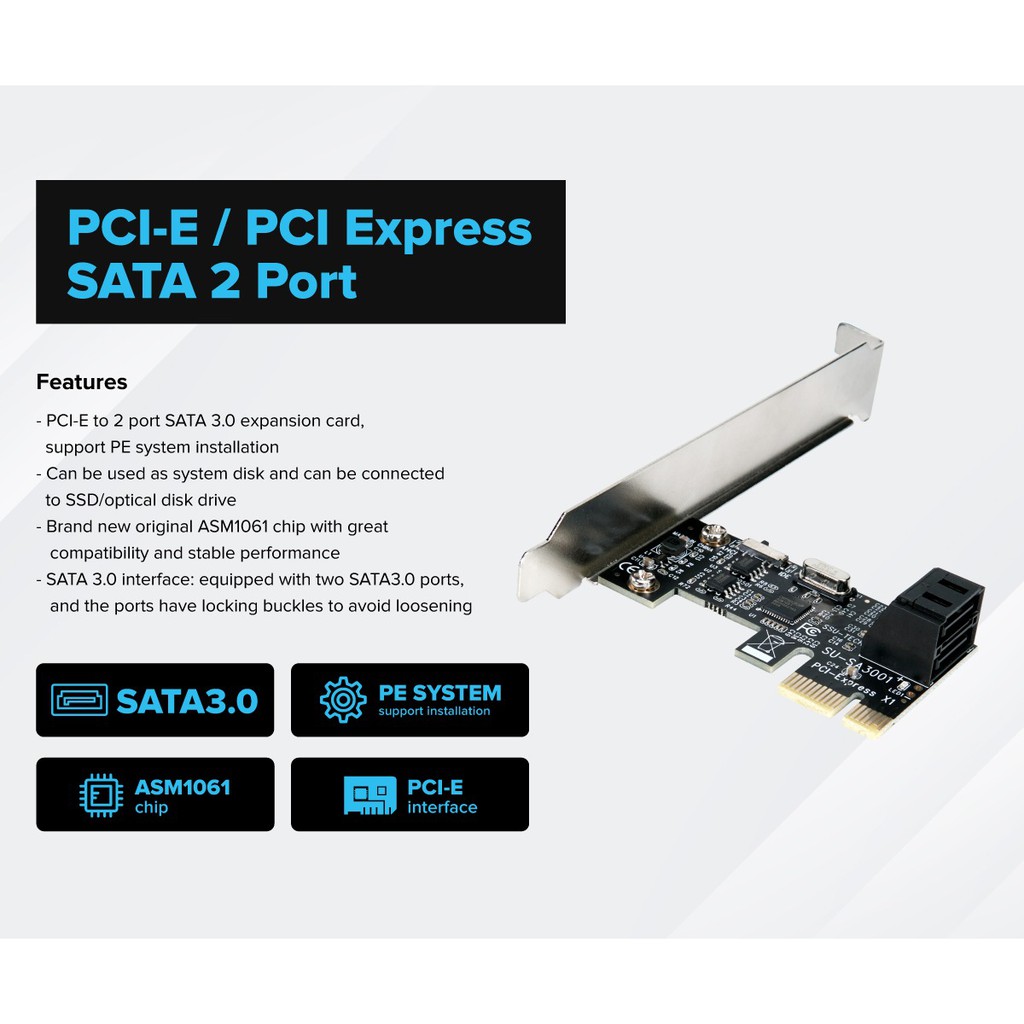

Pci-e x1 Sata 3.0 2 Port 6Gbps asmedia - PCI Express expansion Card 2 slot Serial ATA ide-ahci mode

Detail Pci-e x1 Sata 3.0 2 Port 6Gbps asmedia - PCI Express expansion Card 2 slot Serial ATA ide-ahci mode

Description:

Compliant with PCI-Experss specification V2.0 and backward compatible with PCI-Express 1.x
Comliant with Serial ATA Specification 3.0,Compliant with PCIe 2.0 specifications.
Supports communication speeds of 6.0Gbps,3.0Gbps and 1.5Gbps
Supports programmable transmitter signal levels
Supports Gen 1i,Gen 2i,Gen 2m, Gen 2x and Gen 3i
Applicable Slot: PCI-E (1x, 4x, 8x, 16x)
Supports Two SATA Ports
Supports AHCI Boot, IDE Boot, No Boot(Data Disk)
Supports Native Command Queuing(NCQ)
Supports Port Multiplier FIS based switching or command based switching
Supports Partial and Slumber Power Management states
Supports Hot Plug and Hot Swap
Compatible with SATA 6G,3G and 1.5G Hard Drives
Large chassis or small chassis can be used.
Bus Interface:PCI-Express x1
Connectors: 2 Port SATA 3.0
Chipset: ASMedia1061
Speed: Single Port Speed Up to 400MB
Function: for SSD HDD IPFS Mining
Feature: with switch change the AHCI, IDE, No Boot(as data disk)



System Support:
PCI Express-enabled system with on avaliable PCI Express slot
Windows10 8/7(32/64bit)/Vista(32/64bit)/XP/Server 2003/2008

Ready Stock !
