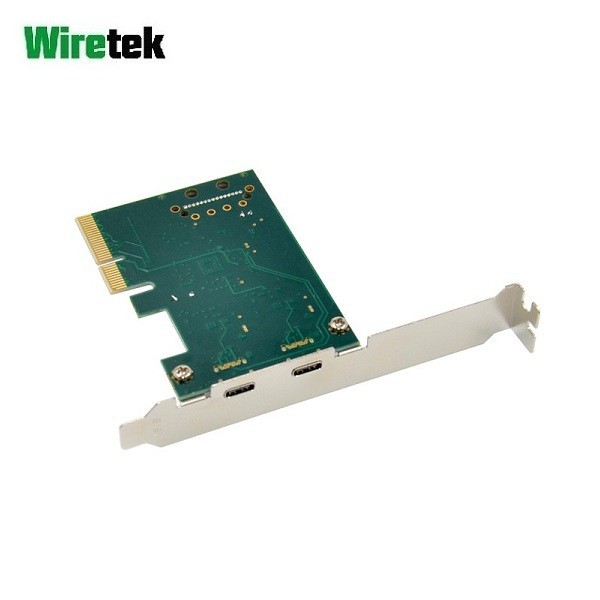

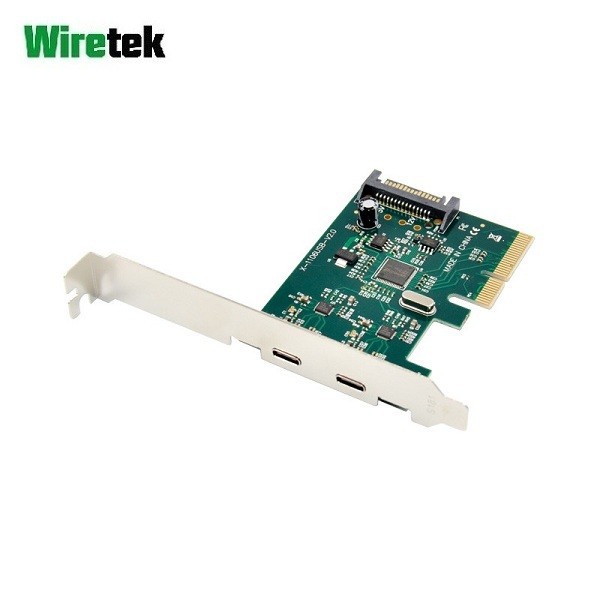

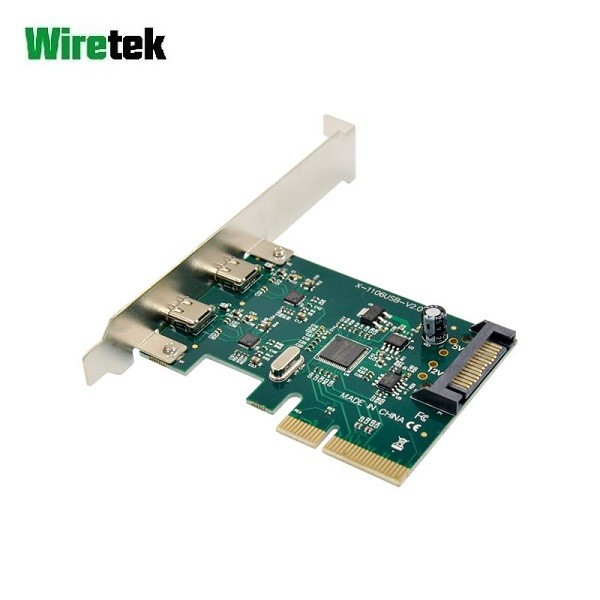

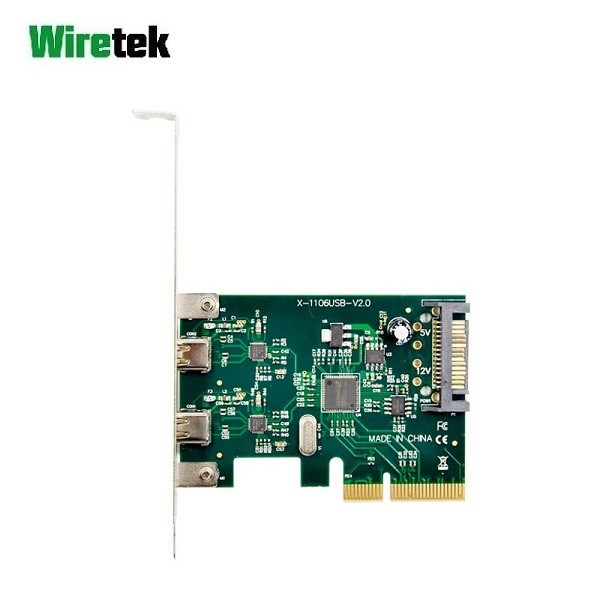

PCI-E Type-C Expansion Card 2port Wiretek

Detail PCI-E Type-C Expansion Card 2port Wiretek

■ This PCI Express Dual USB3.1 Type C expansion card converts the computer's PCIe high-speed data transfer interface into USB3.1 Type-A and USB3.1 USB-C high-speed data transfer interface
■ It is backward compatible with USB3.0, USB2.0 and The USB 1.1 device with a maximum transfer speed of 10Gbps.
■ Supports the hot-swap function of USB devices and is designed to provide faster and higher speeds for personal computers, consumer electronics and communication devices.

》Features :
• PCI Express Base Specification Revision 2.0 dual-lane (x2).
• Compliant with Universal Serial Bus 3.1 specification Gen2.
• Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.1.
• Supports simultaneous operation of multiple USB 3.1, 3.0, USB 2.0 and USB 1.1 devices.
• Supports USB data transfer rate of 10G/5G/480/12/1.5 Mbps.
• Expands dual external USB3.1 Super-Speed plus Type-A ports on the system.
• Each USB port supplies maximum +5VDC / 900mA power output to USB device.
• Built-in over current protection on each USB port.
• Support device remote wakeup function from USB keyboard or mouse.
• Hot-swapping feature allows connect/disconnect device without powering down the system.

》Specifications :
■ Brand : Wiretek
■ Chipset : Asmedia ASM1142
■ Bus Slot : PCI Express Spec 2.0, Dual-Lane (x2)
■ Interface : 2x Type C port
■ Data rate : Super Speed 10Gbps
■ System : Window Server 2003 / Vista / Win 7 / Win 8.x / Win 10 (X86/X64) (Windows in-box driver), Linux OS

》Package Content :
■ 1x PCI-E USB 3.1 Type C Expansion Card 2port Wiretek
■ 1x Mini Bracket
■ 1x CD Driver
■ Berat : 200gram

Gambar produk
