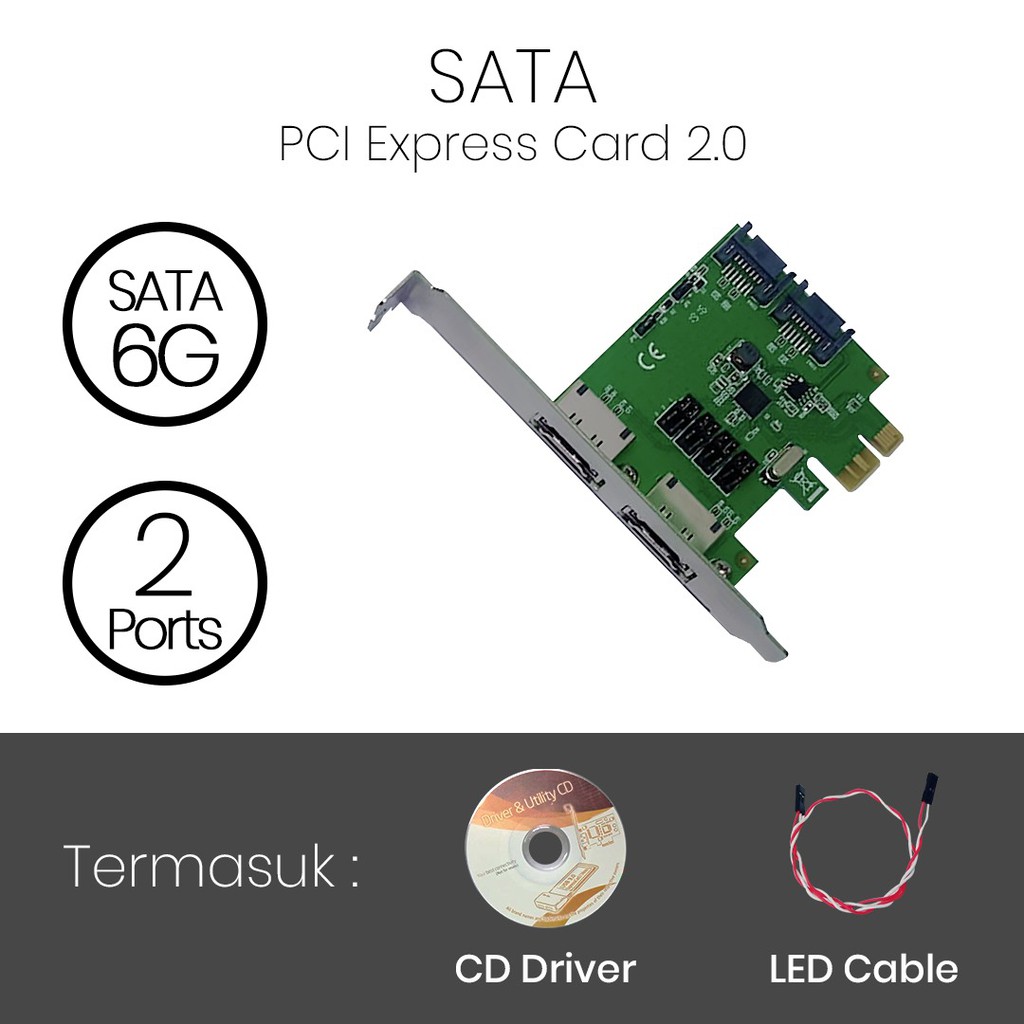

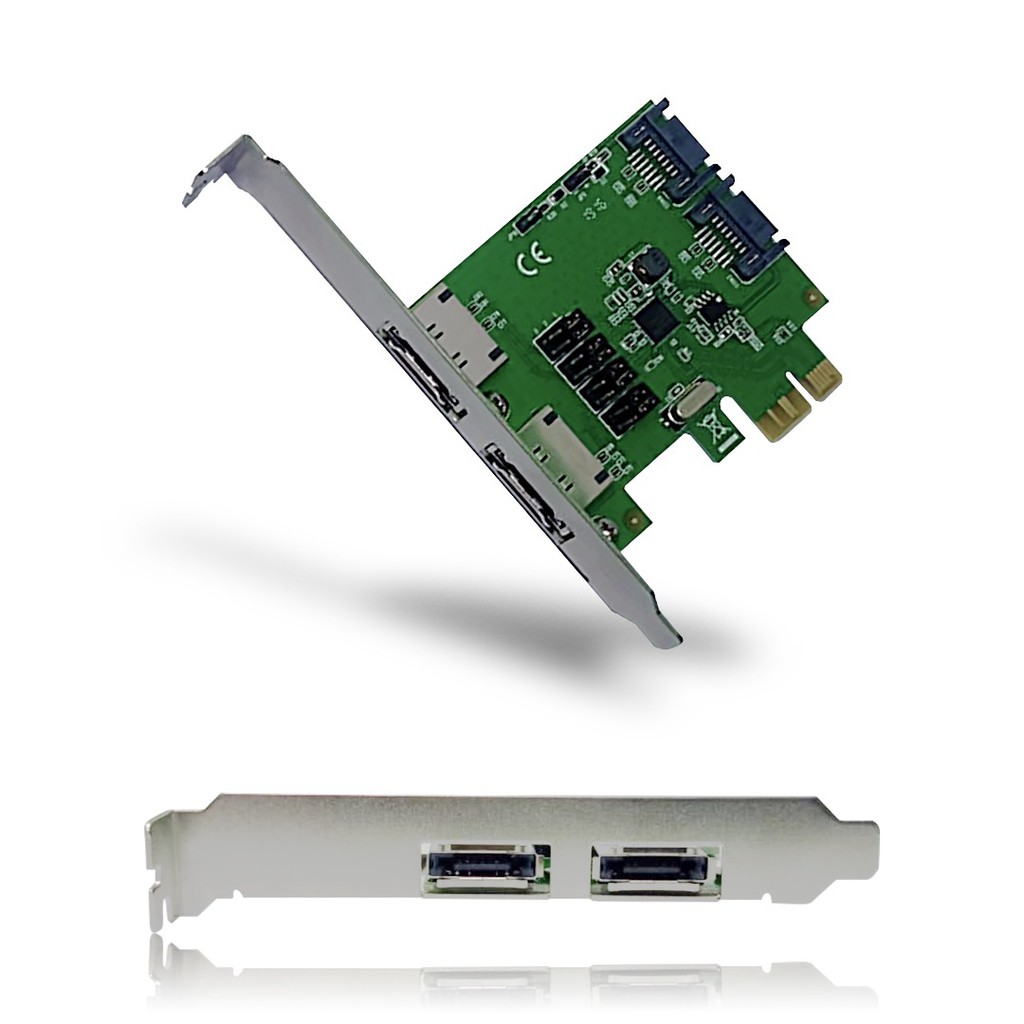

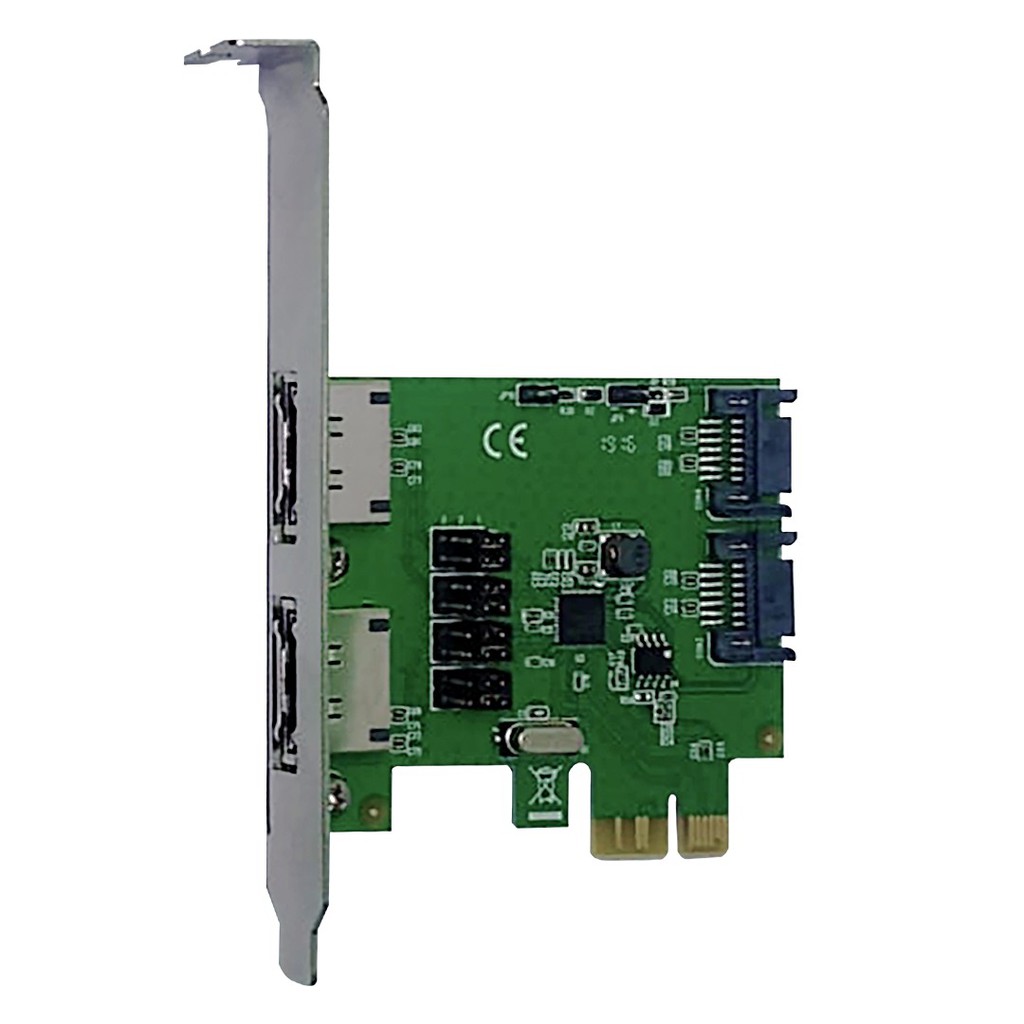

Detail PCI-E Sata 3.0 2 Port 6Gbps - PCI Express Expansion Card Serial ATA

Feature & specification
General
1. Based on ASMedia ASM1061 pci express sata 6Gbps controller
2. 1 lane pci express interface support communication spped of 2.5Gbps and 5.0 Gbps
3. Compliant with pci express 2.0 base specification
4. Unique hard drive activity LED indicator circuit design : The LED blinks When there is read/write activity on any one of the hard drive connected to the motherboard or to this add on card
5. Support windows 7/vista/xp/server 2003-2008 32/64 bit

Serial ATA (SATA) interface
1. SATA 6Gbps ports internally , externally or their combination)
2. compliant with serial ATA specifitcation 3.0
3. Support communication spped of 6Gbps , 3Gbps , 1.5Gbps
4. Compatible with SATA III 6Gbps , SATA II 3Gbps , SATA I 1.5Gbps hard drives and ssd
5. support gen1m and gen2m SATA PHY
6. SUpport Native command queue NCQ
7. SUpport SATA port multiplier
8. SUpport SATA port Hot plug
9. SUpport IDE/AHCI mode
