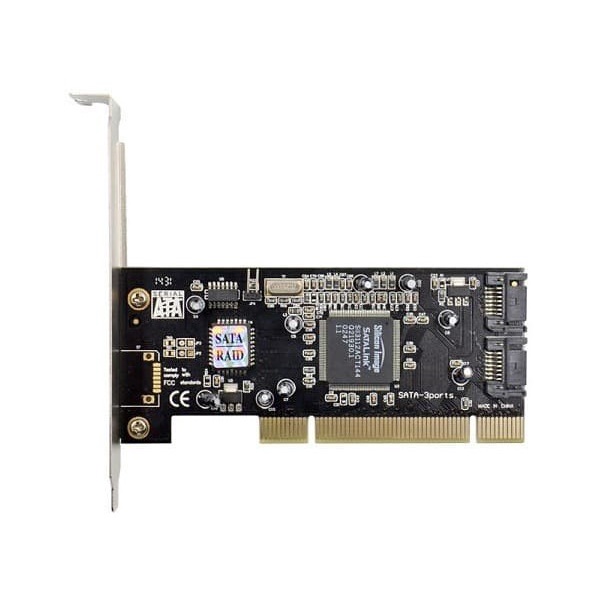

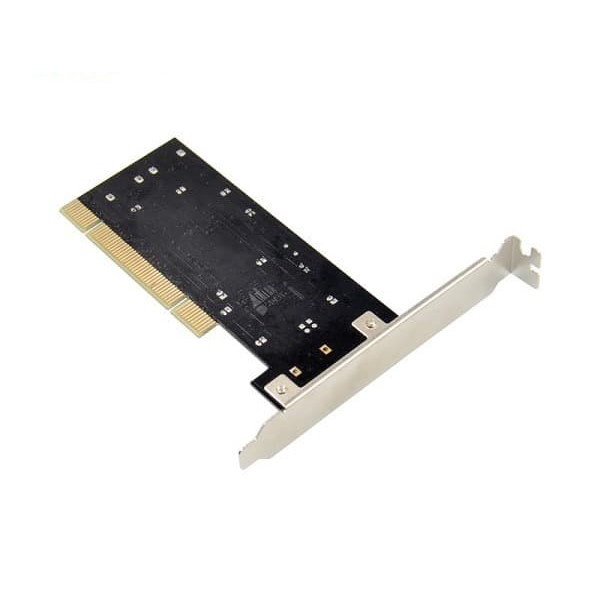

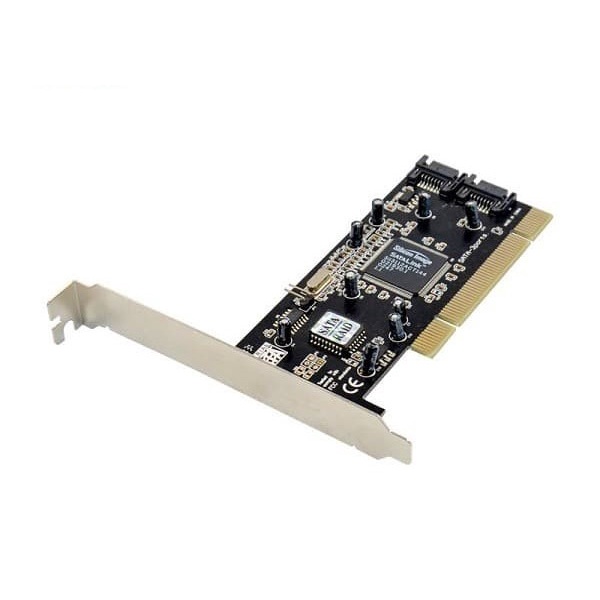

PCI SATA Host Controller Card 2 Port

SIlicom Image Sil3112A Serial ATA host controller card is designed to offer a high performance, cost effective and reliability solution to user who needs to accommodate storage peripherals with the new serial ATA interface.

It can control two independent Serial ATA channels, each channel has its own serial ATA bus and will support one Serial ATA device. This card supports the serial ATA (Generation 1) transfer rats of 1.5Gbps (150MB/S).

Features:
- Silicon Image SIL3112A Serial ATA(SATA) host controller chipset
- Compliant with Serial ATA Specification Revision 1.0
- Supports Serial ATA Generation 1 transfer rate of 1.5Gb/s (150MB/s)
- Compliant with PCI IDE Controller Specification Revision1.0
- Compliant with PCI Specification Revision 2.2
- Compliant with Programming Interface for Bus Masster IDE Controller Revision1.0
- Supports two independent Serial ATA channels
- Independent 256byte FIFO per Serial ATA channels for host read and write

RAID Functions(Optional)
- Supports RAID Function 0 or 1
- Supports co-exist RAID set and Non-RAID HDD
- Allow HDD with different size to be configured in a RAID set

Specifications :
- Brand : Wiretek
- Bus Interface : PCI Rev2.2, Serial ATA Rev1.0 IDE Rev1.0
- Processor : Silicon Image Sil3112A
- Interface : 2 x Serial ATA connector
- FIFO : 256 byte
- Transfer rate : Serial ATA Gen 1 1.5Gb/s (150MB/s)
- Raid array : RAID Functions (Optional) / Allow HDD with different size to be configured in a RAID set / Supports Raid0 or 1, Co-exist RAID set and Non-RAID HDD
- System : Windows XP/Vista/Server 2003/Server 2008 /Win 7/Win 8/Win 10, DOS, Linux and above

Package Content :
1x PCI SATA Host Controller Card 2 Port
1x CD Driver
