Pci card debug - Pc analyzer Diagnostic Display Computer

Detail Pci card debug - Pc analyzer Diagnostic Display Computer

PCI & ISA Motherboard Debug Tester Diagnostics Screen Display 2 Digit

Alat ini berguna untuk men debug motherboard. Hasil debug akan ditampilkan pada layar 2 Digit. Dapat dicolok pada port PCI dan ISA pada motherboard.

Both ISA bus and PCI bus are suitable
Determine defects by difference sounds coding with build-in speaker
Recall previous post codes at the touch of a button
It can diagnosis the motherboard signal which show the problem of CPU, Memory, video card, etc The POST code display is made up of a dual, dot matrix hexadecimal read-out that display's Power On Self Test (POST) status codes
Support the power source working indicator -- +5V,+12V,+3.3V and 12V(When indicator LED is on to indicate its respective power is fine, otherwise to indicate its respective power is failure.)
Fully compatible with any kind motherboards which has the PCI and ISA bus slot
Self checking remote display function
Dual POST code display - User can readout the POST at PCB component and solder side. It is easy to view the POST code when user plugs the POST card in computer system

Package Contents
1 x PCI & ISA Motherboard Debug Tester Diagnostics Screen Display 2 Digit

ready!!

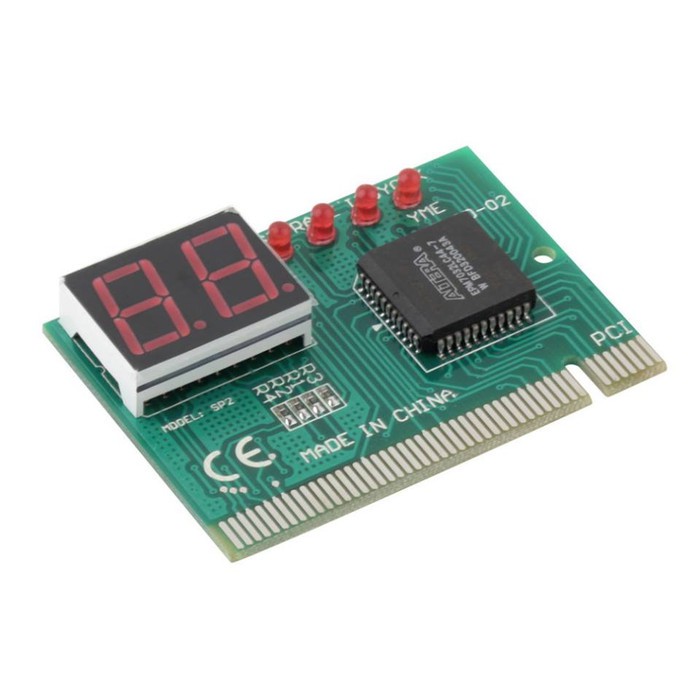

Gambar produk
