PCB Media Converter Fiber 2 FO SC Port 4 LAN Rj45 Optik Optical 6 SC 2 RJ45 Transceiver Ethernet Switch 4 Port dengan Adapter

Detail PCB Media Converter Fiber 2 FO SC Port 4 LAN Rj45 Optik Optical 6 SC 2 RJ45 Transceiver Ethernet Switch 4 Port dengan Adapter

Tersedia dalam 4 Variant :

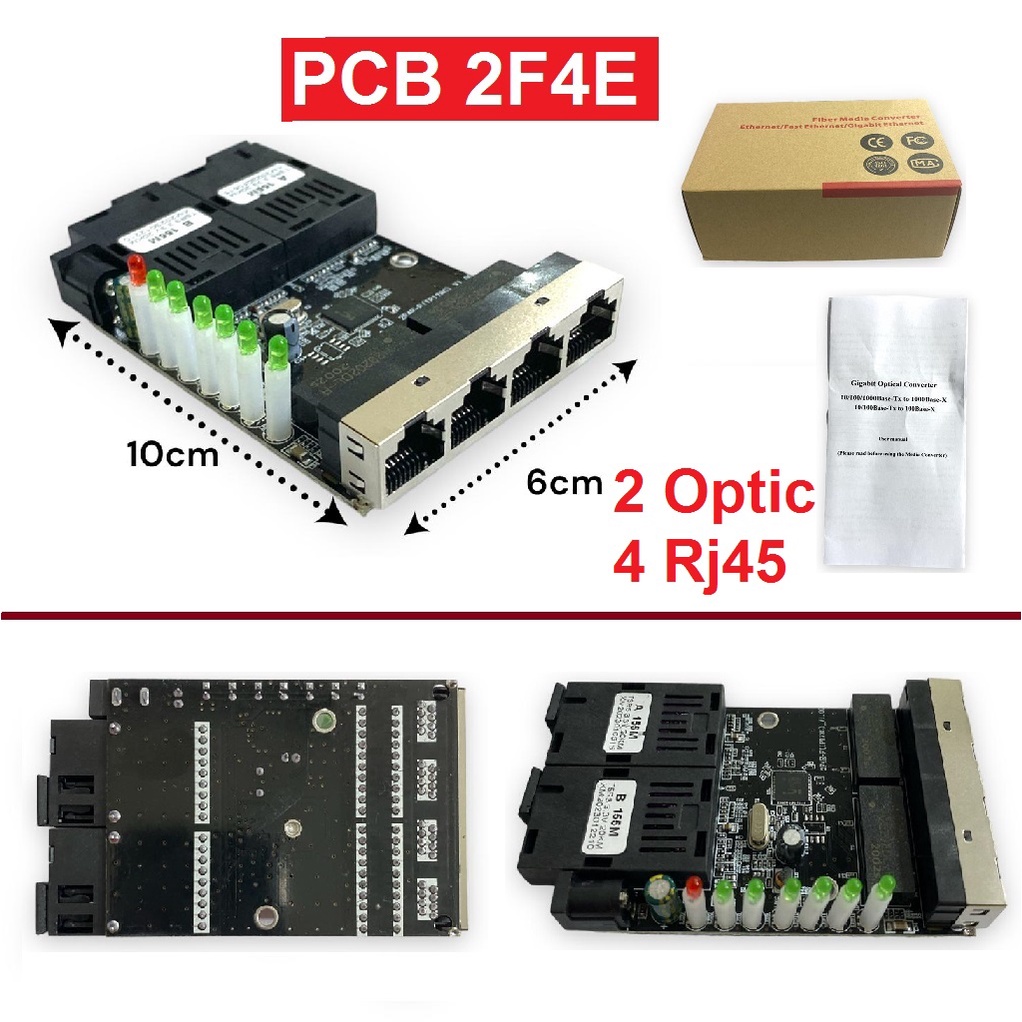

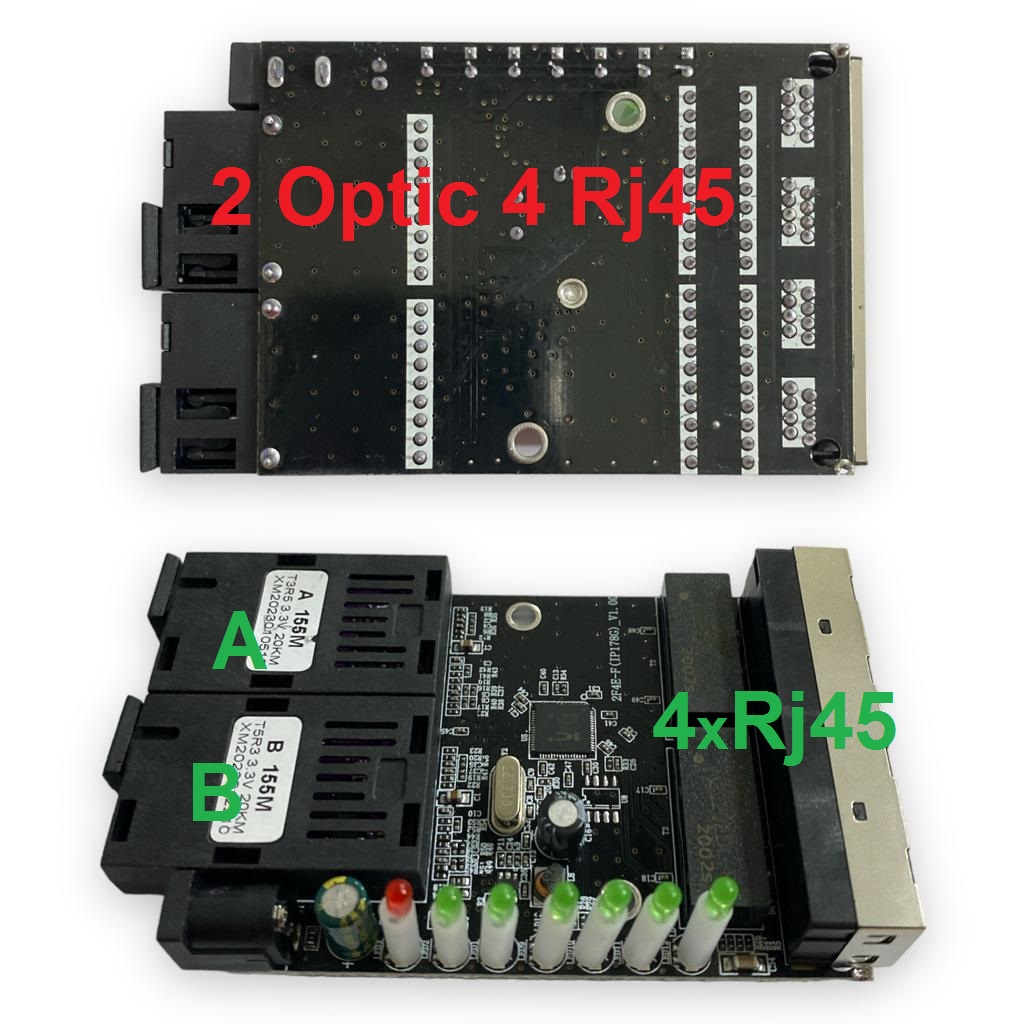

- PCB 2F4E (2 Fiber SC Optik Fiber + 4 RJ45 Ethernet)

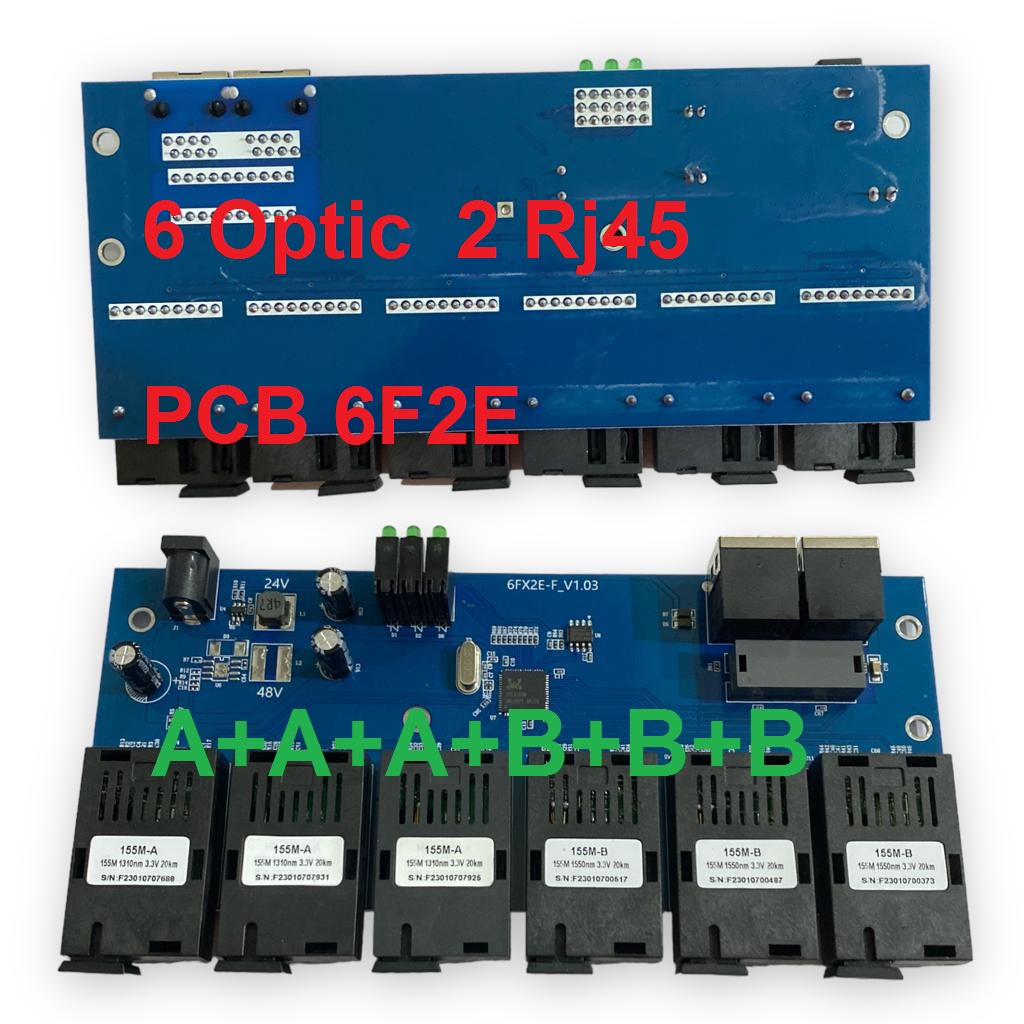

- PCB 6F2E (6 Fiber SC Optik Fiber + 2 RJ45 Ethernet)

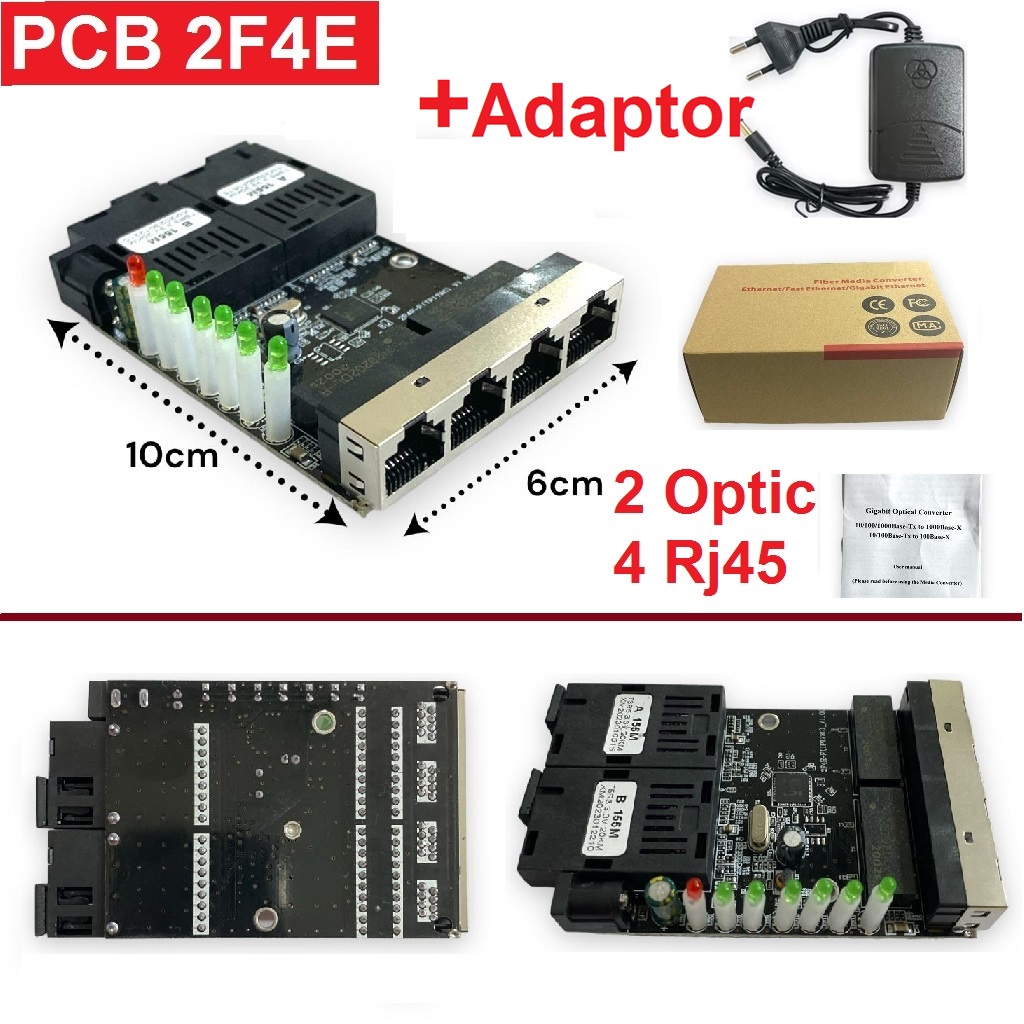

- PCB + Adaptor 2F4E (2 Fiber SC Optik Fiber + 4 RJ45 Ethernet)
- PCB + Adaptor 6F2E (6 Fiber SC Optik Fiber + 2 RJ45 Ethernet)

Packing List
- Pcb (Hanya Mesin)
- Adaptor (Hanya untuk varian "PCB + Adaptor")
- Manual
- Box

Technical Parameters
1. Standard Protocol:IEEE802.3Z/AB 1000Base-T/SX/LX
2. Transfer rate: Electrical interface: 10/100/1000Mbps, Fiber interface: 1.25Gbps
3. Interface: one UTP RJ-45, interface One SC interface
4. Operation mode: full duplex mode or half duplex mode
5. Power supply parameter: Build in: 110-265V AC 48VDC
6. Environmental temperature: 0°C-60 °C
7. Relative humidity: 5%-90%
8. TP cable: 5E, CAT 6
9. Transfer fiber: multi-mode: 50/125, 62.5/125 μm , single mode:: 8.3/125, 8.7/125, 9/125 or 10/125 μm
10.Support IEEE 802.3x flow control and back pressure control
11.Require no configuration and will instantly operate as soon as you power it up
12.Low power consumption chip with heat sink built in to ensure longtime efficient operation
13.Support high performance QoS function on each port
14.Each port has the complete LED Indicator light
15.Support single mode single fiber,single mode dual fiber ,multi-mode dual fiber and SFP slot

Performance
Processing Type: Store and Forward
MAC Table Size:4K/6K/8K
Buffer Space: 500kbs/1Mbit/2Mbit
Jumbo Packet: 1518 bytes
Back bandwidth: 3.8G/5.6G/7.2G
Time Delay: ＜150μs
Power type: external power supply
Input Voltage: AC100V～240V 50/60Hz
Connector: DC Socket
Working Voltage: 5V
Power Consumption: 2.2W～3.5W
Transmissin Distance
Twisted Pair: 100m (CAT5e, CAT6 cables)
Muti-mode: 2km
Single-mode: 3/20/40/60/80/100km
MTBF
Environment
Storage Temperature: -40～70℃
Operating Temperature: -10～55℃
Relative Humidity: 5-90% ( no condensation)
Dimension: 215×107×26mm

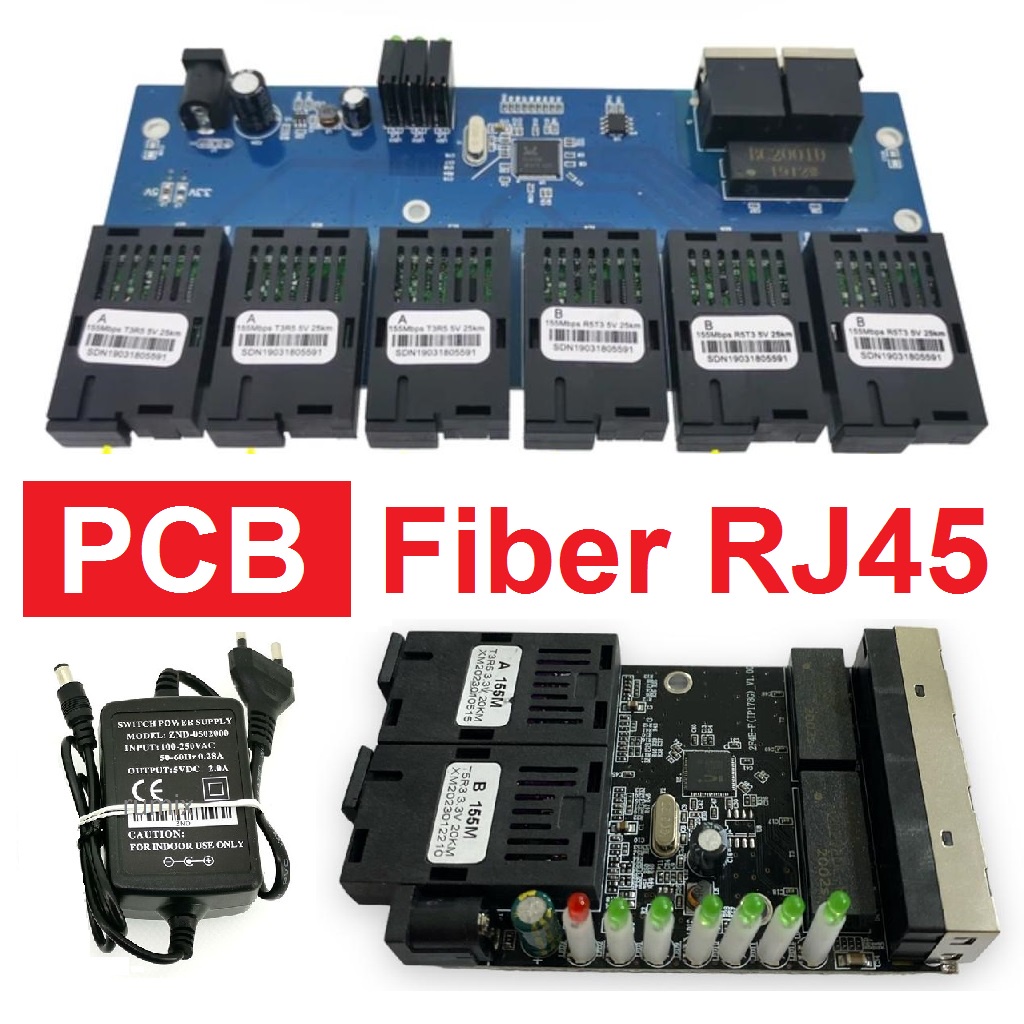

PCB main board
