PCB Board Netlink HTB GS-03 A+B Fiber Optic Media Converter Gigabit

Detail PCB Board Netlink HTB GS-03 A+B Fiber Optic Media Converter Gigabit

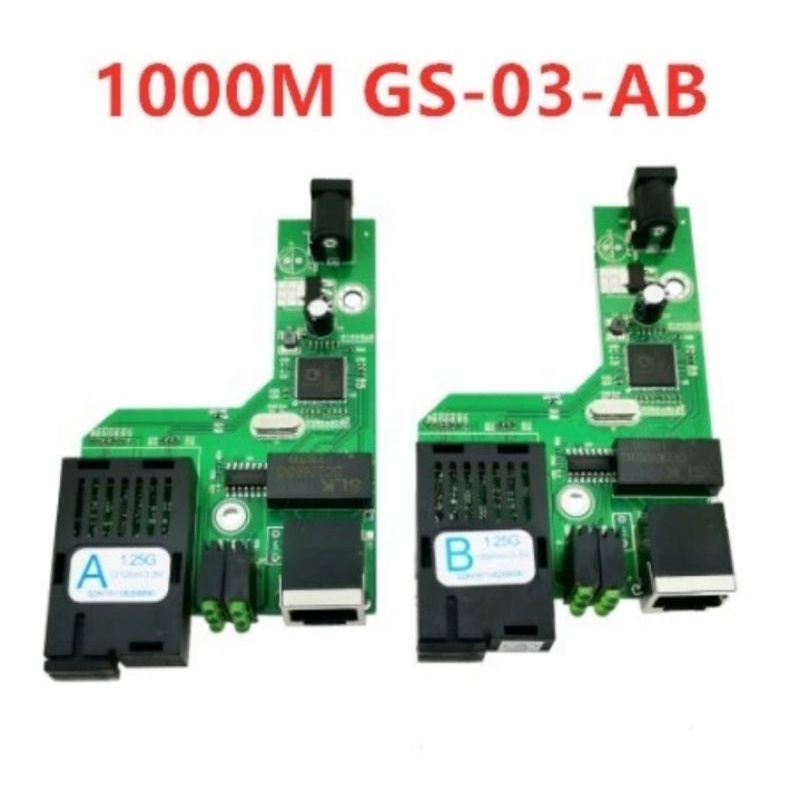

PCB Board MEDIA CONVERTER FIBER OPTIC HTB GS-03 Gigabit 10/100/1000

Keterangan : Hanya Board Only Tanpa Adaptor


FEATURES :

-An RJ45 ports and a single-fiber SC optical port,to achieve optical signal conversion between 10/100 /1000 base TX twisted pair (Ethernet )and 1000 base FX (fiber optic);
-Core optical fiber can be completed in just one way signal transmission compared to dual fiber optic data transmission mode to improve the quantity doubled;
-Compliance with IEEE802.3 10/100/1000 Base-TX, 1000Base-FX standards;
-Has 10M/1000M adaptive capacity;
-Ethernet interface can adaptively direct line / crossover cable connection;
-Support full / half duplex mode;
-Support IEEE802.3X duplex flow control and half-duplex backpressure flow control;
-Supports broadcast storm prevention function;
-Built- in lightning protection circuit , which can greatly reduce the damage caused by lightning induction;
-UTP up to 100 meters; longest 100 km single-mode fiber;
-Six LED indicators: Power, TX 1000, TX Link / Act, FX 1000, FX Link / Act, FDX / Col
easy to monitor the working status of the transceiver and determine the cause of the fault;
-Ambient temperature: 0-70 degree
-Humidity: 5% to 90%

Fiber Optic Parameters:
Fiber optic type:Single mode
Connector type:SC
Transmit Wave length:1310/1550nm
Transmission distance:25 Km
Min TX PWR:-9.0 dBm
Max TX PWR:-3 dBm
Sensitivity:-31.0 dBm
Link Budget:22.0 dBm
