PCB Board NetLINK HTB-3100 B Fiber Optic Optical Media Converter 10/100Mbps

Detail PCB Board NetLINK HTB-3100 B Fiber Optic Optical Media Converter 10/100Mbps

PCB Board NetLINK HTB-3100 A+B Fiber Optic Optical Media Converter 10/100Mbps

Hanya PCB Board/tanpa casing.

Feature : Single mode and one optical fiber

It can save half of the fiber, the data on a single fiber and the 10/100 m rate of receiving and sending,where the optical fiber resource is very applicable
1.Brand-New, High Quality
2.An RJ45 ports and a single-fiber SC optical port , to achieve optical signal conversion between 10/100base TX twisted pair (Ethernet )and 100base FX (fiber optic) ;
3.Core optical fiber can be completed in just one way signal transmission compared to dual fiber optic data transmission mode to improve the quantity doubled ;
4.Compliance with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standards
5.Has 10M/100M adaptive capacity ;
6.Ethernet interface can adaptively direct line / crossover cable connection ;
7.Support full / half duplex mode ;
8.Support IEEE802.3X duplex flow control and half-duplex backpressure flow control
9.Supports broadcast storm prevention function ;
10.1916 Byte support large data frame ( optional ) ;
11.Built- in lightning protection circuit , which can greatly reduce the damage caused by lightning induction ;
12.UTP up to 100 meters ; longest 100 km single-mode fiber ;
13.There are six LED indicators : Power, TX 100, TX Link / Act, FX 100, FX Link / Act, FDX / Col; easy to monitor the working
status of the transceiver and determine the cause of the fault ;
14.There are external , internal power supply of two types : AC100 ~ 265V / DC5V switching power supply ;
15.Working temperature : 0 ~ 50 degree;
16.Storage temperature : - 40 ~ 70 degree ;
17.Transceiver Dimensions: External power 70 × 26 × 93mm; built-in 120 × 30 × 140mm.

Isi Paket Variasi :

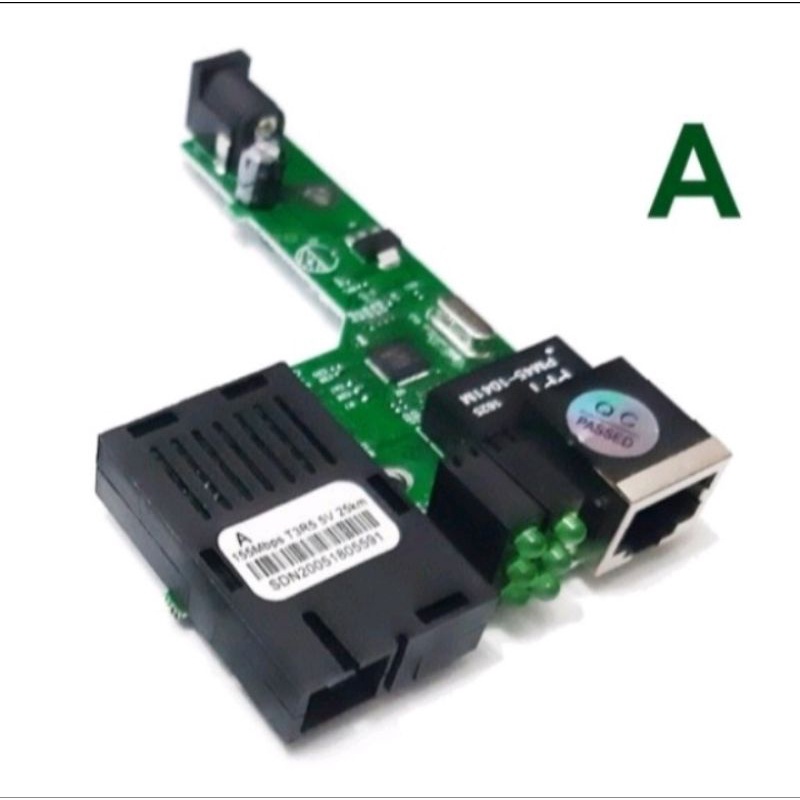

HTB-3100 A :
1 x PCB Board HTB 3100 A

HTB-3100 B :
1 x PCB Board HTB 3100 B

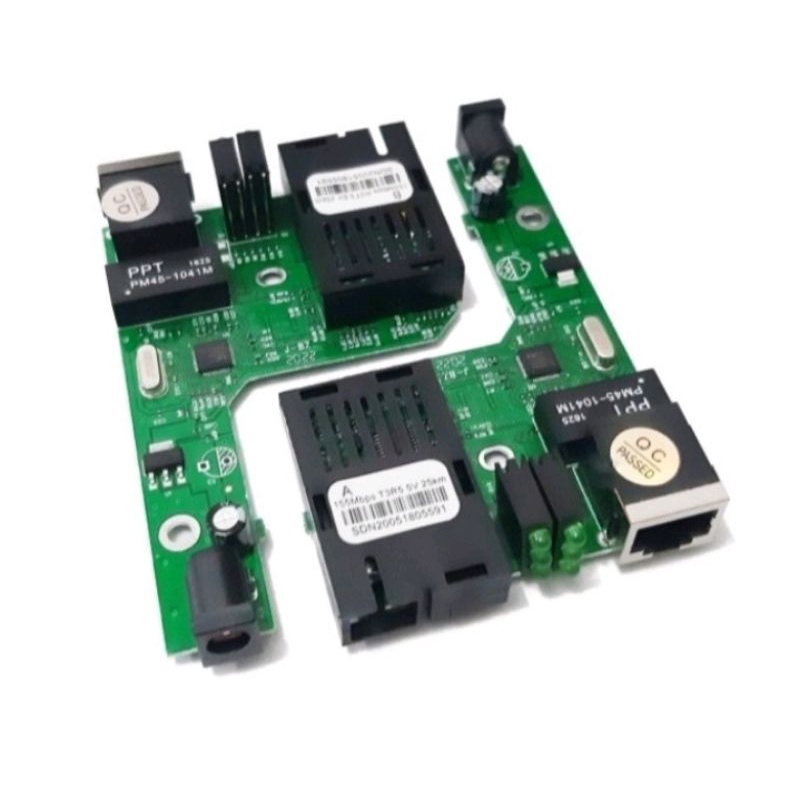

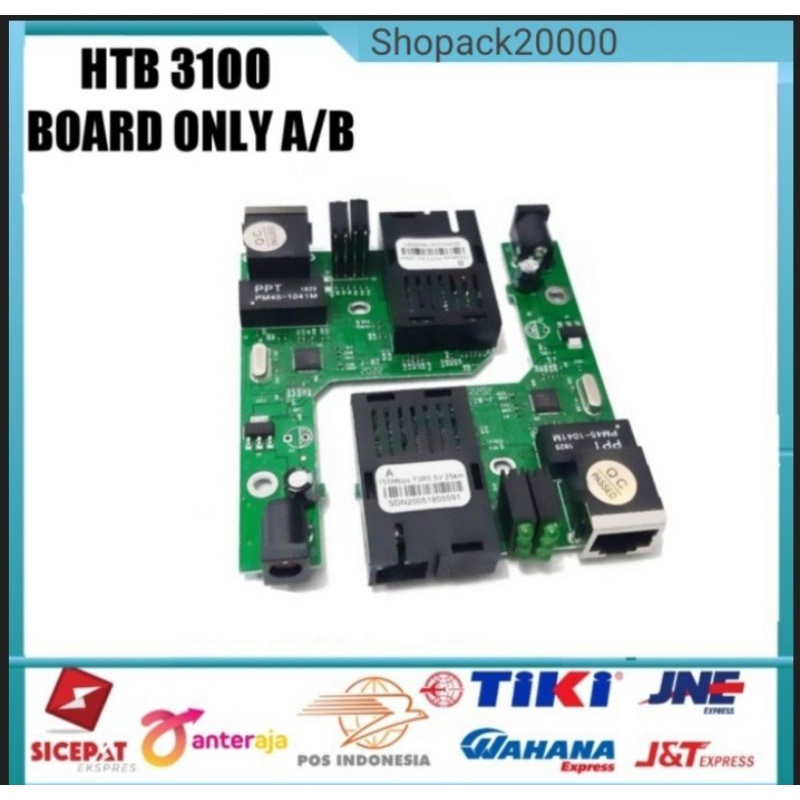

AB Adaptor :
1 x PCB Board HTB 3100 A
1 x PCB Board HTB 3100 B

Gambar produk
