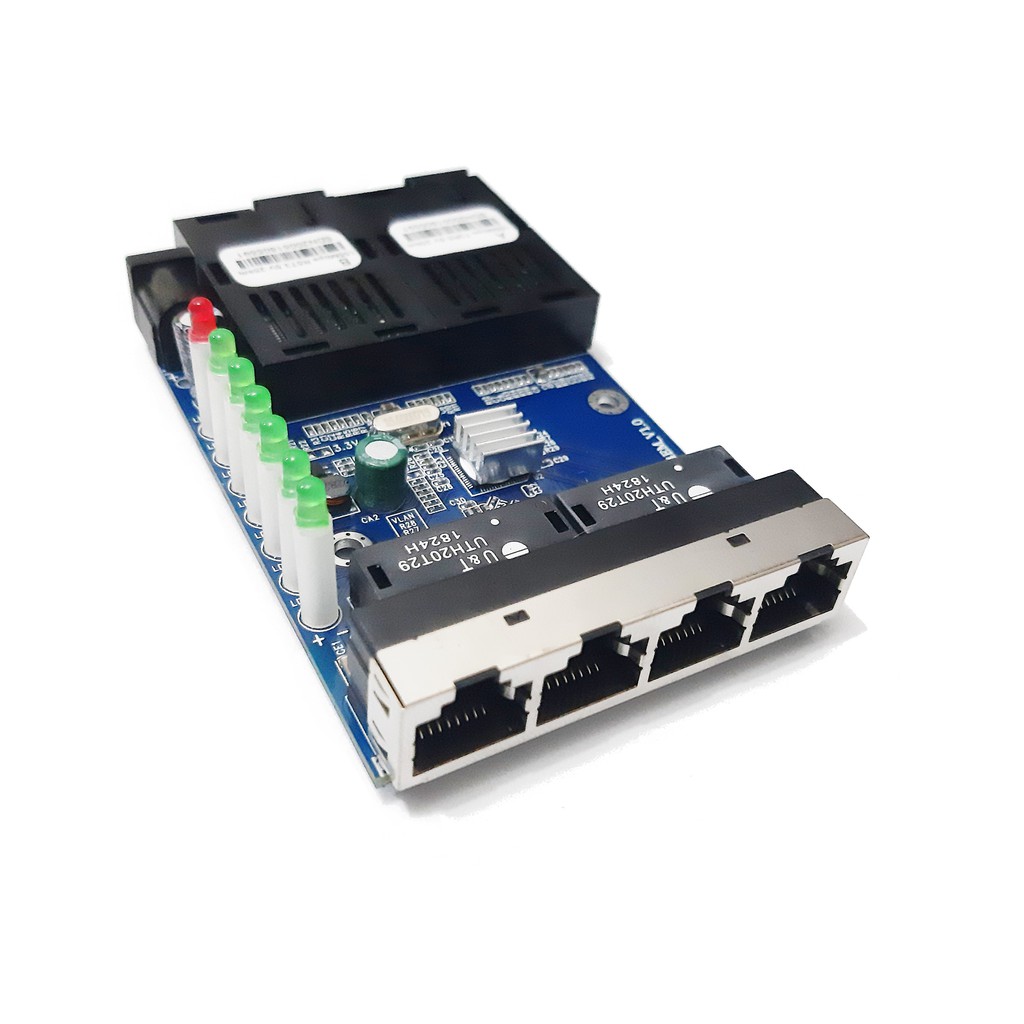

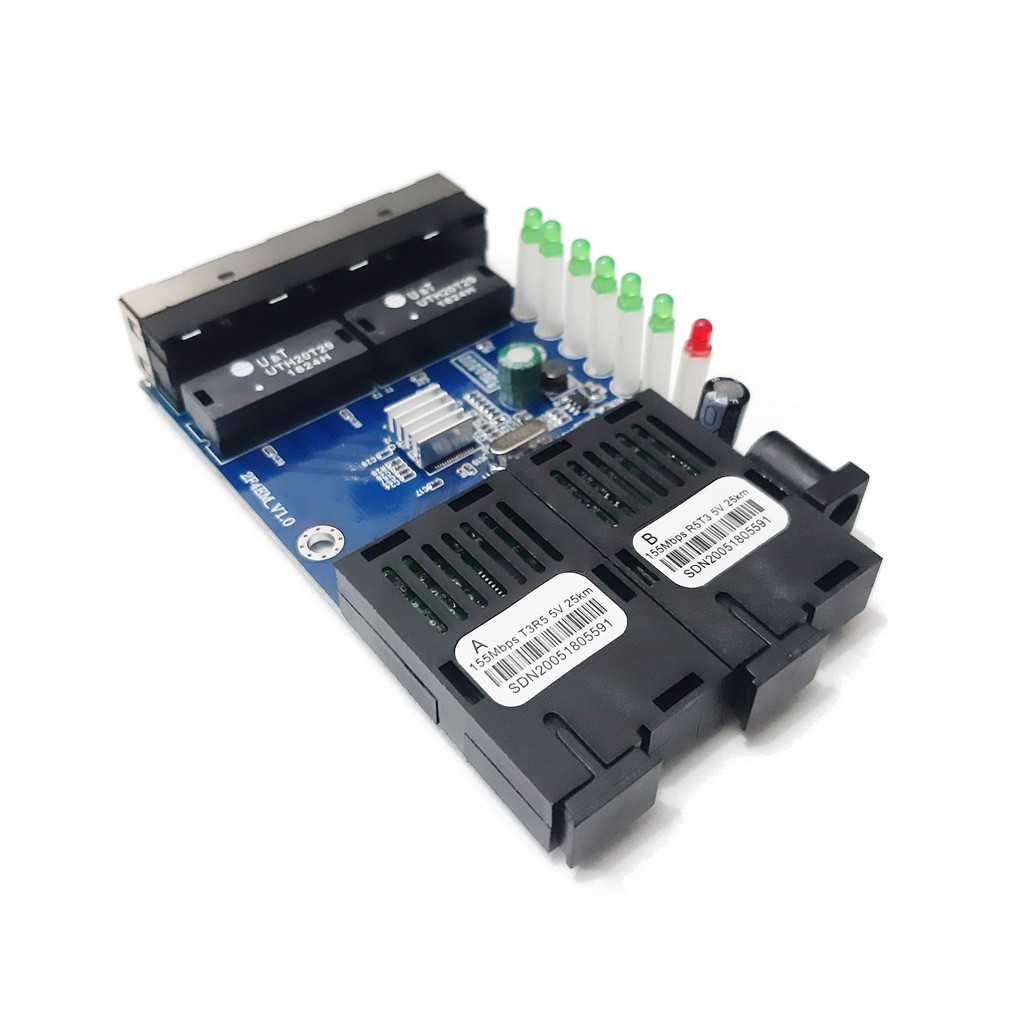

PCB Board 4 RJ45 2 SC Fiber Optic Converter 10/100Mbps Ethernet Switch

Detail PCB Board 4 RJ45 2 SC Fiber Optic Converter 10/100Mbps Ethernet Switch

PCB Board Fiber Optic Converter 4 RJ45 2 SC 10/100Mbps Ethernet Switch

Hanya PCB Board/tanpa casing.

Optical Media Converter Single Mode Fiber Switch
please note:
Default with 1pcs 1310nm A side Fiber module and 1pcs 1550nmB side

Fast Ethernet Switch 10/100Base-Tx to 100Base-FX Fiber Switch
The Fast Ethernet Switch is an Ethernet Fiber Switch which is specially designed for network monitoring. It
has 4 10/100Mbps Ethernet ports and 2 155Mbps fiber ports. It adopts RTL8305NB chips to ensure
low power consumption and high stability. It extends the transmission distance of a network from
100m to 120km via copper cables. It can extend the transmission distance; there are also many other
advantages such as isolation protection, good data security, working stability and easy maintenance.

Fitur :
1. Support the switch between 10/100Base-TX and 100Base-FX
2. 2x155Gbps full-duplex fiber ports and 4x100M Ethernet ports with auto-negotiation function
3. Support 100M speed rate, MDI/MDIX and half/full-duplex with auto-negotiation function
4. Each port has the complete LED Indicator light
5. Support single mode single fiber,single mode dual fiber ,multi-mode dual fiber and SFP slot
6. Support IEEE802.1d Spanning Tree
7. Support high performance QoS function on each port
8. Support 5V voltage input
9. Support IEEE 802.3x flow control and back pressure control
10. Require no configuration and will instantly operate as soon as you power it up
11. Low power consumption chip with heat sink built in to ensure longtime efficient operation

Isi Paket Variasi :

Converter :
1 x PCB Board 4 RJ45 2 SC Converter

Converter+Adaptor :
1 x PCB Board 4 RJ45 2 SC Converter

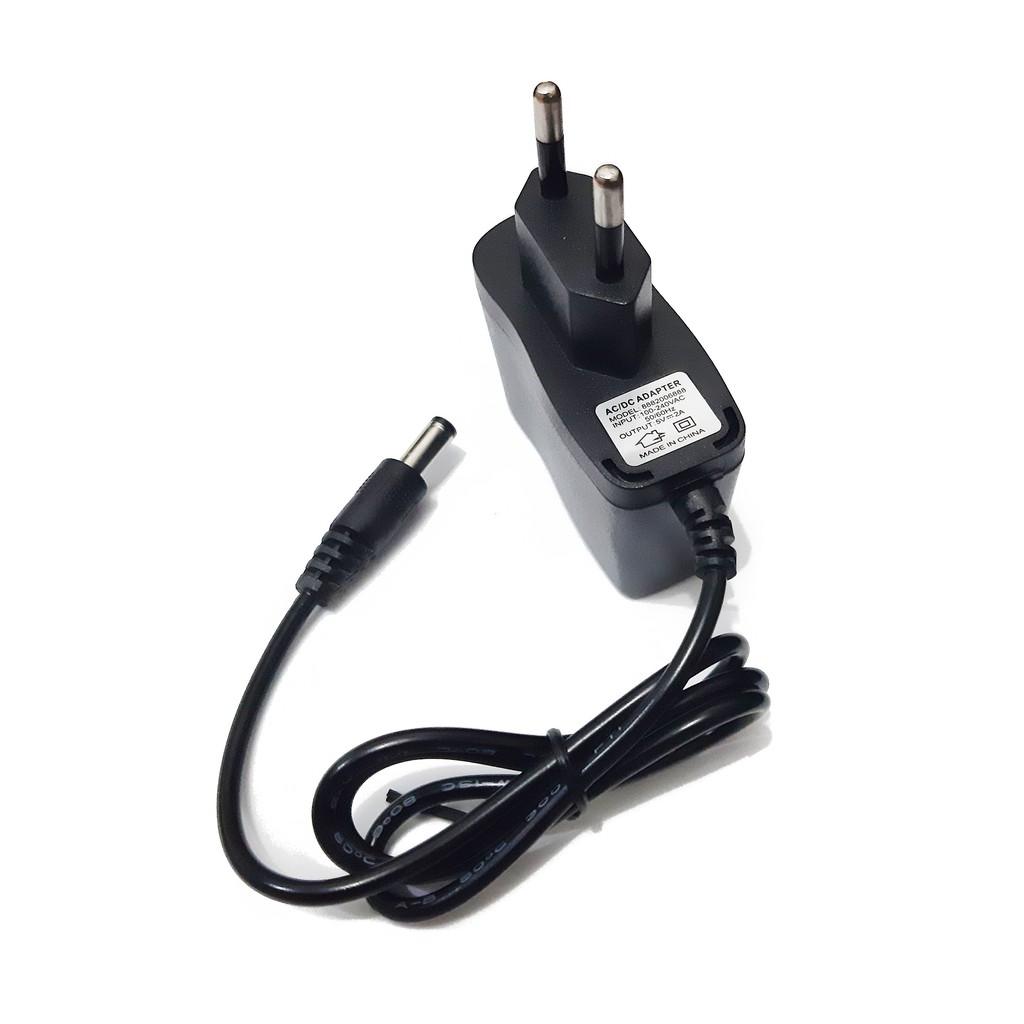

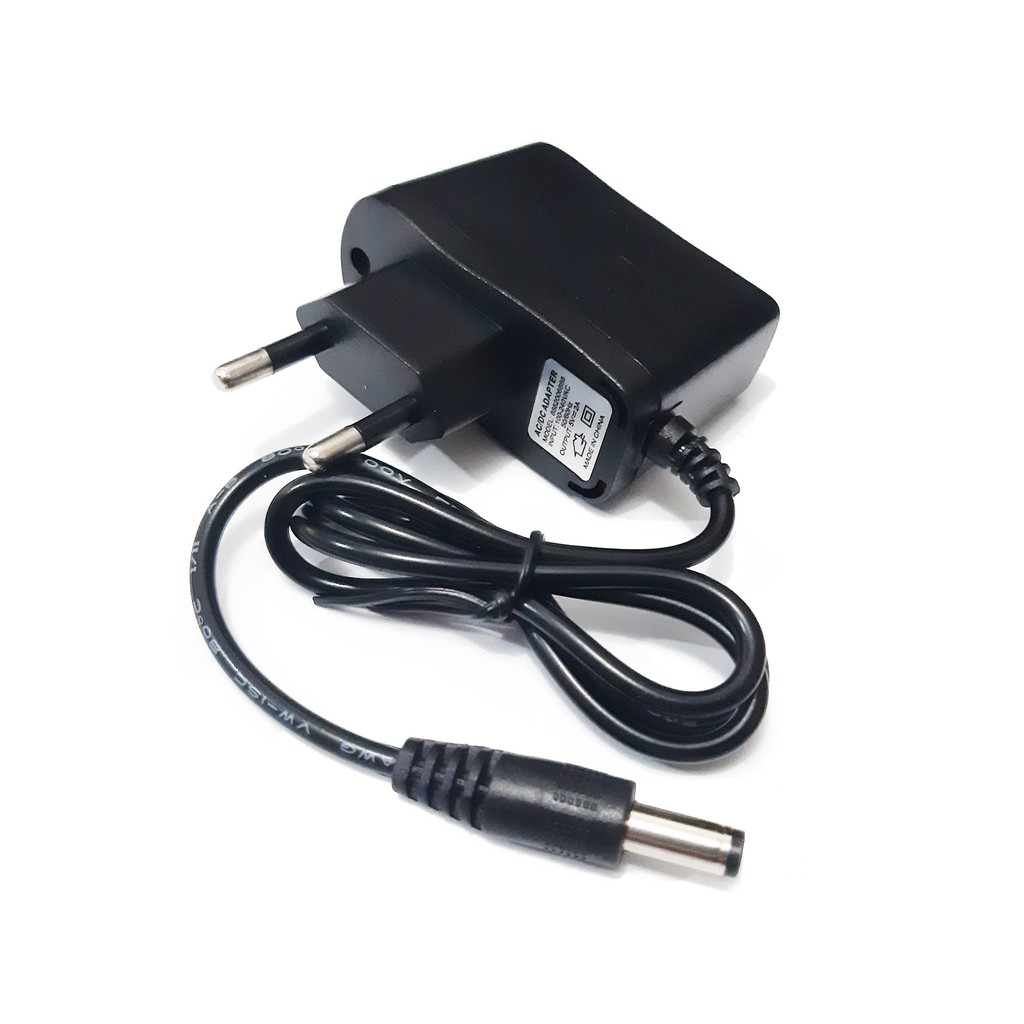

1 x Adaptor

Gambar produk
