PC817 PC 817 OPTOCOUPLER DIP4 EL 817C DIP-4 Photocoupler PC817C
Deskripsi singkat
Elektronik > Elektronik Lainnya > PC817 PC 817 OPTOCOUPLER DIP4 EL 817C DIP-4 Photocoupler PC817C
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail PC817 PC 817 OPTOCOUPLER DIP4 EL 817C DIP-4 Photocoupler PC817C
- Package : DIP-4- Output Type : NPN Phototransistor
- Number of Channels : 1 Channel
- If - Forward Current : 5 mA
- Maximum Collector Emitter Voltage : 80 V
- Maximum Collector Current : 50 mA
- Isolation Voltage : 5000 Vrms
- Maximum Collector Emitter Saturation Voltage : 0.2 V
- Vf - Forward Voltage : 1.2 V
- Pd - Power Dissipation : 70 mW
- Maximum Operating Temperature: + 100 C
- Minimum Operating Temperature: - 30 C
- Fall Time : 18 us
- Rise Time : 18 us

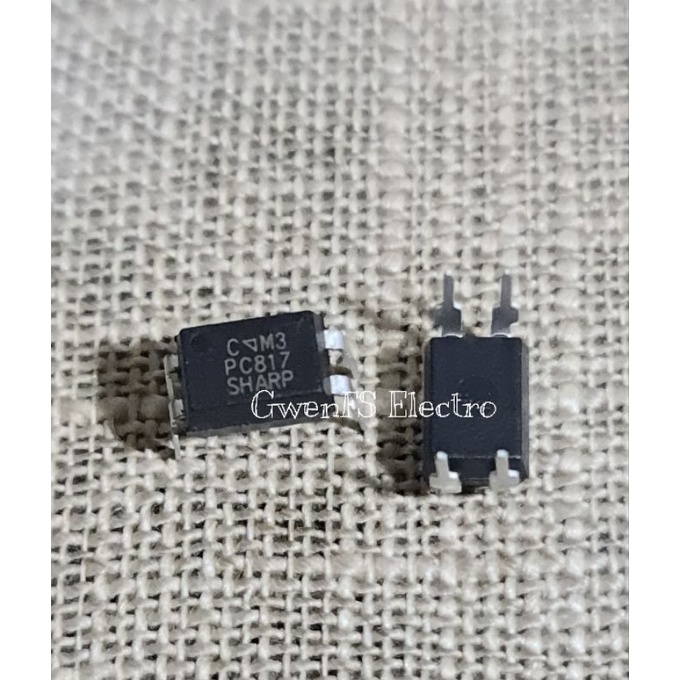

Gambar produk
