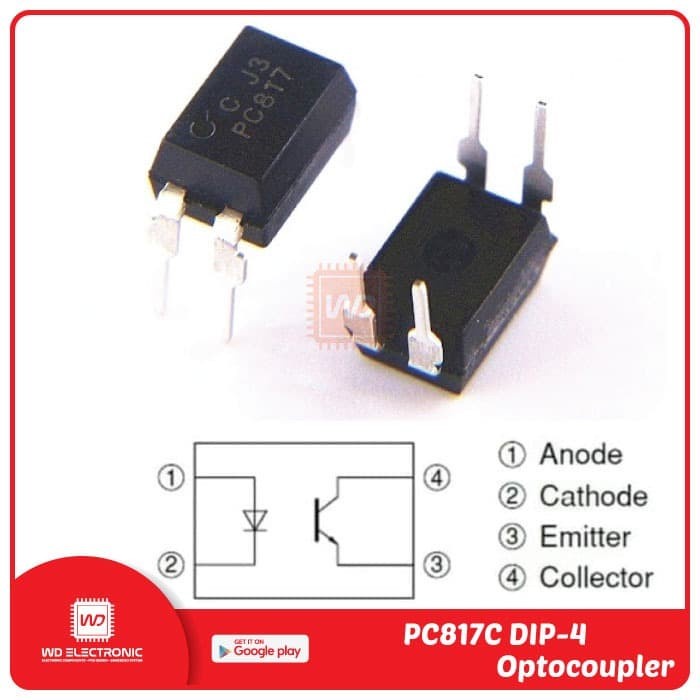

Detail PC817 PC 817 DIP-4 OPTOISOLATOR OPTOCOUPLER
Hi #RekanEasyWare ... EasyWare Part#: EP000308
DESKRIPSI : - Manufacturer : Made in China - Manufacturer Part Number : PC817 - Description : OPTOISOLATOR 5KV TRANS 4DIP - Part Status : Not Original - Number of Channels : 1 - Voltage - Isolation : 5000Vrms - Current Transfer Ratio (Min) : 50% @ 5mA - Current Transfer Ratio (Max) : 600% @ 5mA - Turn On / Turn Off Time (Typ) : - - Rise / Fall Time (Typ) : 4µs, 3µs - Input Type : DC - Output Type : Transistor - Voltage - Output (Max) : 80V - Current - Output / Channel : 50mA - Voltage - Forward (Vf) (Typ) : 1.2V - Current - DC Forward (If) (Max) : 50mA - Vce Saturation (Max) : 200mV - Operating Temperature : -30°C ~ 100°C - Mounting Type : Through Hole - Package / Case : 4-DIP (0.300", 7.62mm) - Supplier Device Package : 4-DIP
