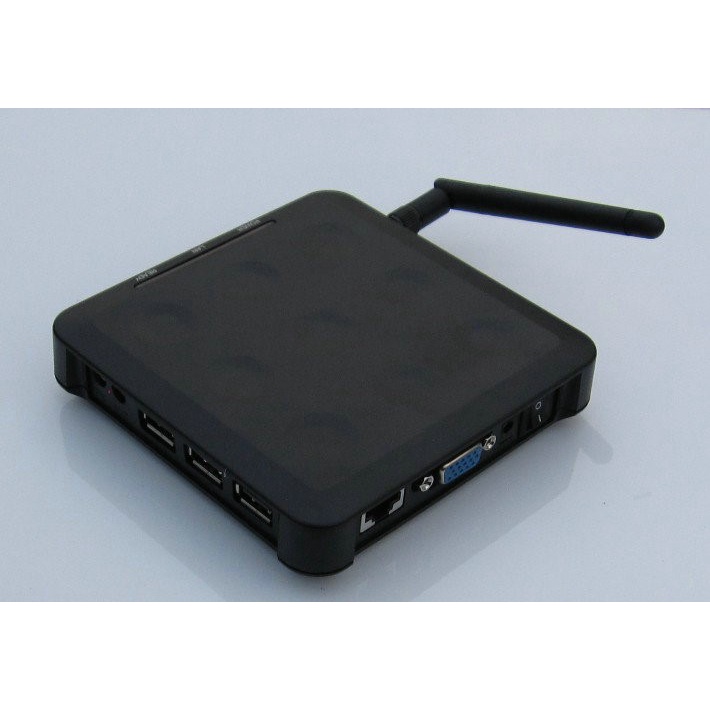

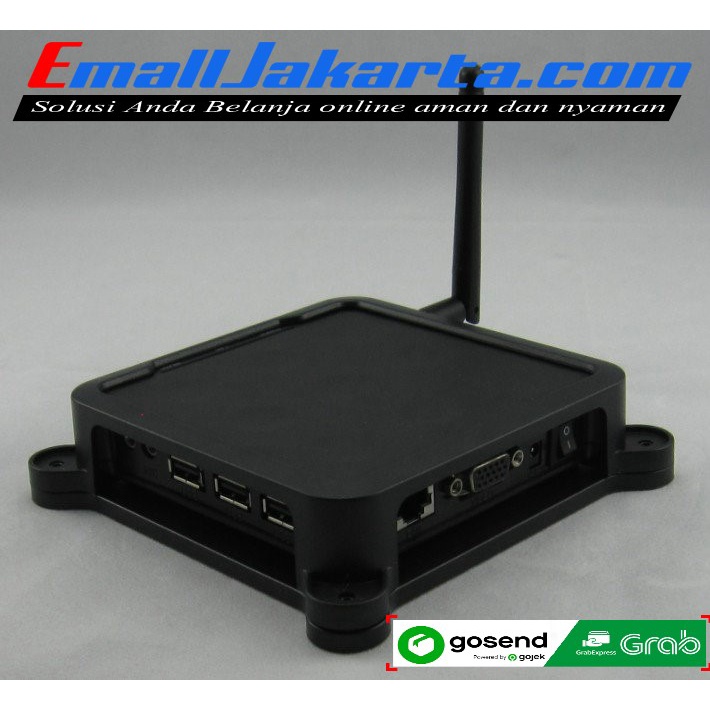

PC Station TS660W Wireless ARM11 Win CE 6.0 OS Network Terminal Thin Client Net Computer N Computing

Detail PC Station TS660W Wireless ARM11 Win CE 6.0 OS Network Terminal Thin Client Net Computer N Computing

TS660W with Windows CE 6.0 embedded, 128MB RAM, it connect server via RDP 6.0 protocol. TS660 not support mic,3d program and video playing.



Wifi Specifications

RF Frequency : 2412-2472 MHz
RF MAx Power : 10 dbm
max range : 100 m



Introduction

1. Connection to Host PC--Unlimited distance via 100 Mb/s switched Ethernet connection

2. Video Resolution--640x480, 800x600, 1024x768(at 60or 70 Hz refresh rate) and 1280x1024(`63Hz),1440x900(60Hz) .All feature up to 24-bit ture color support

3. Audio--16-bit stereo output via speaker port ,Microphone Input

4. USB Port--3 USB 2.0 ports--instead of the PS2 interface,can connect to the keyboard,mouse,USB Flash memory

5. Internal HW--All solid-state design, no moving parts, no fans,Windows CE intergrated RDP protocals

6. Reliability (MTBF)-- >100,000 hours (calculated using Bellcore Issue 6 TR-332, Case 2, Part I at 40°C)

7. Size--Width--115 mm/4.5 inches, Height, 26 mm/1 inches, Depth--115 mm/4.5 inches

8. Weight--Access Terminal, 154 g / 0.34 lbs

9. Power Supply--Input-- 100-250VAC, 50-60Hz, Output--5VDC,2A, Nominal consumption: 5W

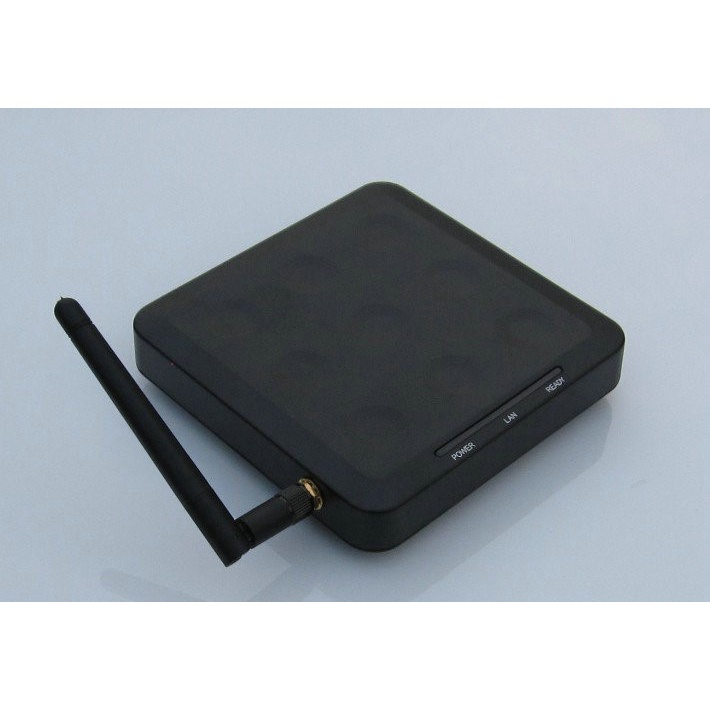

10. Front LED Indicators--Power--connection to power supply, LAN: connection to network, Ready-- connection to host PC



Data sheet

1. Operating System: Windows CE 6.0

2. CPU: Onboard CPU ARM11 CLG7700 800MHz

3. RAM: Onboard 128MB

4. Flash: Onboard 128MB

5. Display support Max 1280*1024, 32bit/64K colors; Widescreen 1440*900 support,24bit true color support

6. Power Input: 100-240V, 50/60Hz; Output: 5V/2A

7. Management Remote management, configuration;

8. Wake terminal remotely(Wake-on-LAN)

9. Onboard LAN 10/100 MB/s

10. Operating range 3k meters

11. Ports: 1 RJ-45 LAN port; 3 USB 2.0 ports; 1 DC in port; 2 Audio jacks: Speaker-out and mic-in;

12. Server OS support Windows 2000/2003/2008/XP/Multipoint 2012/Vista/Win 7 professional
