Detail Patch Cord Fiber Optic OM3 LC-LC Duplex 1 Meter

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

Ada 2 jenis kabel,
1. connector terpisah ( tanpa clip )
2. connector menyatu/nempel ( dengan clip )

chat dulu untuk memastikan stok produk nya, akan kami kirim random jika tidak ada pilihan dari pembeli, kami tidak terima komplen jika kami kirim random karena pembeli tidak memilih.
( note : pilihan anda )

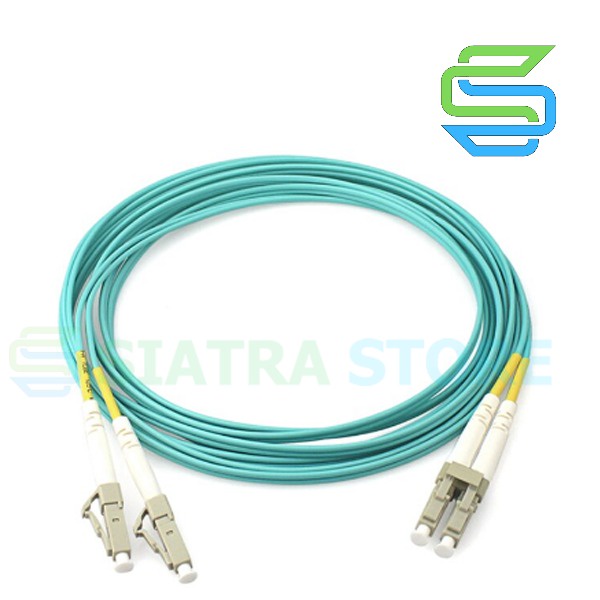

OM3 Patchord LC-LC Duplex 1 Meter

Optical Fiber Connector can provide a quick and easy termination of fibers in
the field. Options are available for 900 micron allowing the installer to terminate
and make connection in minutes at equipment and fiber patch panels. Our quick
connector system removes any requirement for epoxy, adhesives or costly curing
ovens.All the key steps have been done in the factory to ensure every connection
is excellent.High quality but low price because we bring these in direct from the


Feature
1).Low insertion loss
2).High return loss (low amounts of reflection at the interface)
3).Ease of installation
4).Low cost
5).Reliability
6).Low environmental sensitivity
7).Ease of use

Application
1).CATV
2).Active device termination
3).Telecommunication networks
4).Metro
5).Local Area Networks (LANs)
6).Data processing networks
7).Test equipment
8).Premise installation
9).Wide Area Networks(WANs)

Specification
Multimode

Insertion loss
≤ 0.2db
≤ 0.2db
≤ 0.25db

Return loss
≥55db
≥65db
≥30db

Durability
≤ 0.1db typical change, 1000 times mating

Operating Temperature
-45 to +85 degree

Ferrule Hole Sizes
125.0+1/-0um, Concertricity: ≤1.0um
125.0+1/-0um, Concertricity: ≤0.5um
125.0um, Concertricity: ≤3.0um

125.3+1/-0um, Concertricity: ≤1.0um
125.3+1/-0um, Concertricity: ≤0.5um
127.0um, Concertricity: ≤3.0um

125.5+1/-0um, Concertricity: ≤1.0um
125.5+1/-0um, Concertricity: ≤0.5um
128.0um, Concertricity: ≤3.0um

126.0+1/-0um, Concertricity: ≤1.0um
126.0+1/-0um, Concertricity: ≤0.5um
