Passive Splitter PLC BOX FO 1 4 Fiber Optik FTTH SC UPC

Detail Passive Splitter PLC BOX FO 1 4 Fiber Optik FTTH SC UPC

FTTH SC UPC PLC 1X4 Optical Terminal Box Splitter OTB Singlemode
Garansi: 1 Bulan

1. Description.
Optional Connectors: SC, LC, FC with UPC
Optional Fiber: G652,G657 with the OD:2.0/3.0 mm
Planar lightwave circuit (PLC) Splitter is a type of optical power management
device that is fabricated using silica optical wave guide technology.
it features small size, high reliability, wide oprating wavelength range and
good channel to channel uniformity, and is widely used in PON network to realize
optical signal power splitting. Sping provides whole series of 1*N and 2*N
splitter products that are tailored for sprcific applications.All products meet
Telcordia 1209 and 1221 requirments and are certified by TLC for network
deployment.

2. Features of
*Low Insertion loss
*Low PDL
*Compact Design
*Good channel-to-channel uniformity
*Wide Operating Wavelength: 1260-1650nm
*Wide Operating Temperature: -40C - 85C
*High Reliability and Stability

3. Applications
*FTTX Systems
*PON Networks
*CATV Links
*Optical Signal Distribution

4. Specifications
wavelength(nm): 1260-1650
Parameters: 1x8
insertion loss (dB):10.7
PDL (dB): 0.3
Uniformity (dB): 0.8
return loss (dB): 50
directivity (dB): 55
temperature range (C): -40~+75
storage temperature (C): -40~+85
NOTE: The above parameter is for splitter with connector, if w/o connector,
insertion loss will reduce by 0.2dB.

Package Includes:
1x SC UPC PLC 1 x 4 Optical Terminal Box
barang persis seperti difoto
note: Produk ini Merupakan Salah Satu produk Import dan datang dengan quantity sangat banyak serta kita tidak mengecek keseluruhan produk maka produk kita non garansi dan dikirim tanpa proses pengecekan. Membeli berarti setuju dengan ketentuan kami

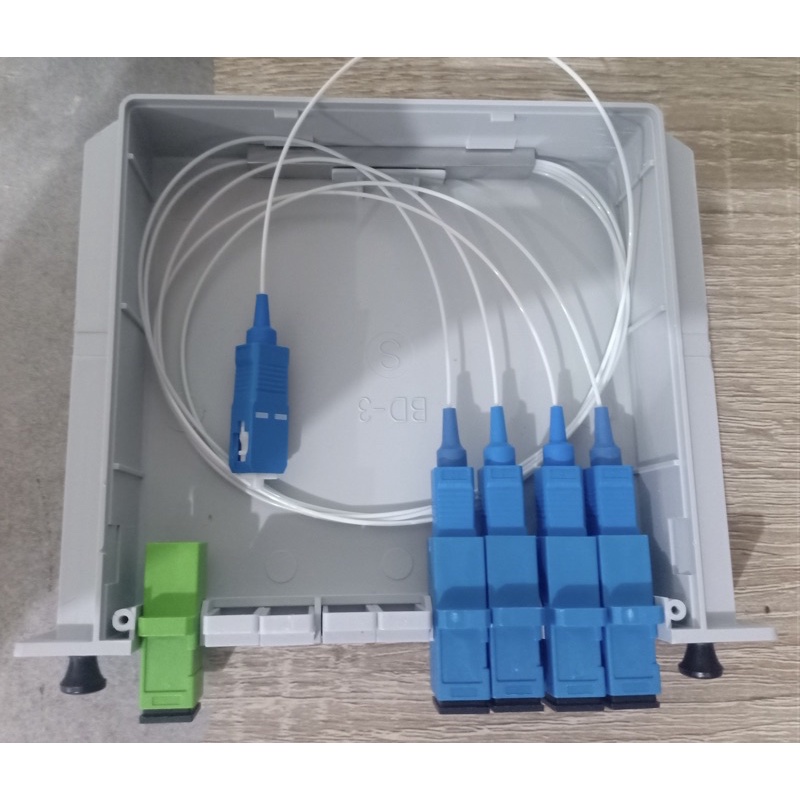

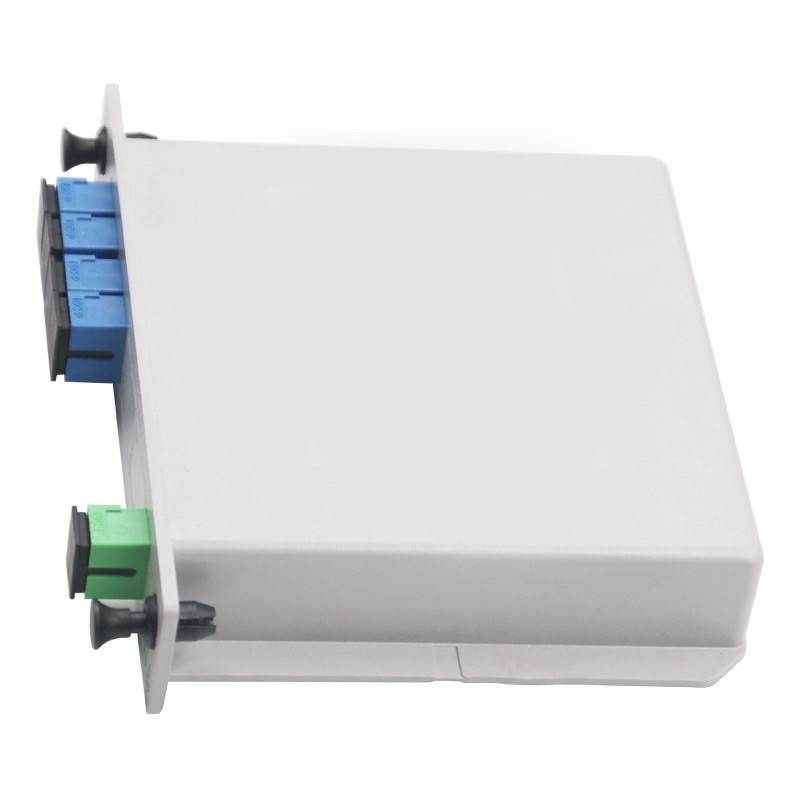

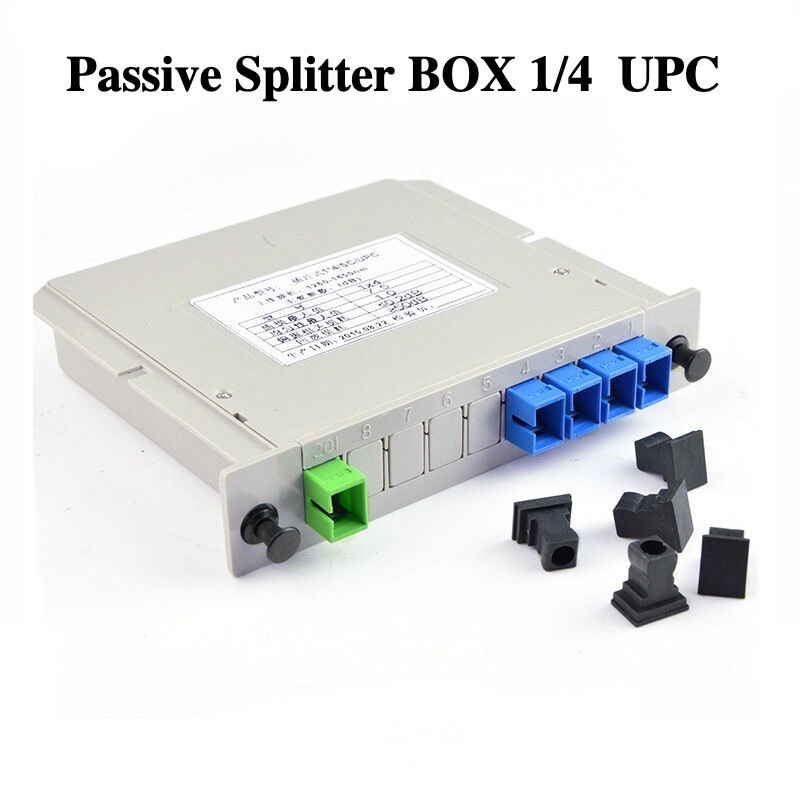

Gambar produk
