Detail Passive splitter pasif spliter

Description

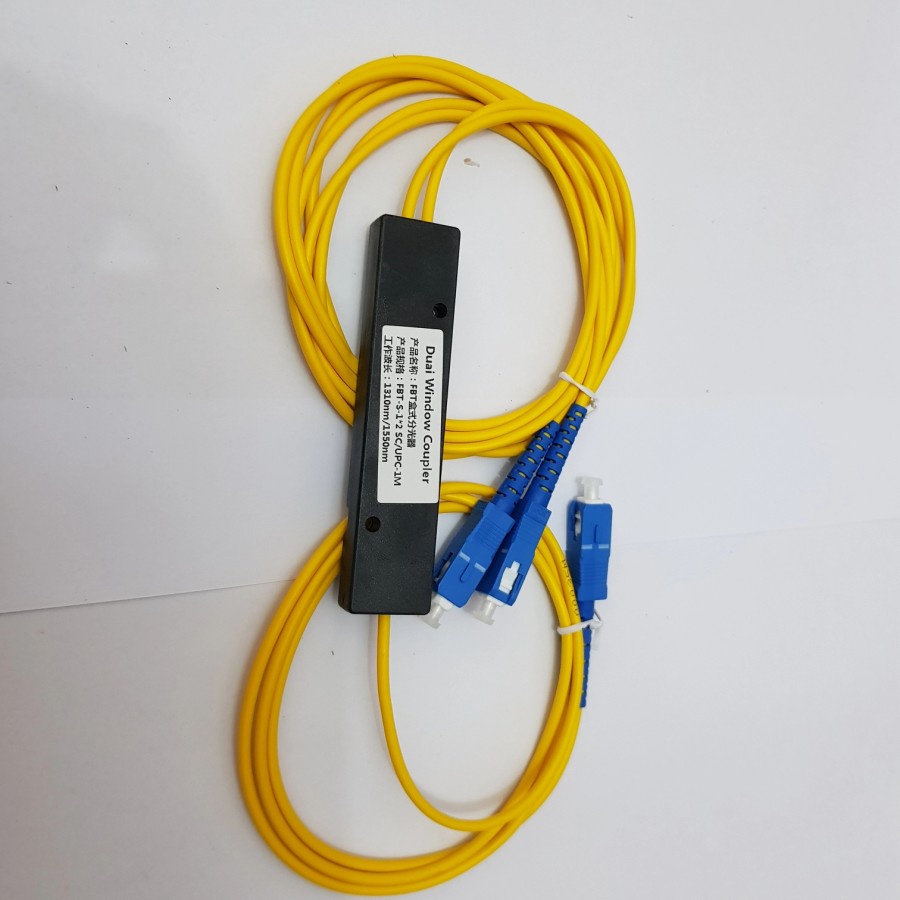

FBT splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology. It has small size, high reliability, cheap cost and good channel-to-channel uniformity, and it is widely used in PON networks to realize optical signal power splitting. It can do different split ratio,from 50/50 to 95/5.

Feature

Materials in line with the IEC standard connector

Distribution frame in the ODF to achieve sub-line

Low PDL

Compact Design

Low Insertion loss

Good channel-to-channel uniformity

Good direction,Good interchangeability

Application

CATV Systems & Fiber Optic Sensors

Fiber Optic communication system

Local Area Network

Testing instruments

Specification

+

Type1x2 single mode FBT couplerOperating Wavelength(nm)1310/1550nmSplit Ratiofrom 50/50 to 5/95Polarization Dependent Loss(dB)0.2Directivity(dB)APC55,UPC50Fiber Length (m)1.0(0.1)or customizedConnector TypeSC/LC/SC/ST etc
