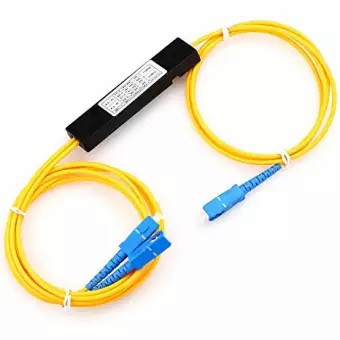

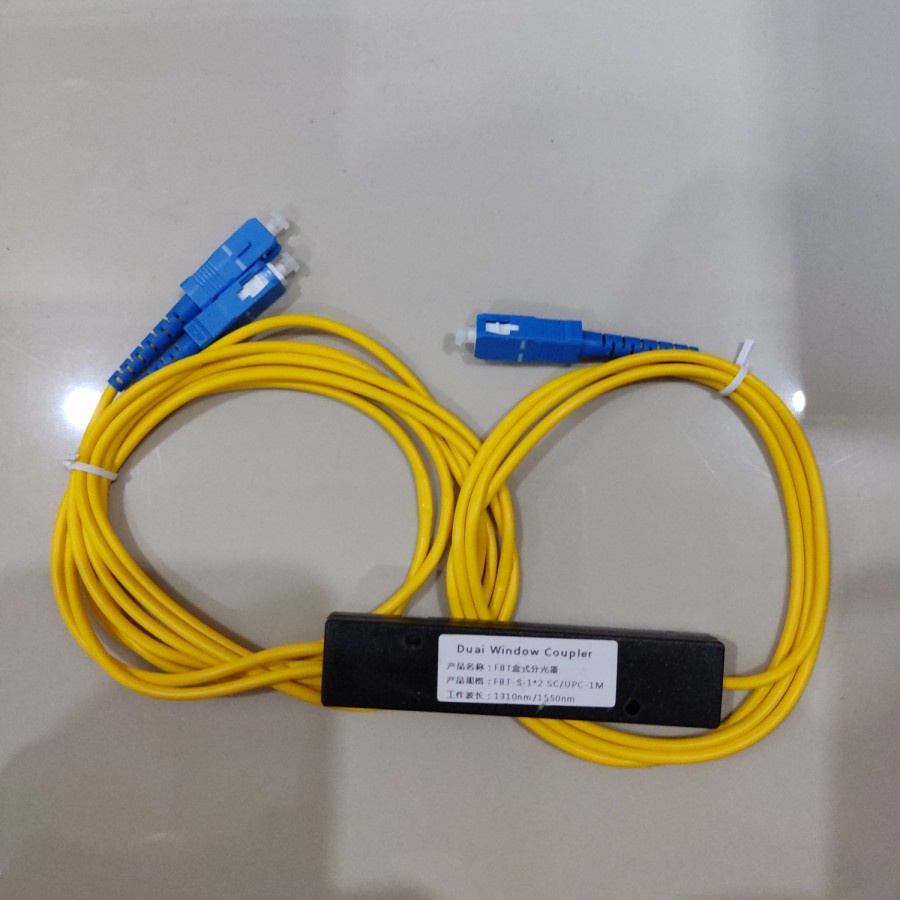

Passive Splitter Fiber Optic 1:2 SC/UPC

Detail Passive Splitter Fiber Optic 1:2 SC/UPC

Ready Passive Splitter Fiber Optic 1:2 SC/UPC

The PLC splitter products are of highest quality and highest reliability standard (ISO-9001 and Telcordia-1221-CORE compliant). The products are compact with beautiful appearance. It's spectral uniformity is ideal for passive optical network.

Features:
1.The loss is insensitive to light wavelength and can meet the transmission needs of different wavelength.
2.The signal can be distributed uniformly to the user.
3.Compact structure, small volume, can be directly installed in the existing various junction box, do not need to leave a large installation space.
4.The single device has many branch channels, which can reach more than 32 channels.
5.Multi-way cost is low, the more roads, the more obvious cost advantage.

Specifications:
Condition: 100% Brand New
Length: Approx. 220 cm
Model: 1 part 2 taper
Port number 1 (dB): 3.27dB
Port number 2: insert loss (dB) : 3.32db
Weight: Approx. 45 g

Application:
- Fibre Optical Communication System
- FOLAN Fiber Optic LAN
- CATV
- FTTH
- FOS
- Measuring Instrument
Package Included:

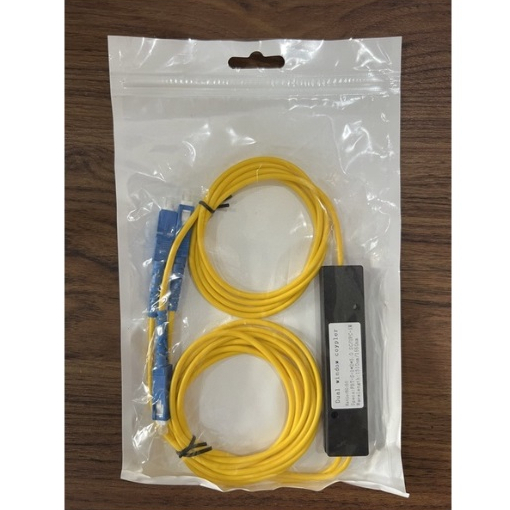

1 x Optical Splitter
