PASSIVE 8 PORT POE INJECTOR / PASIF POE IP CCTV CAMERA VOIP ROUTER
Cocok untuk IP Camera, WIFI ROUTER, VOIP Telephone, UBNT dsb.

Tidak termasuk adaptor

DC jack: 5.5mm x 2.1mm and Green DC socket
POE port = 4 5 positive 7 8 negative
1 2 3 6 data
LAN port = 1 2 3 6 data
Note: The green terminal is connected to the DC jack supply voltage

Network cable equipment to do line standards:
Pass through the 568B; (line, that is, straight line, standard 568B: both ends of the line order, from left to right line order is: white orange. Orange. White green. Blue. White blue. Green.

INPUT CHARACTERISTICS:
Input voltage:
Rated voltage (Nominal Voltage): 12-48V DC
Input Current: 0-10A
Input data transfer: 1/2/3/6 feet
Transmission rate: 10 / 100Mbps
OUTPUT CHARACTERISTICS:
Output voltage: 12-48V DC
Single port output DC maximum (Input Current):
Output data transmission: 1/2/3/6 feet
Output transmission rate: 10 / 100Mbps
Output transmission power: 4/5 positive 7/8 negative

Optional power supplies from 12v to 48v
Ideal for IP Cameras, VOIP phone, WiFi
ROHS approval

Features:
8 port Power Over Ethernet (POE) DC Power Injector Injector/Splitter is passive Power-over-Ethernet device that provides DC power for eight devices. It is compatible with equipment supporting the standard PoE pin out (Pins 4&5 Power + / Pins 7&8 Power -)

Power-over-Ethernet eliminates the need for an AC outlet at each end device location. Only a single Ethernet cable is run to each device instead of separate power and data cables. The injector is typically installed near the Ethernet hub and the splitter near the end device for non POE enabled devices in that the unit can be used as either an injector or as a splitter. When used as an injector the device sends DC power.

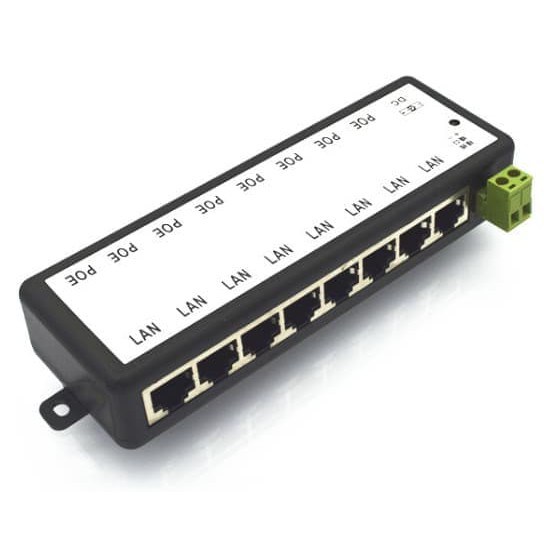

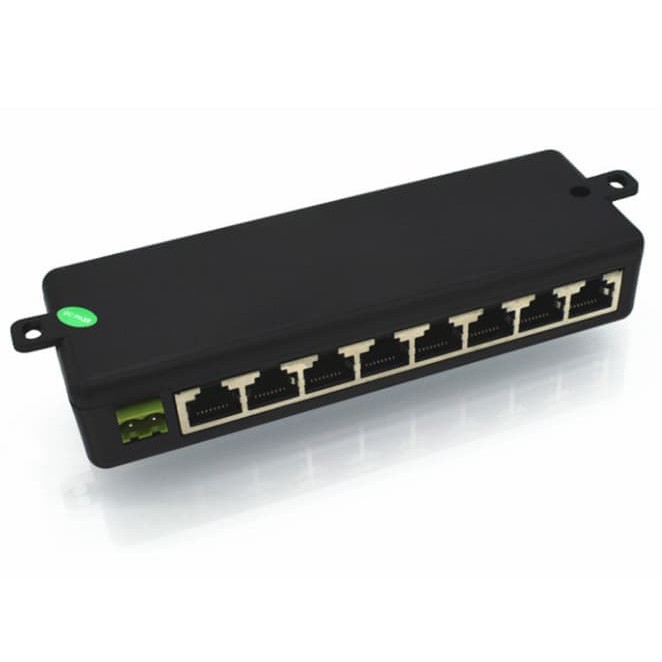

Gambar produk
