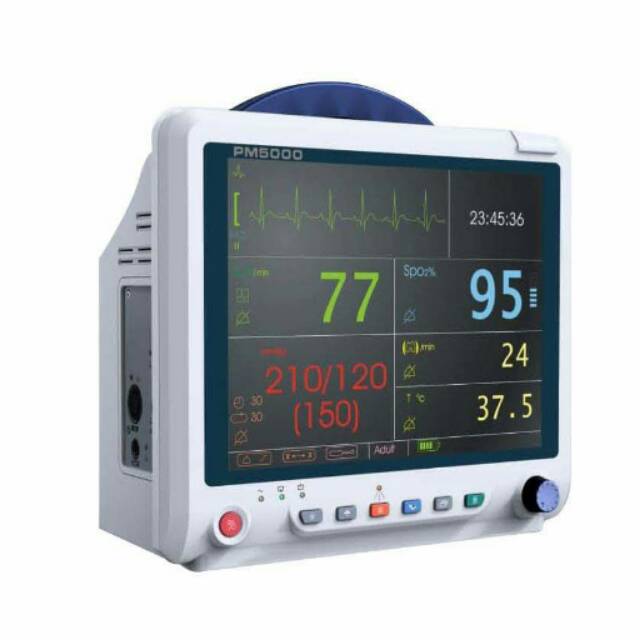

PASIEN MONITOR PM5000, PATIENT MONITOR

Detail PASIEN MONITOR PM5000, PATIENT MONITOR

Features: 12.1' inch colored, high definition ( 800 x 600) TFT screen Parameters: SPO2, ECG, NIBP, TEMP, RESP Suitable for DEWASA, pediatric and neonatal patients 72 hours graphic and tabular trends of all parameters 32 seconds full-disclosure waveform review 500 NIBP measurement data can be stored and recalled Storage and recall of 500 SpO2 measurement data Built-in rechargeable Lithium battery Equiped with internal printer Technical Specifications: 1. Parameters: SPO2, ECG, NIBP, TEMP, RESP, PR, RR. Optional Function: ETCO2 and internal printer. 2. Power supply AC power adapter, AC 85~ 265V/ 50Hz/ 60Hz; lithium battery. 3. SpO2 Range: 0% -100% . Accuracy: 2% at 70-100% ; < 70% , undefined. 4. Pulse rate Range: 30-250bpm. Accuracy: 2bpm at 30-250bpm. 5. NIBP Method: Oscillometry Modes: Manual/ Auto/ Comtinuous Auto measure time: Adjustable Measurement range: 10-270mmHg 6. ECG Lead mode: 3-lead or 5-lead Lead selection: I; II; III, avR; avF; V Heart rate range: DEWASA: 15-300bpm; Pediatric/ Neonatal: 15-300bpm ECG waveform: 2 channals Accuracy: 1 bpm or 1% , which is greater S-T segment detection; measurement range: -2.0mv~ 2.0mv Alarm: Yes, audible and visual alarm, alarm events review 7. Respiration Method: RA-LL impedance Range: DEWASA: 0-120rpm; pediatric/ neonatal: 0-150rpm Apnca alarm: Yes 8. Temperature Range: 0-500C Accuracy: 0.10C Channal: Dual-channel Environment Specification: Operating Temp.: 0 to 45 c Storage Temp.: -20 to + 60 c Relative Humidity: 30 to 95% ( Operating) , 10 to 95% ( Storage) Standard Package: PM5000 Main Uint DEWASA SpO2 Probe 5-leads ECG Cable Electrodes NIBP Cuff for DEWASA NIBP Extension Tube Power cable Battery user manual
