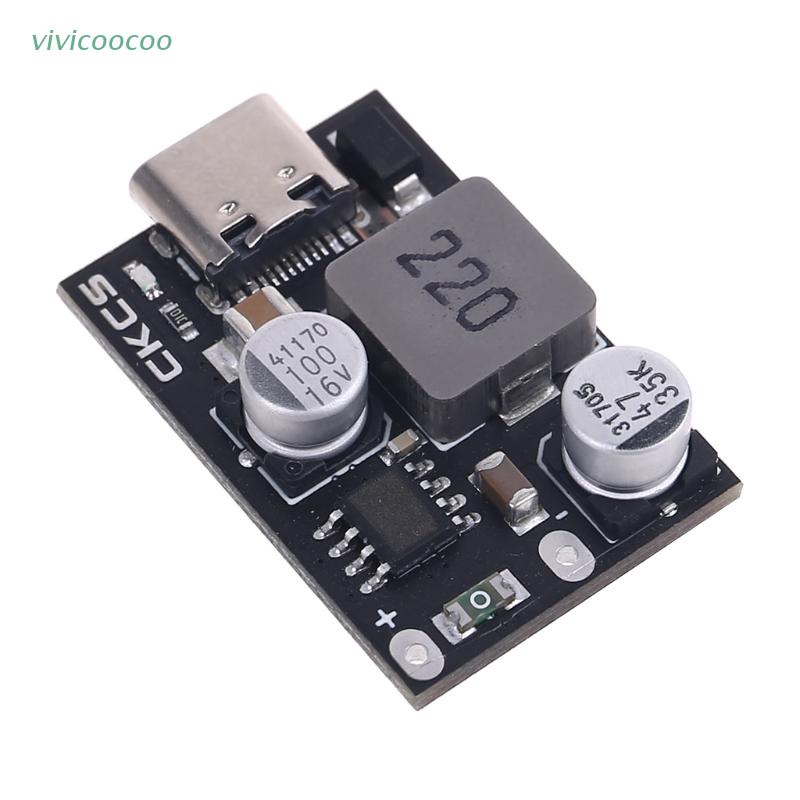

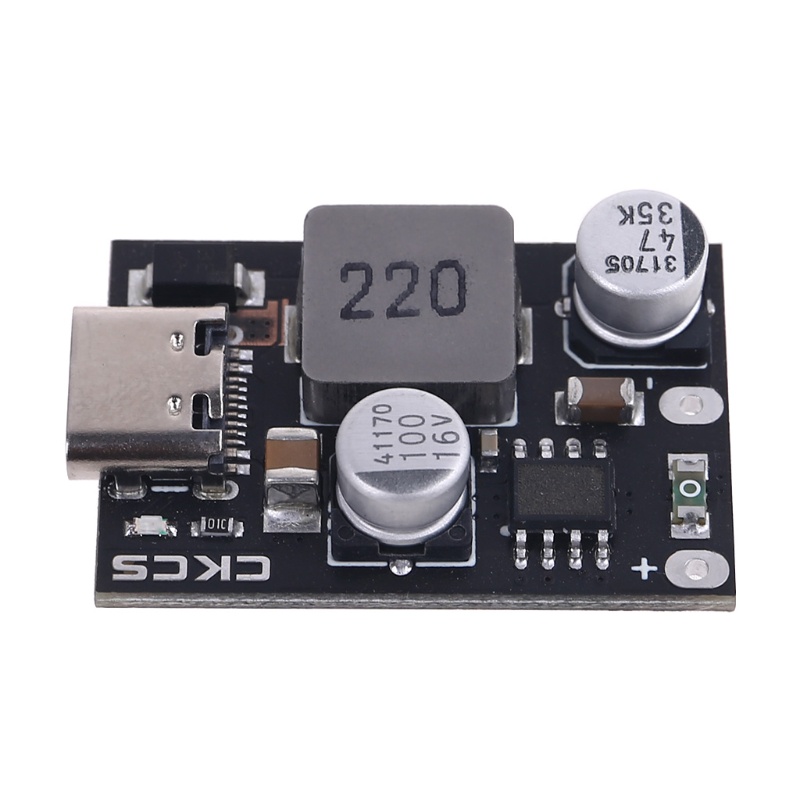

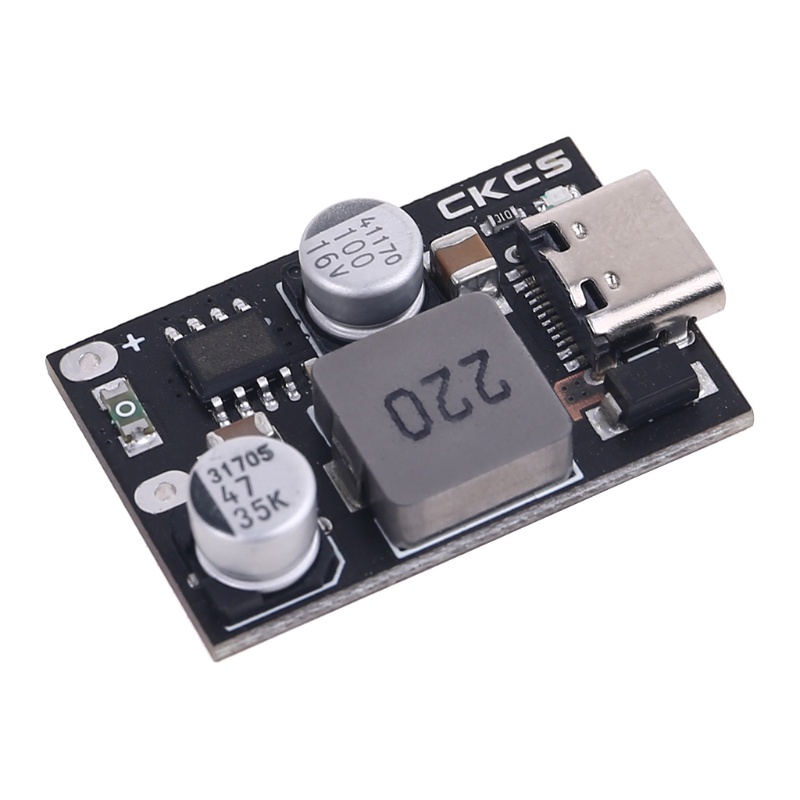

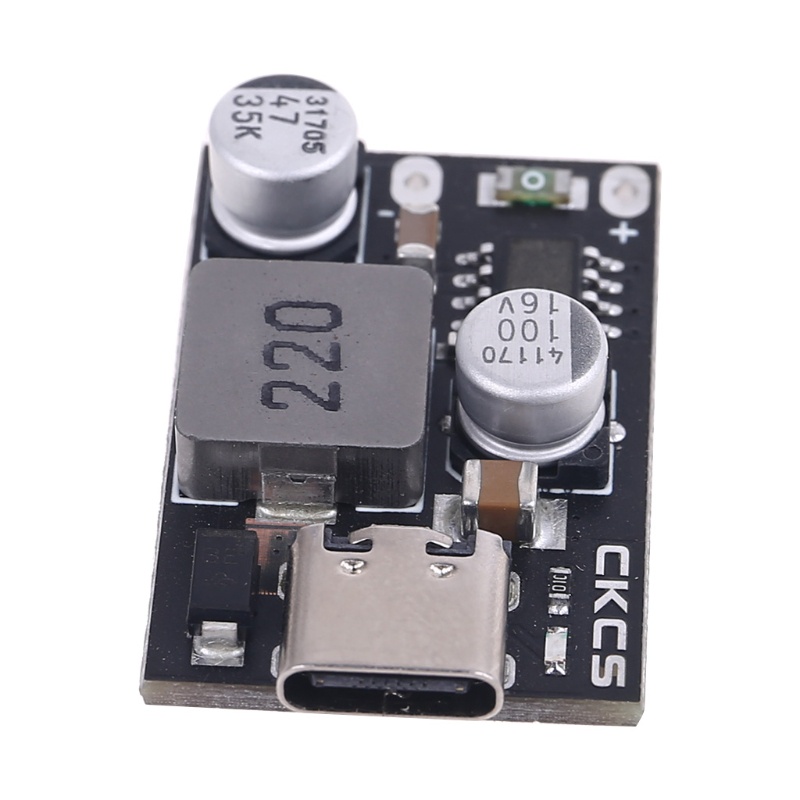

Papan Sirkuit Modul Pengisian Cepat Tipe C Usb Qc3.0 Qc2.0 Pd3.0 Dc

Detail Papan Sirkuit Modul Pengisian Cepat Tipe C Usb Qc3.0 Qc2.0 Pd3.0 Dc

#Type-C #USB #QC3.0 #QC2.0 #PD3.0 #Quick #Charge #Fast #Charging #Board #Circuit #Module #DC
Type-C USB QC3.0 QC2.0 PD3.0 Quick Charge Fast Charging Board Circuit Module DC
100% brand new and high quality.
Features:
Output voltage cable compensation function
Support multiple fast charging protocols
Input overvoltage and undervoltage protection
Input overcurrent protection
Output overcurrent, short circuit protection
Machine over temperature protection

Support fast charge agreement:
Support DCP protocol, BC1.2
Support Huawei Fast Charge Protocol FCP/SCP
Support Huawei Fast Charge Protocol AFC
Support QC2.0 and 3.0

Specifications:

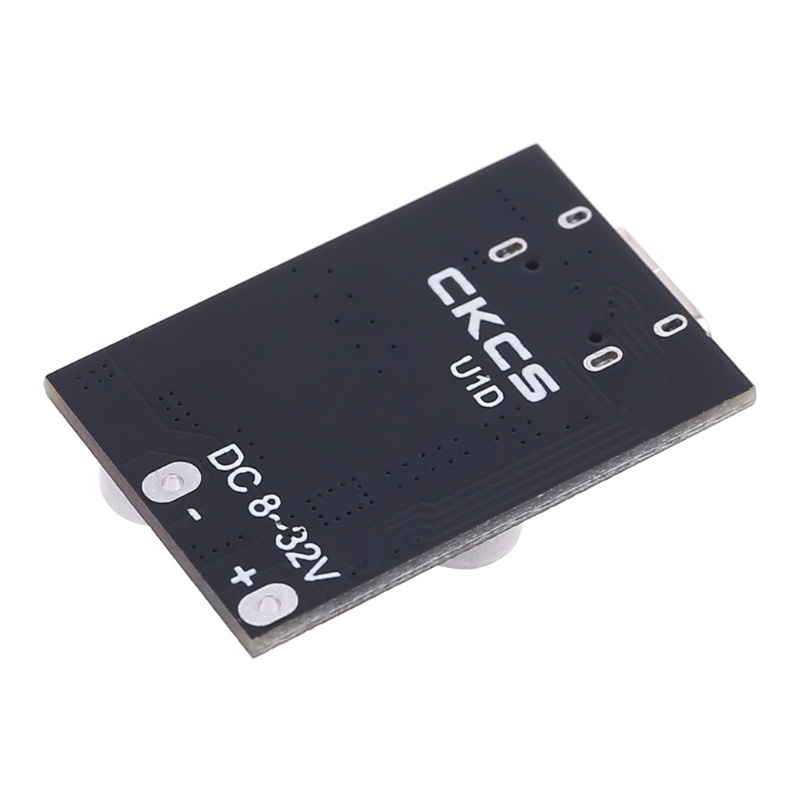

Input voltage range: 8V-32V
Output voltage: Automatically adjust between 3-12V after triggering fast charge
Output power: up to 20W (5V/3.4A, 9V/2.5A, 12V/2A, etc.)
Conversion efficiency: 90%-97%
Material: Metal and Plastic

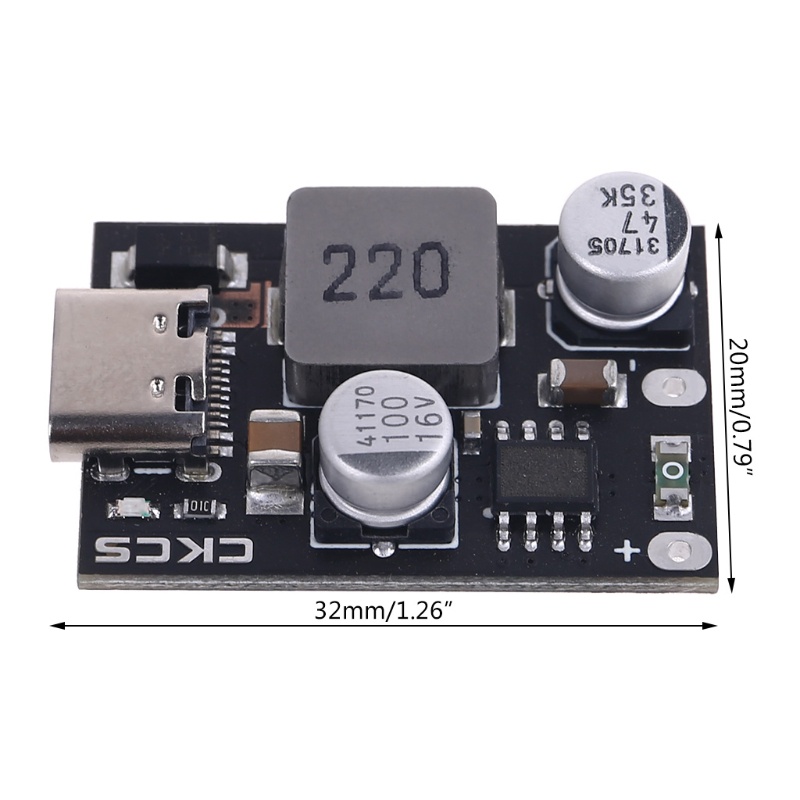

Size: approx.32x20mm/1.26x0.79in
Color: As pictures shown
Quantity: 1 Pc

Note:
No retail package.
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Includes:
1 x Charging Board Circuit Module (other accessories demo in the picture is not included.)

Gambar produk
