Papan power supply 25A single AC-DC audio amplifier rectifier filter

Detail Papan power supply 25A single AC-DC audio amplifier rectifier filter

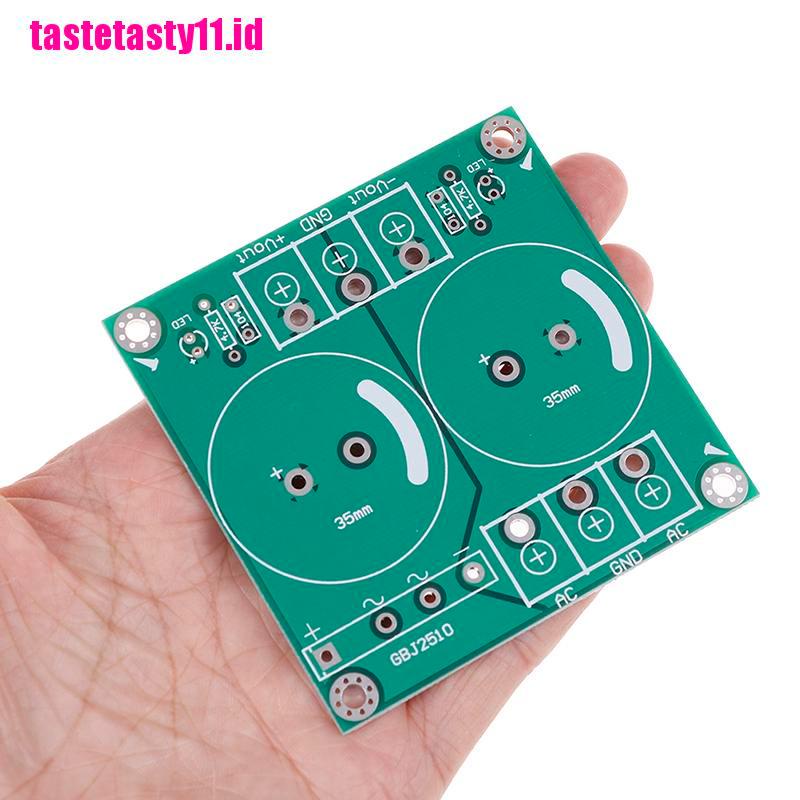

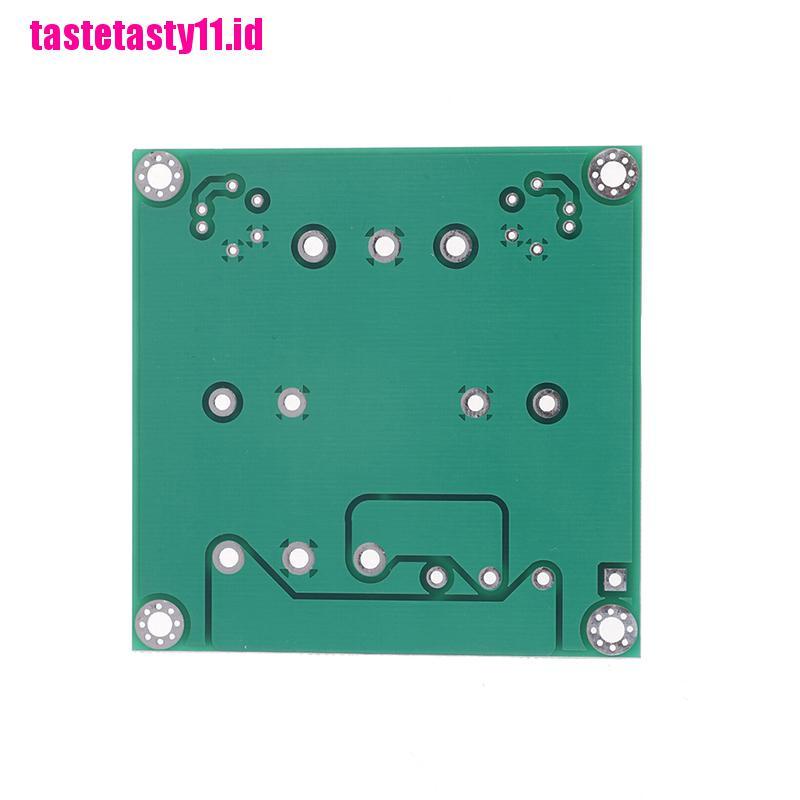

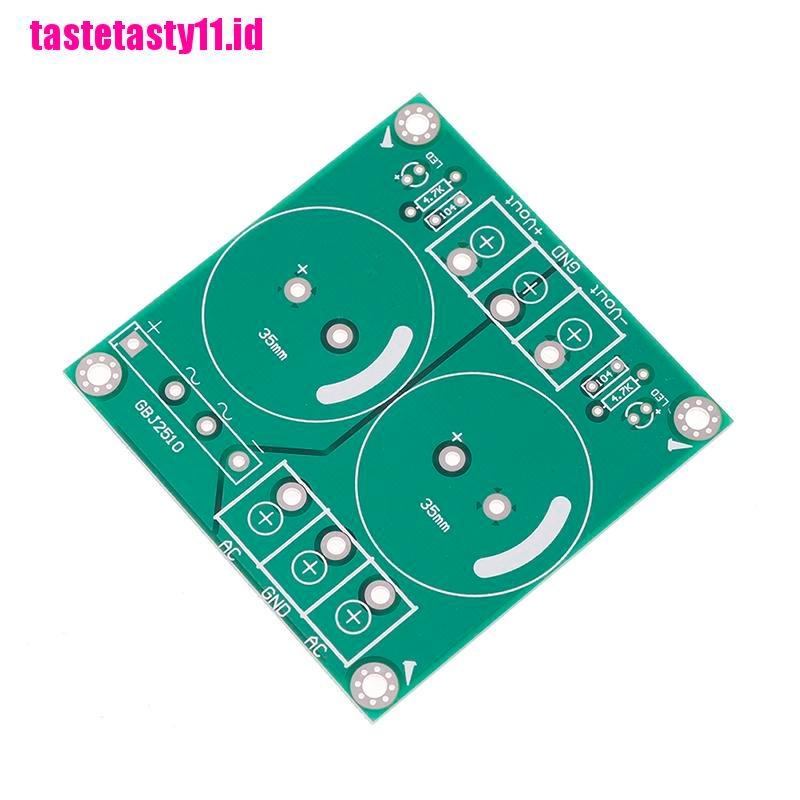

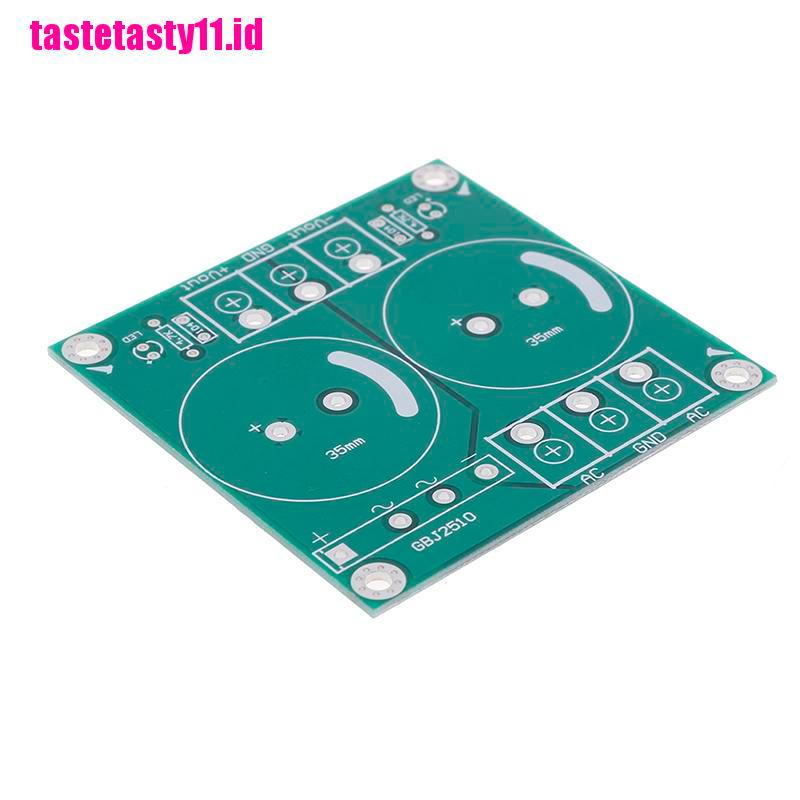

Note: this item is only one bare board, not contain other parts.

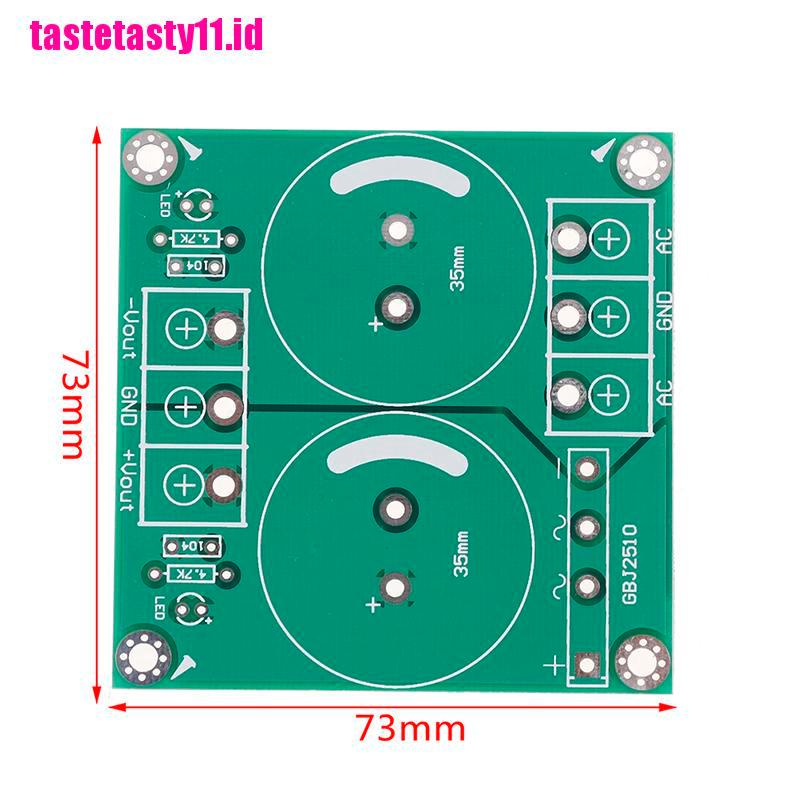

Material: FR-4; Size: 73 x 73 mm (Length x Width);Thickness:1.6mm
Surface finishing : double-sided solder resist for maximum durability.

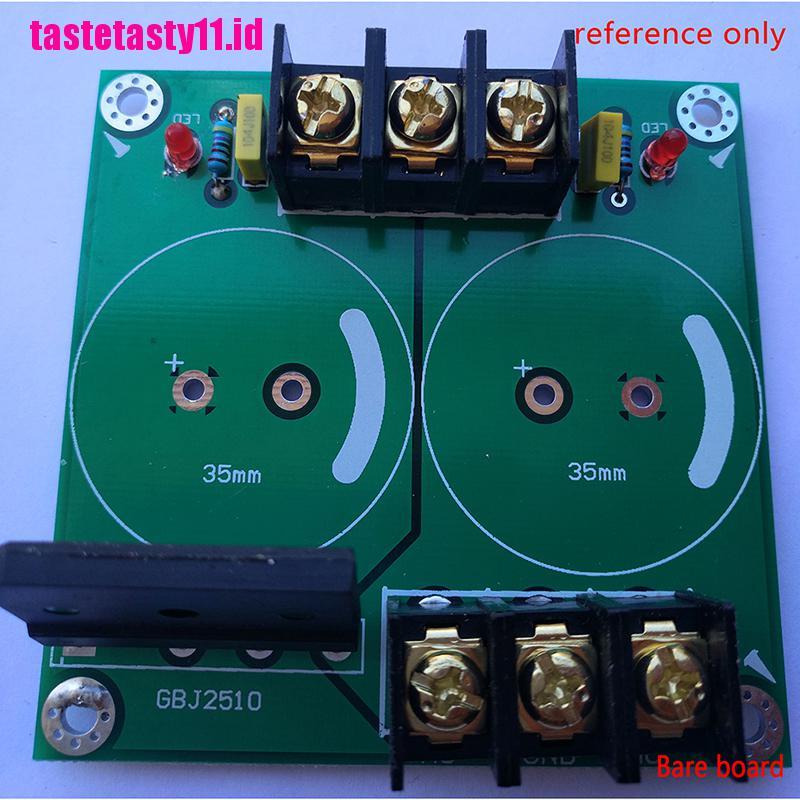

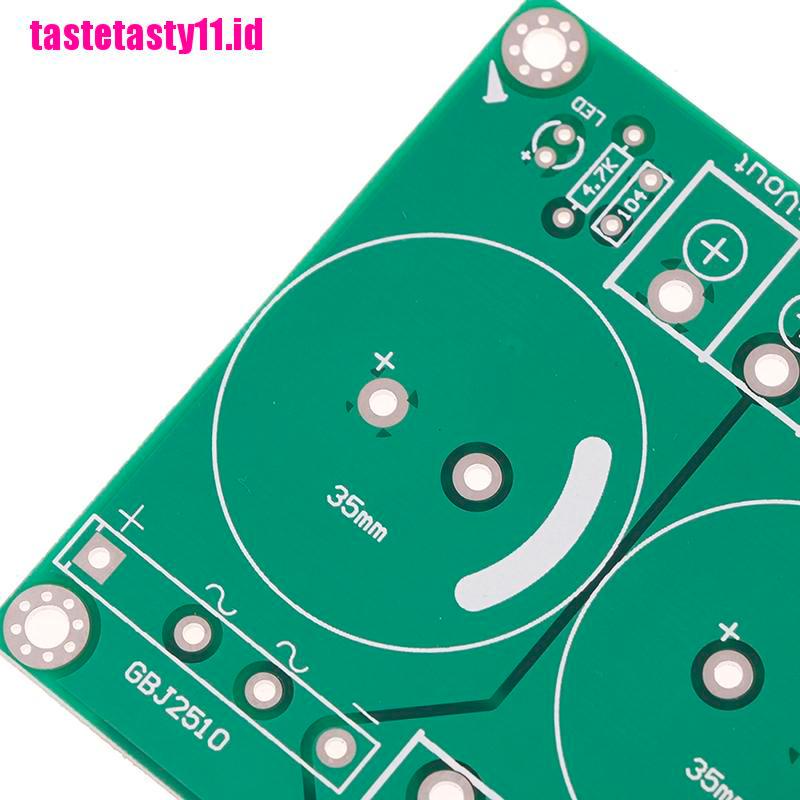

Max 25A bridge rectifier/2PC Capacitors (30mm or 35mm Diameter)

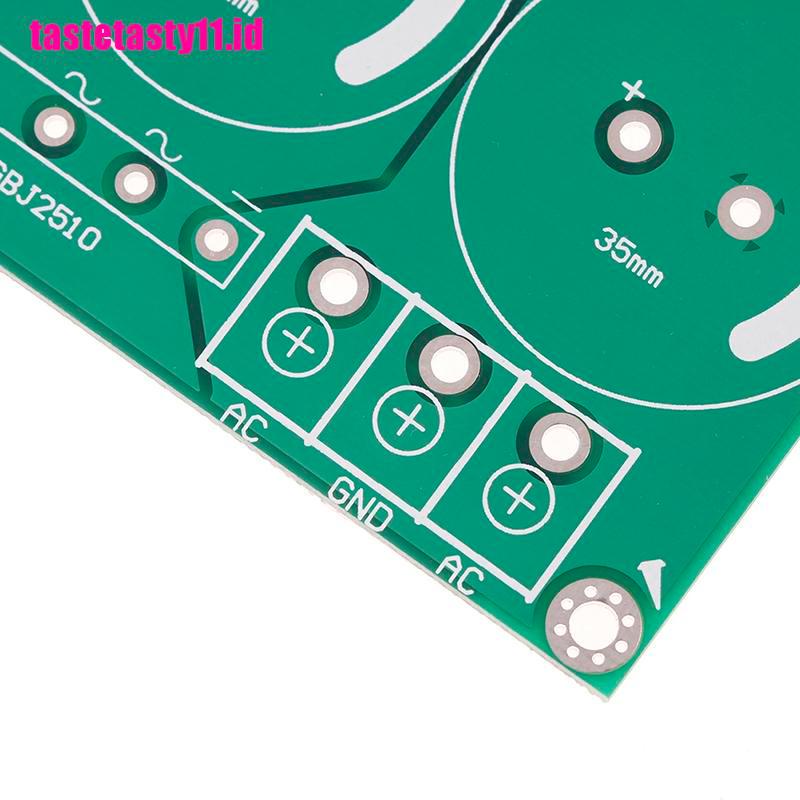

AC input connector wiring:
AC: AC transformer connection line
GND: Ground connection transformer
Note: Single-voltage transformer connected only either one AC and GND, an AC remaining empty, still double the output voltage!
DC output interface wiring:
-Vout: Negative electrical outlet
GND: ground
+Vout: positive output
Package Included: 1 x Bare PCB
